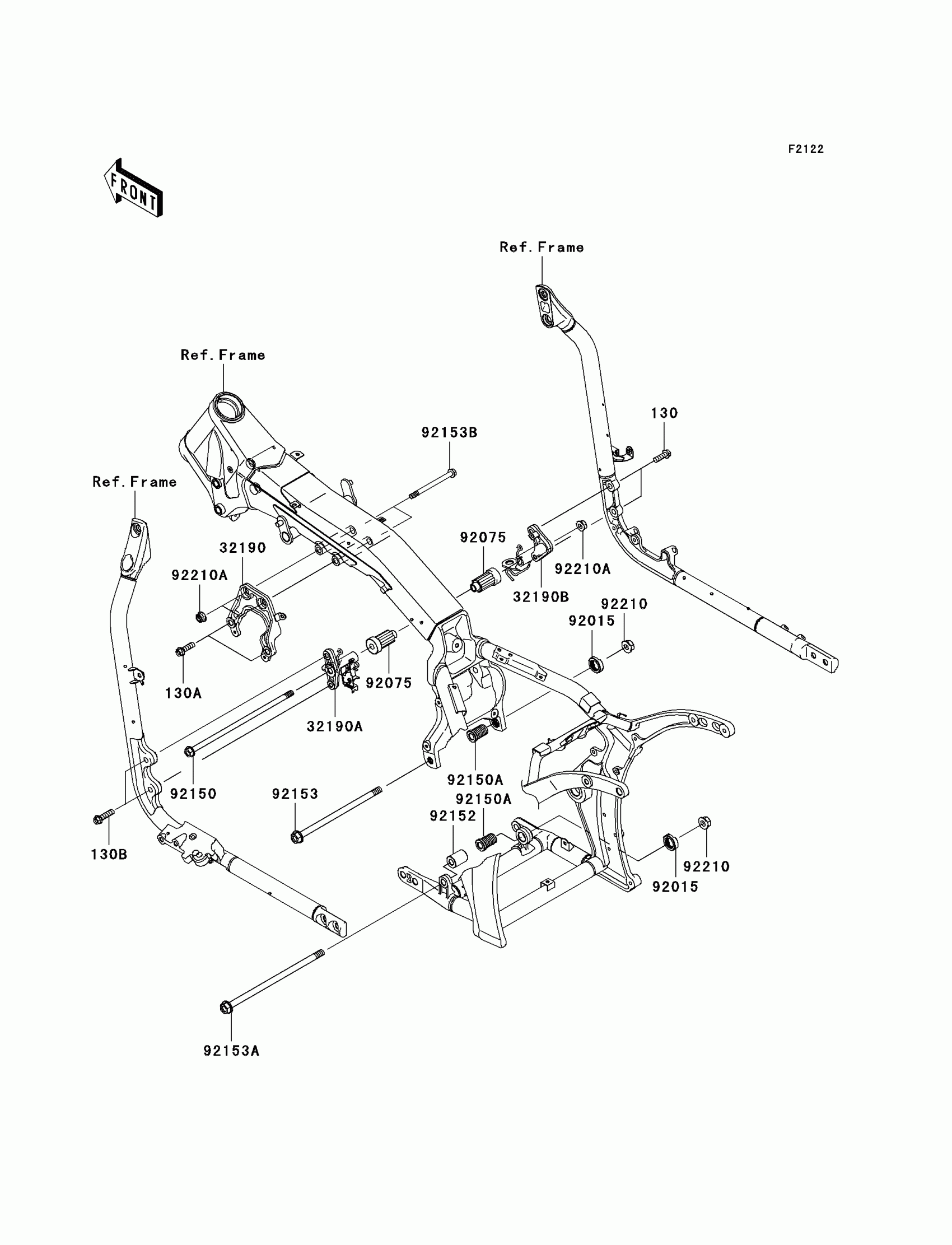

Kawasaki Vulcan 2000 Engine Mount(A1) Diagram

Description

Price

130

BOLT-FLANGED,10X30

130L1030

$6.10

130A

BOLT-FLANGED,10X35

130L1035

$5.81

130B

BOLT-FLANGED,10X40

130L1040

$3.17

32190

BRACKET-ENGINE,UPP

32190-0054

$97.70

32190A

BRACKET-ENGINE,FR,LH

32190-0116

$90.08

32190B

BRACKET-ENGINE,FR,RH

32190-0117

$90.08

92015

NUT,ENGINE MOUNT,22MM

92015-1846

$21.77

92075

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$31.88

92150

BOLT,FLANGED,10X295

92150-1223

$17.63

92150A

BOLT,ENGINE MOUNT,22X38

92150-1471

$38.13

92152

COLLAR,12.5X26X35.5

92152-0056

$34.09

92153

BOLT,FLANGED,12X237

92153-0390

$38.77

92153A

BOLT,FLANGED,12X275

92153-0391

$40.46

92153B

BOLT,FLANGED,10X117

92153-0664

$21.44

92210

NUT,LOCK,FLANGED,12MM

92210-0110

$10.56

92210A

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35
