Cowling(BBF/BCF)

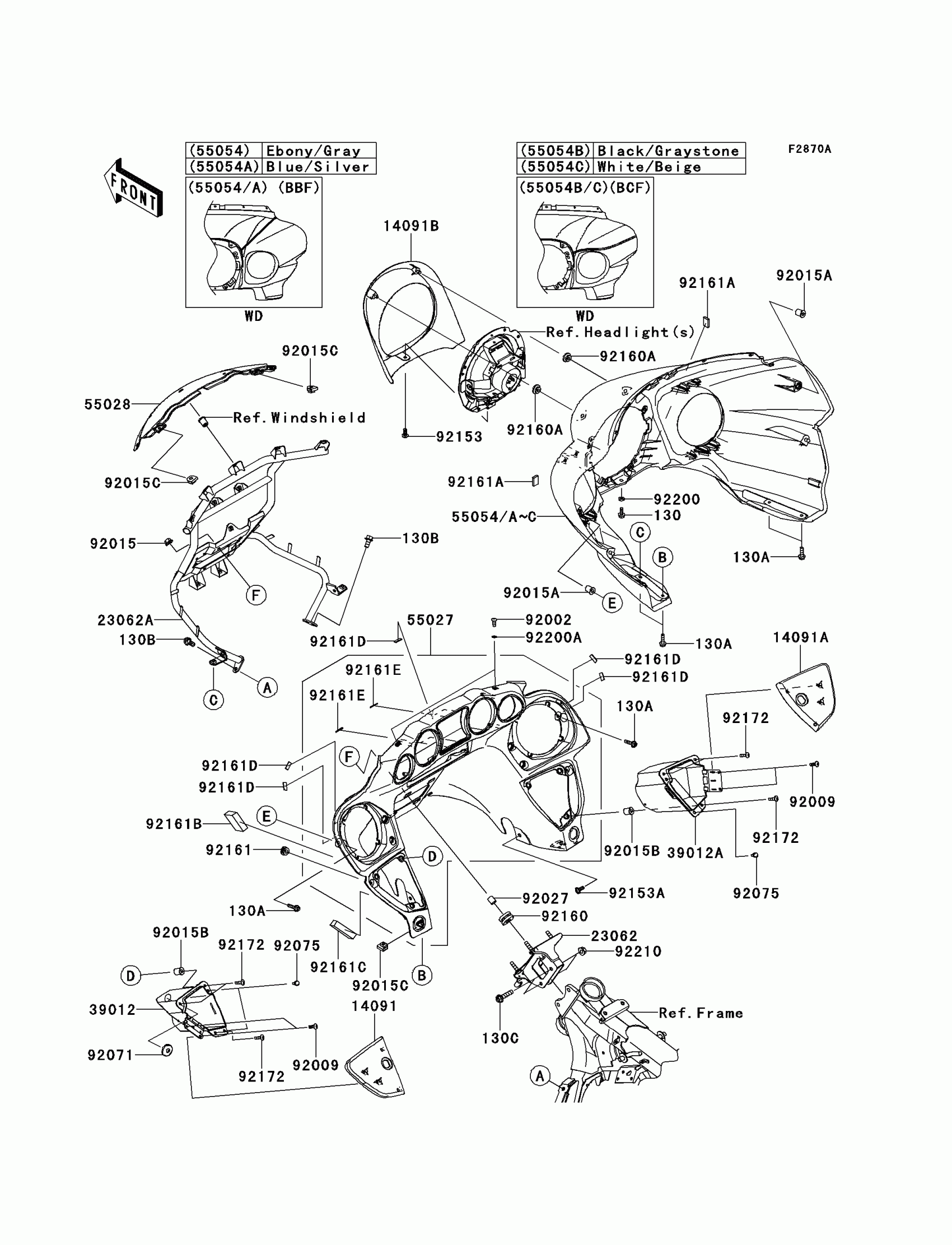

Kawasaki VULCAN® 1700 VOYAGER® ABS Cowling(BBF/BCF) Diagram
#
130
BOLT-FLANGED,6X16
130AA0616
$0.56
130A
BOLT-FLANGED,6X22
130BB0622
$3.67
130B
BOLT-FLANGED,8X16
130BB0816
$1.71
130C
BOLT-FLANGED,8X35
130BB0835
$4.45
14091
COVER,STORAGE CASE,LH,F.BLACK
14091-0946-6Z
$23.25
14091A
COVER,STORAGE CASE,RH,F.BLACK
14091-0947-6Z
$23.25
14091B
COVER,HEAD LAMP
14091-0948
$256.24
23062
BRACKET-COMP,HEAD PIPE
23062-0106
$96.20
23062A
BRACKET-COMP,COWLING
23062-0720
$378.50
39012
CASE-STORAGE,LH
39012-0027
$57.20
39012A
CASE-STORAGE,RH
39012-0028
$57.20
55027
COWLING-ASSY,UPP,INNER,BLACK
55027-0063-6Z
$633.02
55028
COWLING,CNT,F.BLACK
55028-0227-6Z
$55.06
55054B
COWLING,UPP,OUTER,BLACK/GRAY
55054-5268-33S
$1,292.89
92002
BOLT,6X14
92002-1700
$6.27
92009
SCREW,TAPPING,5X10
92009-1332
$3.92
92015
NUT,FLANGED,8MM
92015-1406
$4.45
92015A
NUT
92015-1700
$8.58
92015B
NUT,WELL,5MM
92015-1757
$7.29
92015C
NUT,CLIP,6MM
92015-1904
$6.57
92027
COLLAR,8.8X12X14
92027-012
$6.22
92071
GROMMET,TAIL LAMP WIRE
92071-079
$3.72
92075
DAMPER,6X10X15
92075-1808
$1.39
92153
BOLT,SOCKET,6X16
92153-0817
$2.15
92153A
BOLT,SOCKET,6X15
92153-1451
$1.78
92160
DAMPER
92160-1007
$5.52
92160A
DAMPER
92160-1613
$3.74
92161
DAMPER
92161-0317
$3.39
92161A
DAMPER
92161-0717
$0.88
92161B
DAMPER
92161-0784
$2.75
92161C
DAMPER
92161-0785
$2.75
92161D
DAMPER
92161-0965
$1.63
92161E
DAMPER,3X25X0.3
92161-0996
$0.85
92172
SCREW,5X18
92172-0428
$0.88
92200
WASHER,6.5X12X2
92200-0511
$2.75
92200A
WASHER,6.2X10X1
92200-1465
$1.59
92210
NUT,FLANGED,8MM
92210-0004
$5.38
55054C
COWLING,UPP,OUTER,WHITE/BEIGE
55054-5271-33V
$1,292.89
