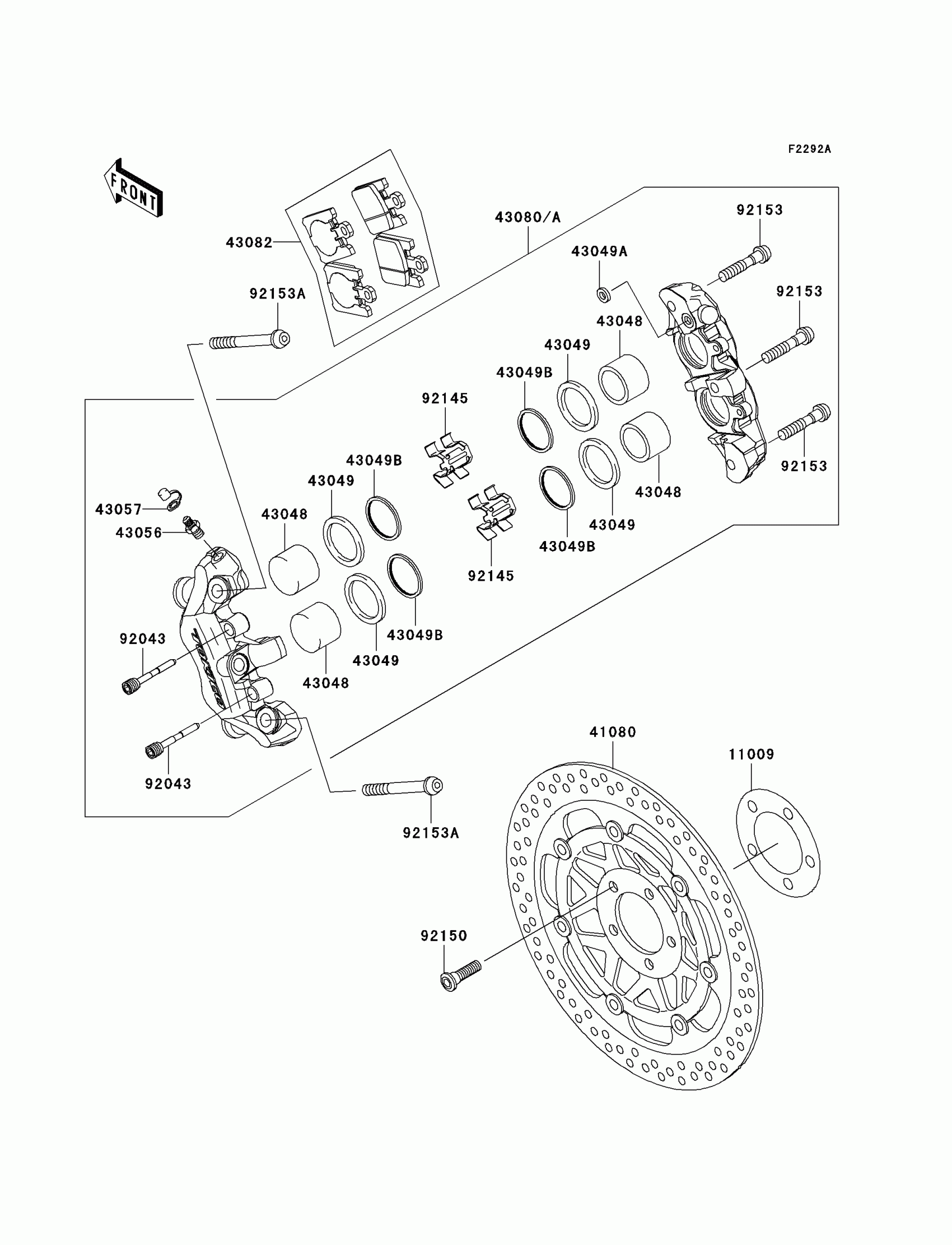

Kawasaki Vulcan 1600 Mean Streak Front Brake(B2) Diagram

Description

Price

11009

GASKET,DISC PLATE

11009-1754

$19.15

41080

DISC,FR,SILVER+DISC-SILVER

41080-0072-5D

$450.04

43048

PISTON-CALIPER

43048-0004

$76.82

43049

PACKING,PISTON

43049-0003

$13.33

43049A

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$6.16

43049B

PACKING,WIPER

43049-1107

$11.06

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-0017-GN

$426.68

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

43080-0018-GN

$426.68

43082

PAD-ASSY-BRAKE

43082-0031

$75.05

92043

PIN,PAD

92043-1709

$8.36

92145

SPRING,PAD

92145-1568

$19.90

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,SOCKET,8X40

92153-0360

$6.18

92153A

BOLT,SOCKET,10X60

92153-0577

$6.81
