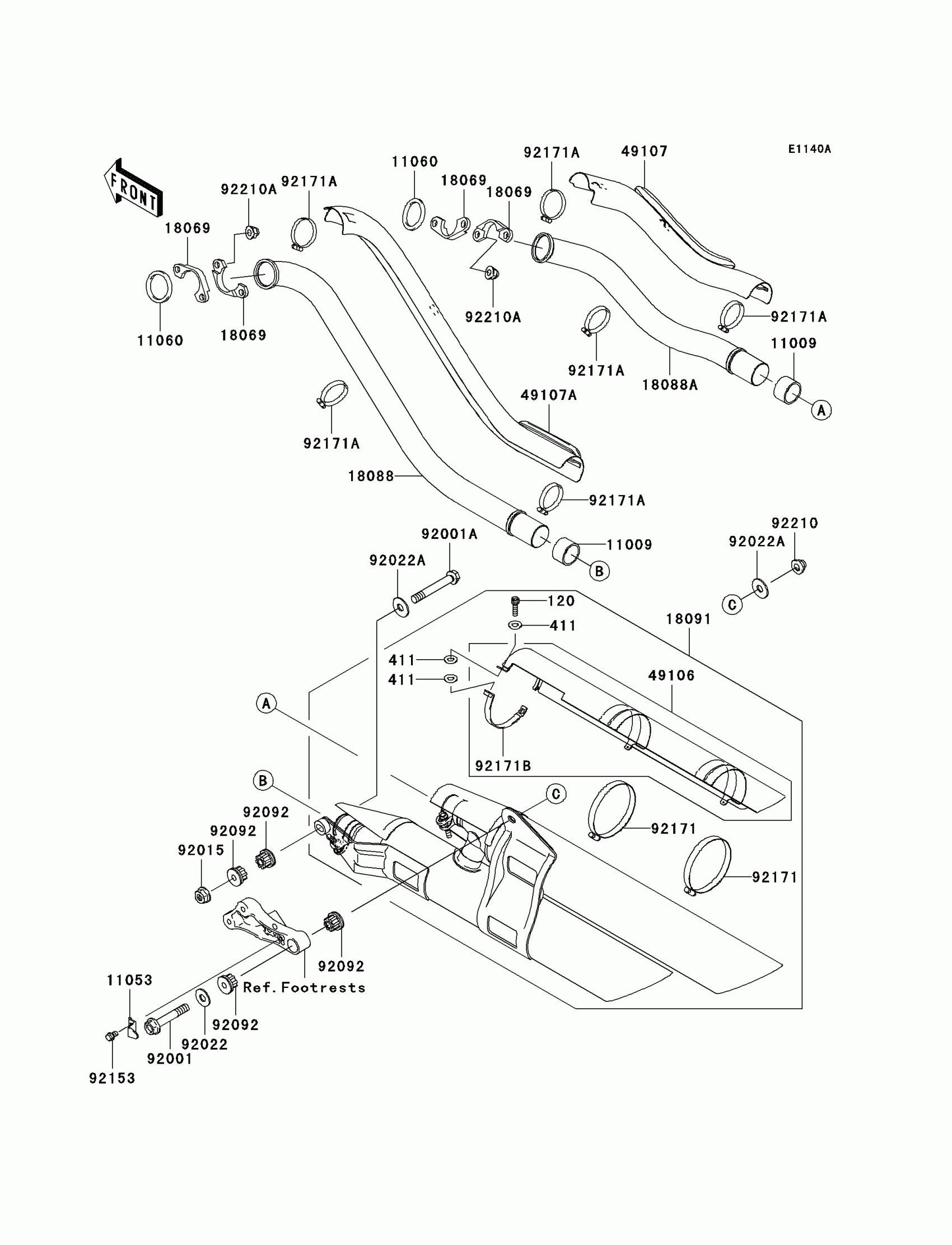

Kawasaki Vulcan 1600 Classic Muffler(s)(JKBVNKA1 4A010964-) Diagram

Description

Price

120

BOLT-SOCKET,6X20

120R0620

$3.92

411

WASHER-PLAIN,6MM

411S0600

$2.06

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$32.66

11053

BRACKET

11053-0267

$2.90

11060

GASKET,EXHAUST PIPE

11060-1119

$9.58

18069

HOLDER-EXHAUST PIPE

18069-1161

$35.53

18088

PIPE-EXHAUST,FR

18088-1246

$470.62

18088A

PIPE-EXHAUST,RR

18088-1247

$470.62

18091

BODY-COMP-MUFFLER

18091-0192

$1,025.22

49106

COVER-MUFFLER

49106-0007

$184.11

49107

COVER-EXHAUST PIPE,RR

49107-0010

$256.69

49107A

COVER-EXHAUST PIPE,FR

49107-0016

$241.37

92001

BOLT,FLANGED,10X60

92001-1617

$9.89

92001A

BOLT,FLANGED,10X70

92001-1618

$10.37

92015

NUT,10MM

92015-1356

$3.74

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92022A

WASHER,10.5X30X2.3,BLACK

92022-1302

$7.24

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

92153

BOLT,6X10

92153-0381

$2.80

92171

CLAMP

92171-0048

$22.62

92171A

CLAMP

92171-0072

$9.73

92171B

CLAMP

92171-0373

$22.62

92210

NUT,CAP,10MM

92210-1121

$4.22

92210A

NUT,CAP,8MM

92210-1132

$4.18
