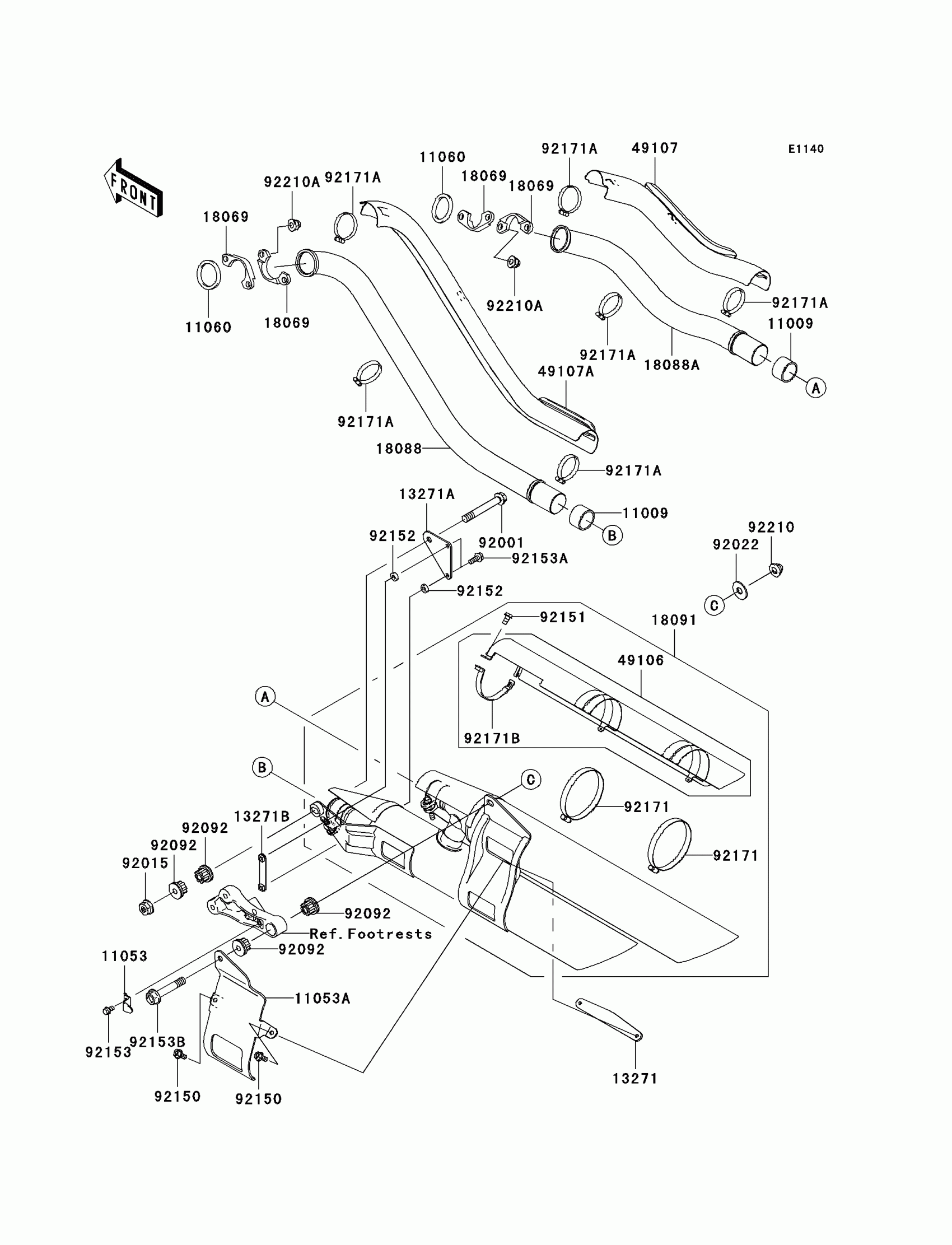

Kawasaki Vulcan 1600 Classic Muffler(s)(-JKBVNKA1 4A010963) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$32.66

11053

BRACKET

11053-0267

$2.90

11053A

BRACKET

11053-1373

$74.42

11060

GASKET,EXHAUST PIPE

11060-1119

$9.58

13271

PLATE

13271-0422

$8.74

13271A

PLATE

13271-0423

$12.32

13271B

PLATE

13271-0450

$9.33

18069

HOLDER-EXHAUST PIPE

18069-1161

$35.53

18088

PIPE-EXHAUST,FR

18088-1246

$470.62

18088A

PIPE-EXHAUST,RR

18088-1247

$470.62

18091

BODY-COMP-MUFFLER

18091-0057

$1,094.00

49106

COVER-MUFFLER

49106-0007

$184.11

49107

COVER-EXHAUST PIPE,RR

49107-0010

$256.69

49107A

COVER-EXHAUST PIPE,FR

49107-0016

$241.37

92001

BOLT,FLANGED,10X70

92001-1618

$10.37

92015

NUT,10MM

92015-1356

$3.74

92022

WASHER,10.5X30X2.3,BLACK

92022-1302

$7.24

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

92150

BOLT,FLANGED,6X12

92150-1826

$3.65

92151

BOLT,FLANGED-SMALL,6X20

92151-1252

Unavailable

92152

COLLAR,6.5X12.5X3.0

92152-0231

$3.32

92153

BOLT,6X10

92153-0381

$2.80

92153A

BOLT,FLANGED,6X16

92153-0713

$2.12

92153B

BOLT,10X57

92153-0741

$6.13

92171

CLAMP

92171-0048

$22.62

92171A

CLAMP

92171-0072

$9.73

92171B

CLAMP

92171-0373

$22.62

92210

NUT,CAP,10MM

92210-1121

$4.22

92210A

NUT,CAP,8MM

92210-1132

$4.18
