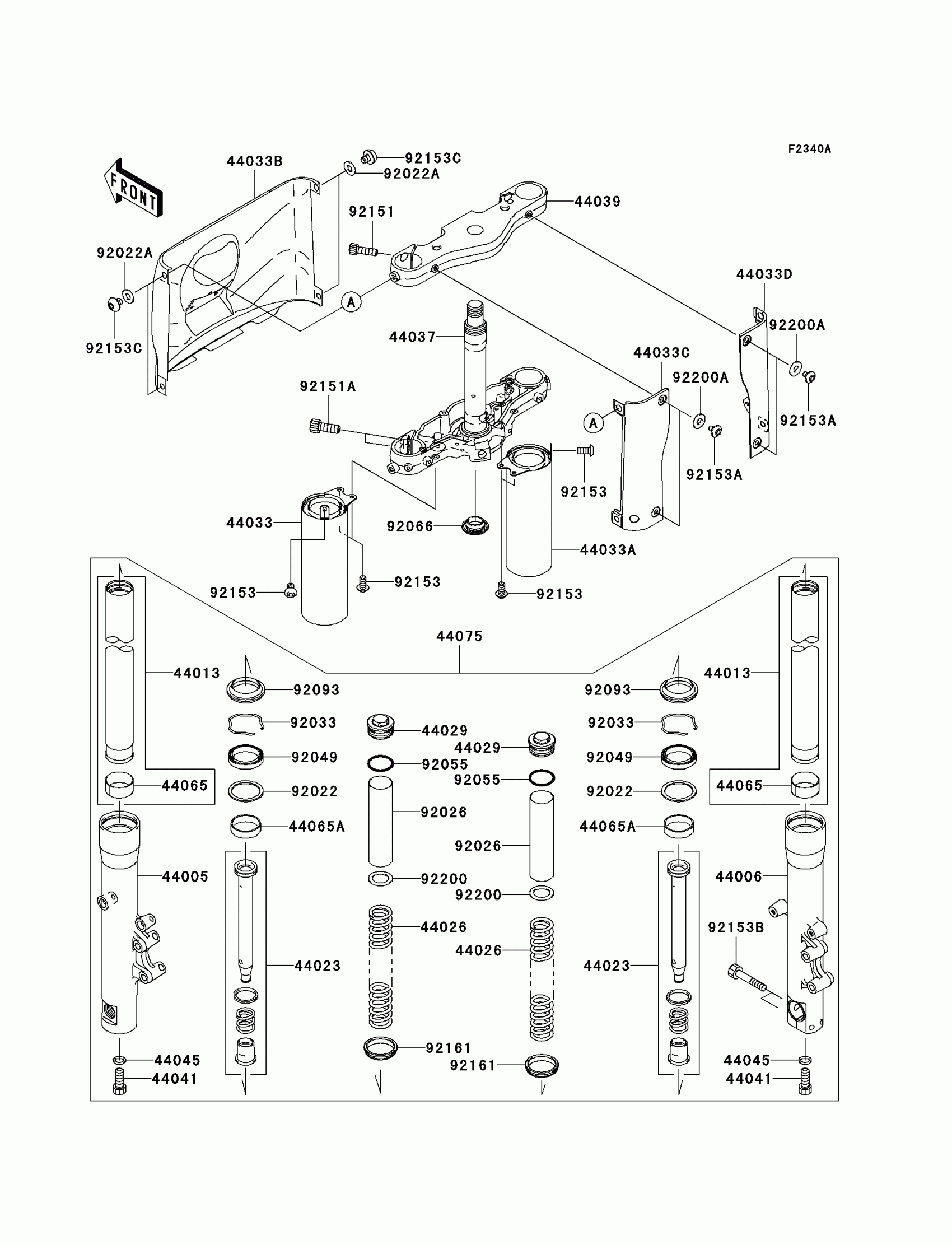

Kawasaki Vulcan 1600 Classic Front Fork(-JKBVNKA1 5A015115) Diagram

Description

Price

44005

PIPE-LEFT FORK OUTER

44005-1436

$478.32

44006

PIPE-RIGHT FORK OUTER

44006-0006

$478.32

44013

PIPE-FORK INNER

44013-0002

$491.05

44023

CYLINDER-SET-FORK

44023-0004

$207.84

44026

SPRING-FRONT FORK

44026-0014

$106.64

44029

SEAT-FORK SPRING

44029-1154

$46.13

44033

COVER-FORK,INNER,LH

44033-0011

$78.73

44033A

COVER-FORK,INNER,RH

44033-0012

$78.73

44033B

COVER-FORK,CNT

44033-0013

$132.21

44033C

COVER-FORK,RR,LH

44033-0014

$109.58

44033D

COVER-FORK,RR,RH

44033-0016

$118.25

44037

HOLDER-FORK UNDER

44037-0004

Unavailable

44039

HOLDER-FORK UPPER

44039-0004

$368.26

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

44045

GASKET

44045-057

$4.86

44065

BUSHING-FRONT FORK

44065-0003

$26.59

44065A

BUSHING-FRONT FORK

44065-1143

$18.82

44075

DAMPER-SET-FORK

44075-1188

$1,515.29

92022

WASHER

92022-1299

$8.58

92022A

WASHER,8.2X18X1.5

92022-3743

$4.22

92026

SPACER

92026-0002

$33.14

92033

RING-SNAP

92033-1077

$4.96

92049

SEAL-OIL

92049-0007

$25.76

92055

RING-O

92055-1123

$6.22

92066

PLUG

92066-0032

$11.66

92093

SEAL,FORK OUTER TUBE

92093-1480

$18.58

92151

BOLT,SOCKET,8X25

92151-1270

$3.61

92151A

BOLT,SOCKET,10X25

92151-1358

$3.43

92153

BOLT

92153-0300

$3.16

92153A

BOLT,SOCKET,6X10

92153-0410

$2.80

92153B

BOLT

92153-0425

$8.91

92153C

BOLT,SOCKET,8X10

92153-1278

$6.48

92161

DAMPER

92161-1343

$3.90

92200

WASHER

92200-1253

$8.12

92200A

WASHER,6.5X14.5X1.5

92200-3775

$1.74
