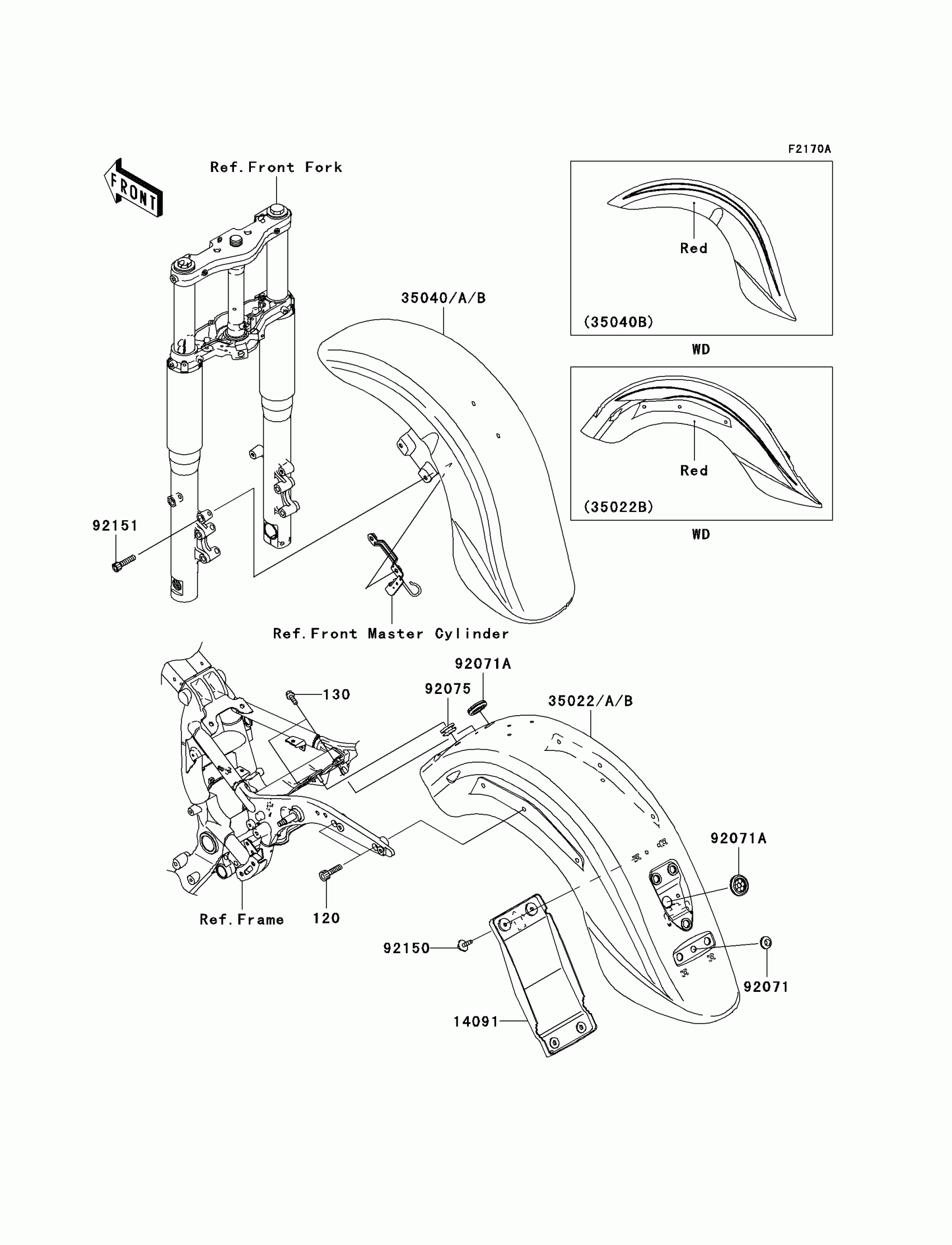

Kawasaki Vulcan 1600 Classic Fenders(A3) Diagram

Description

Price

120

BOLT-SOCKET,8X30

120S0830

$4.37

130

BOLT-FLANGED,8X16

130J0816

$1.66

14091

COVER,TAIL LAMP

14091-0370

$26.11

35022

FENDER-COMP-REAR,EBONY

35022-0022-H8

$1,049.29

35022A

FENDER-COMP-REAR,P.B.BEIGE

35022-0022-X8

$1,049.29

35022B

FENDER-COMP-REAR,M.M.RED

35022-5160-665

$1,094.61

35040

FENDER-COMP-FRONT,EBONY

35040-0002-H8

$604.51

35040A

FENDER-COMP-FRONT,P.B.BEIGE

35040-0002-X8

$674.72

35040B

FENDER-COMP-FRONT,M.M.RED

35040-5004-665

$680.74

92071

GROMMET,10MM

92071-019

$3.89

92071A

GROMMET

92071-1265

$4.63

92075

DAMPER

92075-1067

$4.69

92150

BOLT,FLANGED,6X14

92150-1689

$3.94

92151

BOLT,SOCKET,8X35

92151-1535

$3.35
