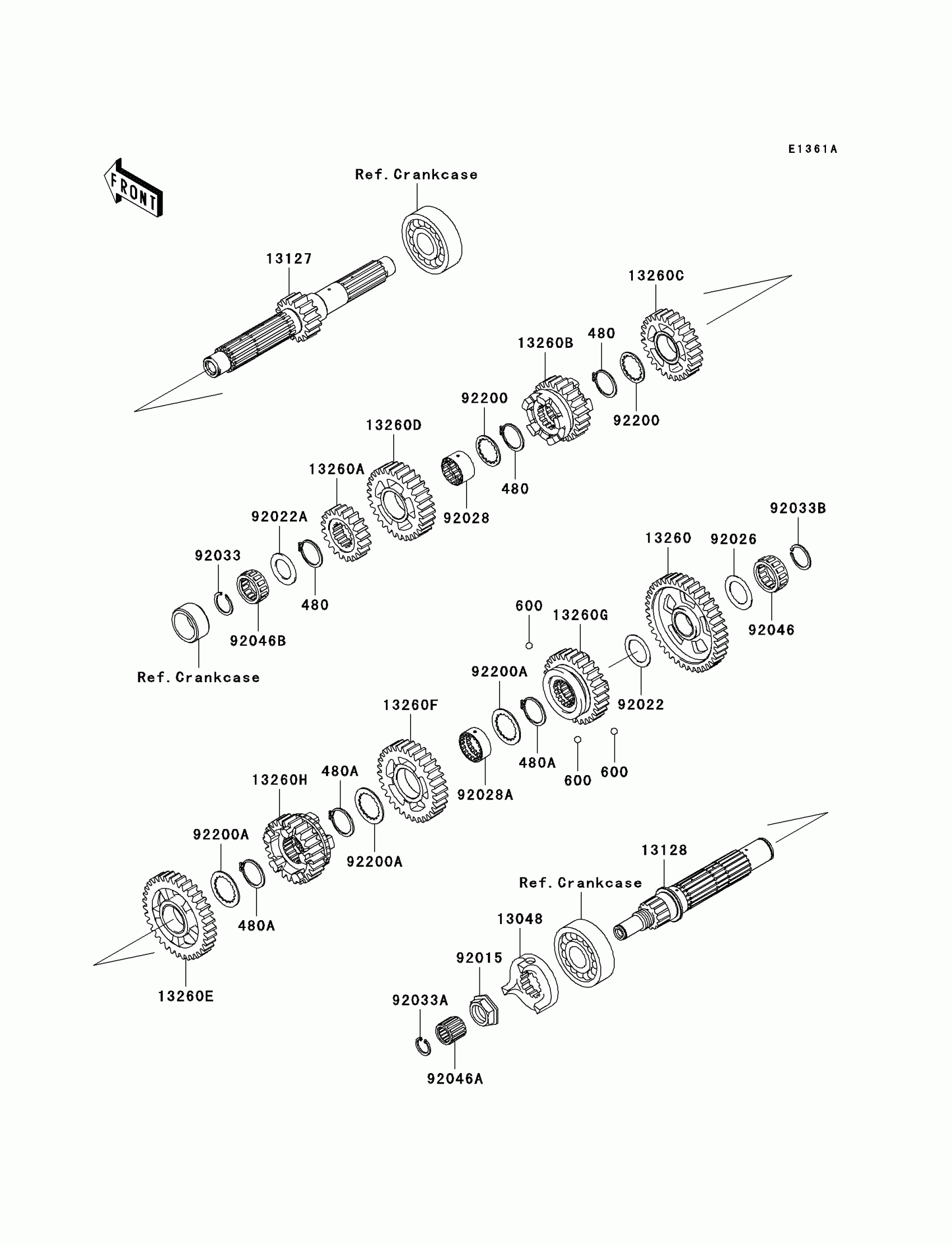

Kawasaki Vulcan 1500 Nomad Fi Transmission(VN1500-L3/L4) Diagram

Description

Price

480

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

480A

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

13048

CAM-DAMPER

13048-1086

$104.58

13127

SHAFT-TRANSMISSION INPUT

13127-1288

$412.69

13128

SHAFT-TRANSMISSION OUTPUT

13128-1251

Unavailable

13260

GEAR,OUTPUT LOW,40T

13260-1910

$184.27

13260A

GEAR,INPUT 2ND,22T

13260-1914

$178.04

13260B

GEAR,INPUT 3RD,26T

13260-1915

Unavailable

13260C

GEAR,INPUT 4TH,29T

13260-1916

Unavailable

13260D

GEAR,INPUT TOP,32T

13260-1917

Unavailable

13260E

GEAR,OUTPUT 2ND,35T

13260-1918

$178.04

13260F

GEAR,OUTPUT 3RD,31T

13260-1919

Unavailable

13260G

GEAR,OUTPUT 4TH,28T

13260-1920

$177.43

13260H

GEAR,OUTPUT TOP,25T

13260-1921

Unavailable

92015

NUT,20MM

92015-1610

$13.08

92022

WASHER,25.5X36X1.0

92022-1855

$9.89

92022A

WASHER,22.3X35X1.6

92022-212

$9.91

92026

SPACER,25.5X38X1.0

92026-1536

$7.31

92028

BUSHING,INPUT TOP GEAR

92028-1990

$37.98

92028A

BUSHING,OUTPUT 3RD GEAR

92028-1991

$56.49

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP

92033-032

$4.96

92033B

RING-SNAP,25MM

92033-1172

$5.08

92046

BEARING-NEEDLE,TK253515

92046-1259

$25.71

92046A

BEARING-NEEDLE,FWF-162222

92046-1260

$23.91

92046B

BEARING-NEEDLE,BN502250

92046-1293

$21.43

92200

WASHER,28.5X34.0X1.5

92200-1240

$10.28

92200A

WASHER,30.3X40X1.5

92200-1381

$12.60
