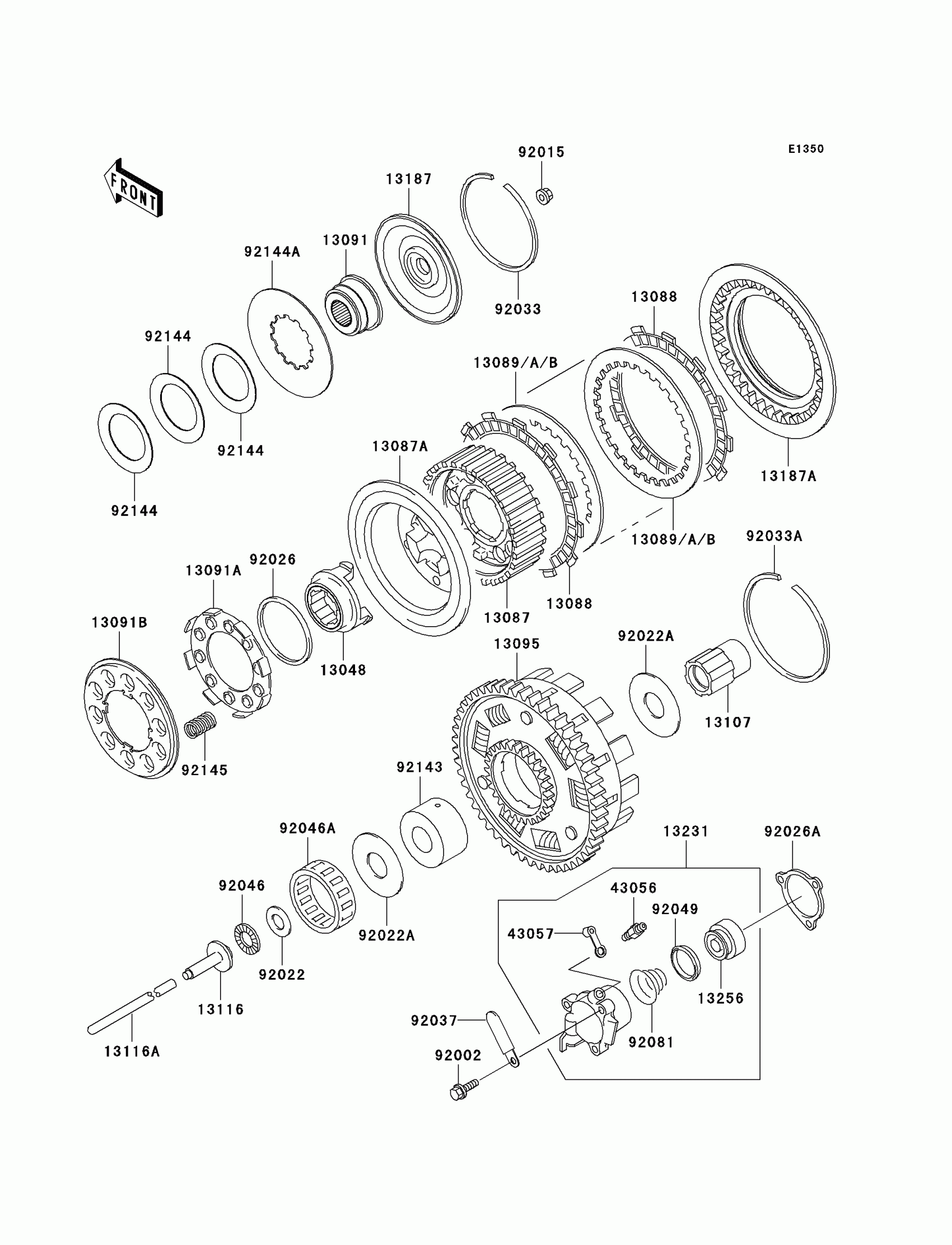

Kawasaki Vulcan 1500 Drifter Clutch(R1-R3) Diagram

#

Description
Price

13048

CAM-DAMPER

13048-1087

Unavailable

13087

HUB-CLUTCH,OUTER

13087-1103

$235.98

13087A

HUB-CLUTCH,INNER

13087-1110

$301.88

13088

PLATE-FRICTION

13088-1018

$20.06

13089

PLATE-CLUTCH,T=2.0

13089-1075

Unavailable

13089A

PLATE-CLUTCH,T=1.6

13089-1080

Unavailable

13089B

PLATE-CLUTCH,T=2.3

13089-1081

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1494

$66.00

13091A

HOLDER,DAMPER SPRING

13091-1495

$96.29

13091B

HOLDER,DAMPER SPRING

13091-1496

$91.90

13095

HOUSING-COMP-CLUTCH

13095-1342

Unavailable

13107

SHAFT,CLUTCH CAM DAMPER

13107-1237

$95.85

13116

ROD-PUSH,CLUTCH

13116-1102

$36.78

13116A

ROD-PUSH

13116-1132

$29.70

13187

PLATE-CLUTCH OPERATING

13187-1063

$47.44

13187A

PLATE-CLUTCH OPERATING

13187-1066

$93.28

13231

RELEASE-ASSY-CLUTCH

13231-1071

$162.39

13256

PISTON

13256-1052

$59.07

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

92002

BOLT,6X25

92002-1612

$5.05

92015

NUT,20MM

92015-1461

$24.15

92022

WASHER,15.1X29X1.0

92022-1463

$5.00

92022A

WASHER,25.3X56X2.0

92022-1857

$14.23

92026

SPACER,59X70X3.5

92026-1043

$27.73

92026A

SPACER,CLUTCH RELEASE

92026-1263

$16.69

92033

RING-SNAP

92033-1238

$15.24

92033A

RING-SNAP

92033-1239

$10.53

92037

CLAMP,L=45

92037-1539

$5.00

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92046A

BEARING-NEEDLE,RS40/29A

92046-1175

$38.70

92049

SEAL-OIL,PISTON

92049-1165

$19.64

92081

SPRING,CLUTCH RELEASE

92081-1644

$8.51

92143

COLLAR,INPUT SHAFT

92143-1076

$50.75

92144

SPRING,LIMITER

92144-1188

$12.96

92144A

SPRING,CLUTCH

92144-1934

$35.90

92145

SPRING

92145-1243

$9.38
