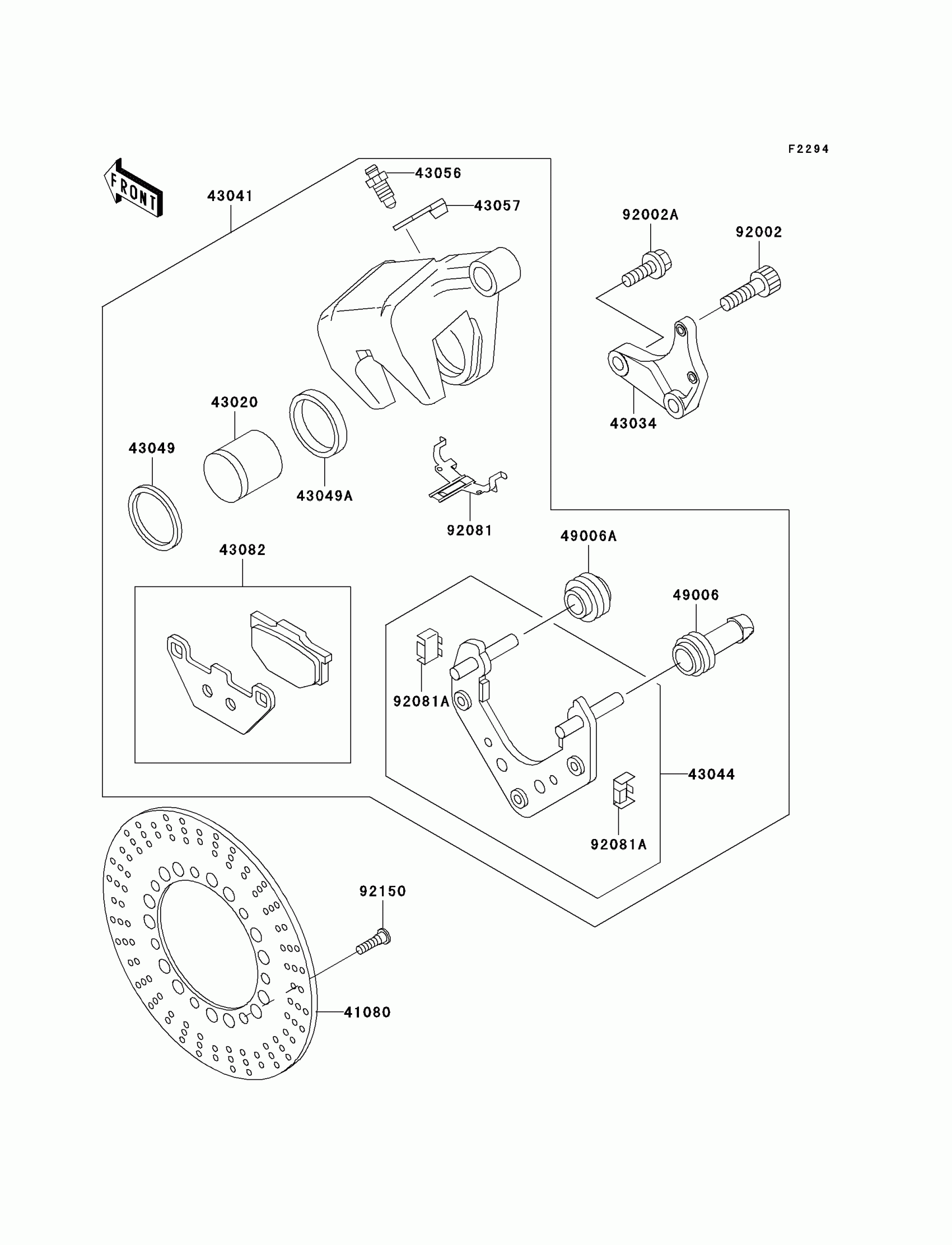

Kawasaki Vulcan 1500 Classic Rear Brake(VN1500-E2/E3) Diagram

Description

Price

41080

DISC,RR,SILVER NO.1

41080-1378-CM

$409.56

43020

PISTON-COMP-BRAKE

43020-1066

$105.36

43034

HOLDER-BRAKE,REAR CALIPER

43034-1080

Unavailable

43041

CALIPER-ASSY,RR,SILVER

43041-1598-GN

$557.05

43044

HOLDER-COMP-CALIPER,RR

43044-1103

Unavailable

43049

PACKING,PISTON

43049-1028

$12.65

43049A

PACKING,PISTON SEAL

43049-1098

$13.90

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1194

$61.15

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT,SOCKET,10X17

92002-1713

$7.34

92002A

BOLT,FLANGED,12X40

92002-1969

$9.05

92081

SPRING,PAD

92081-1525

$19.48

92081A

SPRING,PAD STOPPER

92081-1661

$11.80

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
