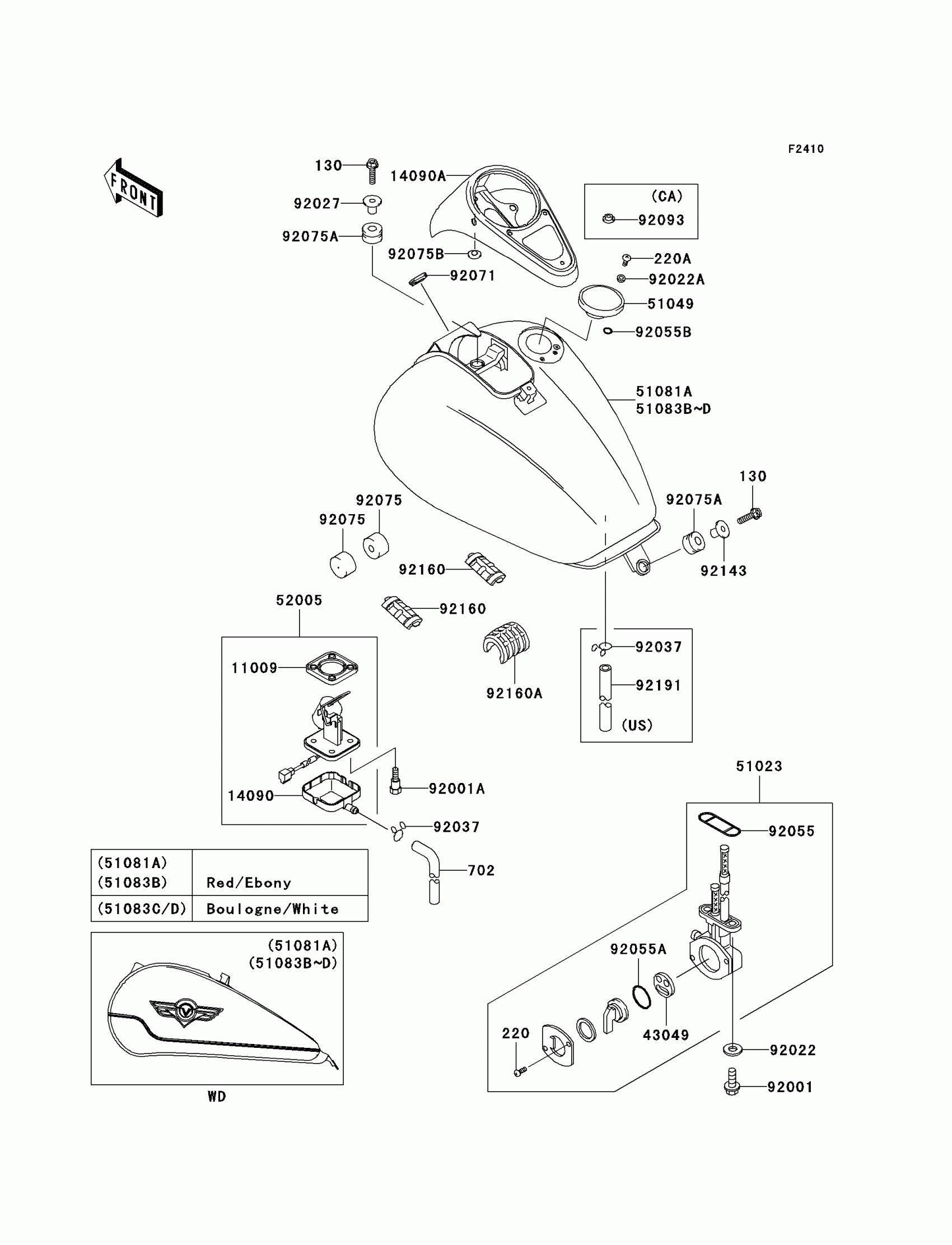

Kawasaki Vulcan 1500 Classic Fuel Tank(4/4) Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$17.07

14090A

COVER,METER

14090-1674

$157.56

43049

PACKING,TAP VALVE

43049-1091

$7.26

51023

TAP-ASSY,FUEL

51023-1330

$138.53

51049

CAP-TANK,FUEL

51049-1132

$110.44

52005

GAUGE,FUEL

52005-1129

$132.63

92001

BOLT,6X25

92001-1524

$2.12

92001A

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER-PLAIN

92022-183

$3.92

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,L=19.3

92027-1780

$6.57

92055

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92055B

RING-O,ID=9

92055-1552

$3.49

92071

GROMMET

92071-1187

$4.96

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER

92075-1736

$6.57

92075B

DAMPER,RUBBER

92075-261

$4.31

92143

COLLAR

92143-1835

$9.13

92160

DAMPER,FUEL TANK

92160-1751

$17.60

92160A

DAMPER,FUEL TANK

92160-1799

$9.99

130

BOLT-FLANGED,8X30

130H0830

$1.92

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,7X10X860

702A07860

$13.38

51081A

TANK-COMP-FUEL,RED/EBONY

51081-5032-CV

Unavailable

51083B

TANK-COMP-FUEL,RED/EBONY

51083-5081-CV

$1,692.64

51083C

TANK-COMP-FUEL,BOULOGNE/WHITE

51083-5103-2S

$1,692.64

51083D

TANK-COMP-FUEL,BOULOGNE/WHITE

51083-5104-2S

$1,692.64

92037

CLAMP,TUBE

92037-147

$7.34

92037

CLAMP,TUBE

92037-147

$7.34

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92191

TUBE,DRAIN

92191-1272

$24.06
