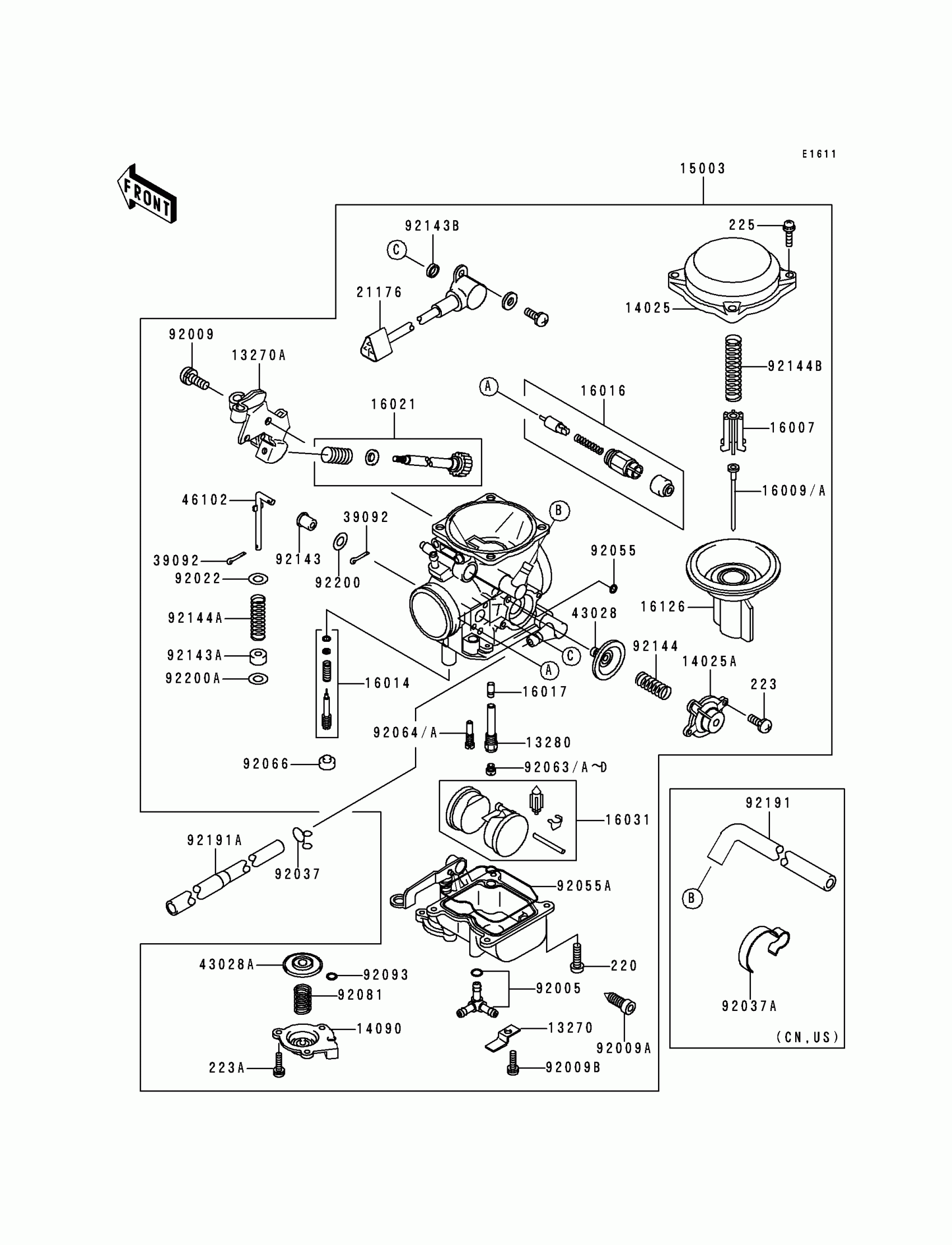

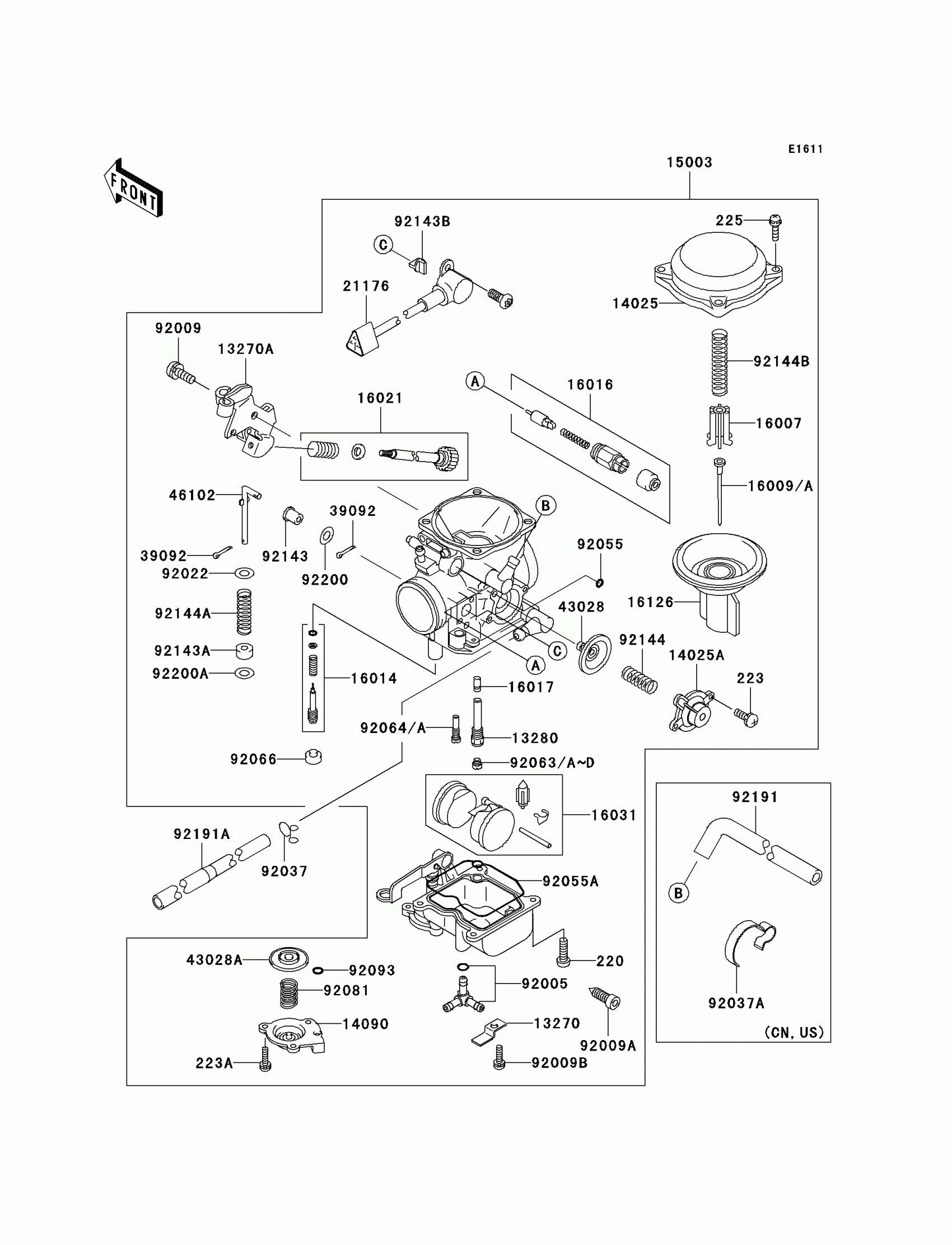

Kawasaki Vulcan 1500 Classic Carburetor Diagram

#

Description
Price

13270

PLATE,FITTING STAY

13270-1286

$60.62

13270A

PLATE

13270-1513

$42.51

13280

HOLDER,NEEDLE JET

13280-1087

$34.49

14025

COVER,MIXING CHAMBER

14025-1890

$77.81

14025A

COVER,AIR CUT VALVE

14025-1903

$58.45

14090

COVER,ACCELERATOR

14090-1635

$59.33

15003

CARBURETOR-ASSY

15003-1380

$1,082.16

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

$20.77

16009

NEEDLE-JET,N2PY

16009-1941

Unavailable

16009A

NEEDLE-JET,N5AM

16009-1995

$36.99

16014

SCREW-PILOT AIR

16014-1082

$39.16

16016

PLUNGER

16016-1087

$88.75

16017

JET-NEEDLE,01B38

16017-1276

Unavailable

16021

SCREW-THROTTLE STOP

16021-1219

$111.40

16031

FLOAT

16031-1090

$71.35

16126

VALVE,VACUUM

16126-1325

$209.96

21176

SENSOR

21176-1078

$554.39

39092

PIN-HAIR

39092-1058

$3.06

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

43028A

DIAPHRAGM

43028-1077

$89.08

46102

ROD,ACCELERATOR PUMP

46102-1400

$30.33

92005

FITTING

92005-1350

$28.37

92009

SCREW,5X10

92009-1365

$7.34

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92009B

SCREW,4X8

92009-1704

$3.92

92022

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,TUBE

92037-1531

$5.52

92055

RING-O

92055-1245

$5.57

92055A

RING-O,FLOAT CHAMBER

92055-1518

$24.43

92063

JET-MAIN,#140

92063-1013

$14.10

92063A

JET-MAIN,#135

92063-1014

$14.10

92063B

JET-MAIN,#138

92063-1015

$14.10

92063C

JET-MAIN,#142

92063-1016

$14.10

92063D

JET-MAIN,#132

92063-1076

$14.10

92064

JET-PILOT,#45

92064-1177

Unavailable

220

SCREW-PAN-CROS,4X14

220D0414

$4.60

223

SCREW-PAN-WS-CROS,4X8

223D0408

$1.28

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01

92064A

JET-PILOT,#42

92064-1194

$20.82

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92081

SPRING,DIAPHRAGM

92081-1092

$11.61

92093

SEAL-"U"RING

92093-1046

$6.51

92143

COLLAR

92143-1790

$3.72

92143A

COLLAR

92143-1791

$8.94

92143B

COLLAR

92143-1907

$9.50

92144

SPRING

92144-1885

Unavailable

92144A

SPRING

92144-1886

Unavailable

92144B

SPRING,VACUUM VALVE

92144-1947

$21.80

92191A

TUBE,FUEL

92191-1261

$11.01

92200

WASHER

92200-1274

$3.12

92200A

WASHER

92200-1275

$3.12

92037A

CLAMP,HOSE

92037-1552

$9.97

92191

TUBE,AIR VENT

92191-1090

$17.26
