Tail Lamp(ZG1200-B1)

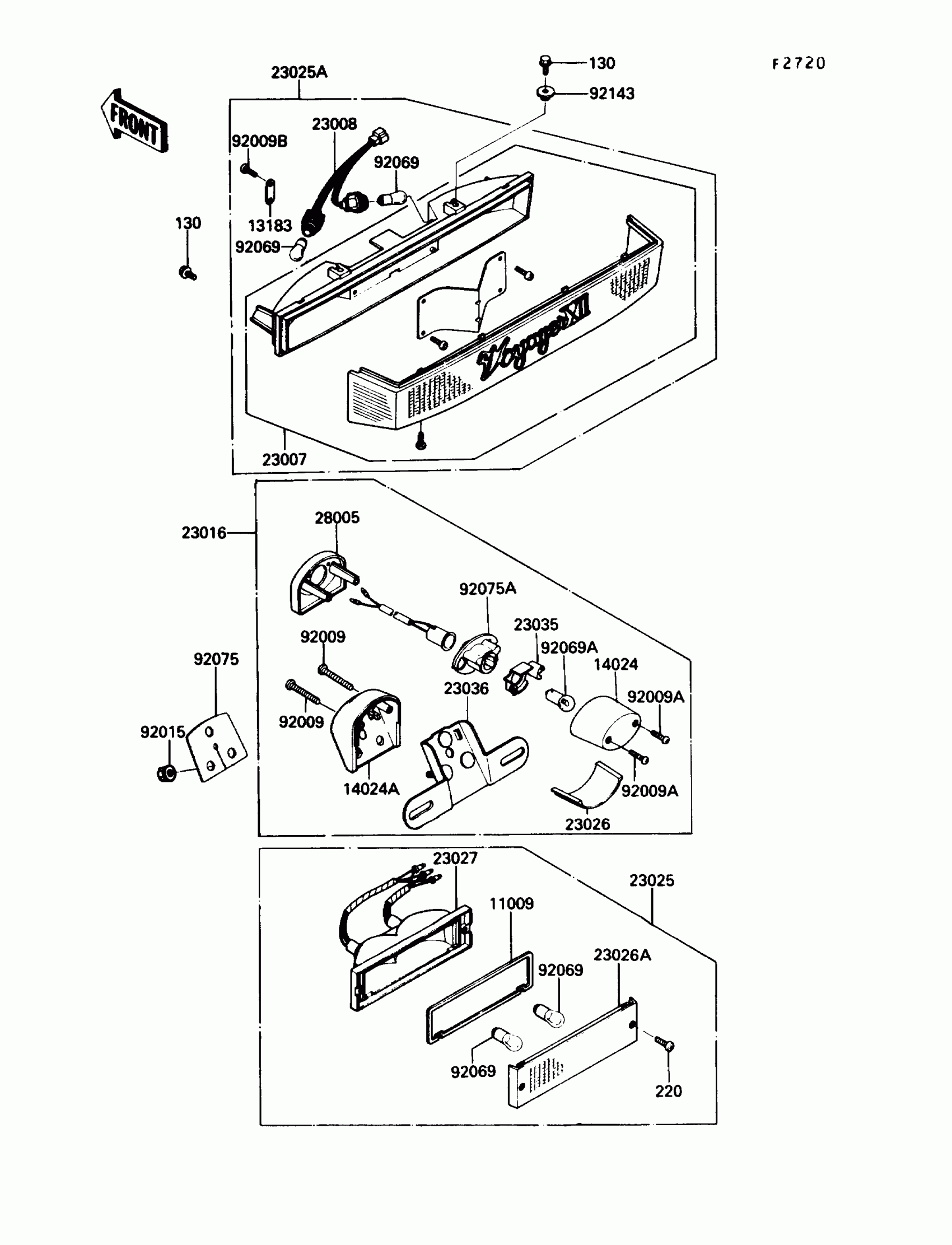

Kawasaki Voyager XII Tail Lamp(ZG1200-B1) Diagram
#
Description
Price
130
BOLT-FLANGED,6X20
130C0620
$6.86
220
SCREW-PAN-CROS,5X25
220B0525
$3.67
11009
GASKET,TAIL LAMP LENS
11009-1582
$8.02
13183
PLATE,TAIL LAMP
13169-1680
$4.77
14024
COVER,LICENSE LAMP
14025-1725
$18.40
14024A
COVER,LICENSE LAMP
14025-1728
$58.37
23007
LENS-COMP,TAIL LAMP
23007-1145
$535.83
23008
SOCKET-ASSY,TAIL LAMP
23008-1300
$49.23
23016
LAMP-ASSY,LICENSE
23016-1062
Unavailable
23025
LAMP-TAIL
23025-1129
$143.70
23025A
LAMP-TAIL
23025-1130
$535.83
23026
LENS,LICENSE LAMP
23026-1064
$26.12
23026A
LENS,TAIL LAMP
23026-1080
Unavailable
23027
BODY-COMP-TAIL LAMP
23027-1070
$143.70
23035
REFLECTOR-LAMP,LICENSE
23035-1060
$23.41
23036
BRACKET-TAIL LAMP
23036-1105
$32.40
28005
BODY-LAMP,LICENSE
28005-1051
$27.90
92009
SCREW,TAPPING,5X40
92009-1263
$3.92
92009A
SCREW,TAPPING,4X20
92009-1378
$4.10
92009B
SCREW,TAPPING,4X12
92009-1395
$4.65
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92069
BULB,12V 27/8W
92069-059
$8.12
92069A
BULB,12V 8W
92069-1012
$5.18
92075
DAMPER,LICENSE LAMP
92075-1676
$9.89
92075A
DAMPER,LICENSE LAMP
92075-1694
$24.57
92143
COLLAR,L=6.5
92143-1025
$6.22
