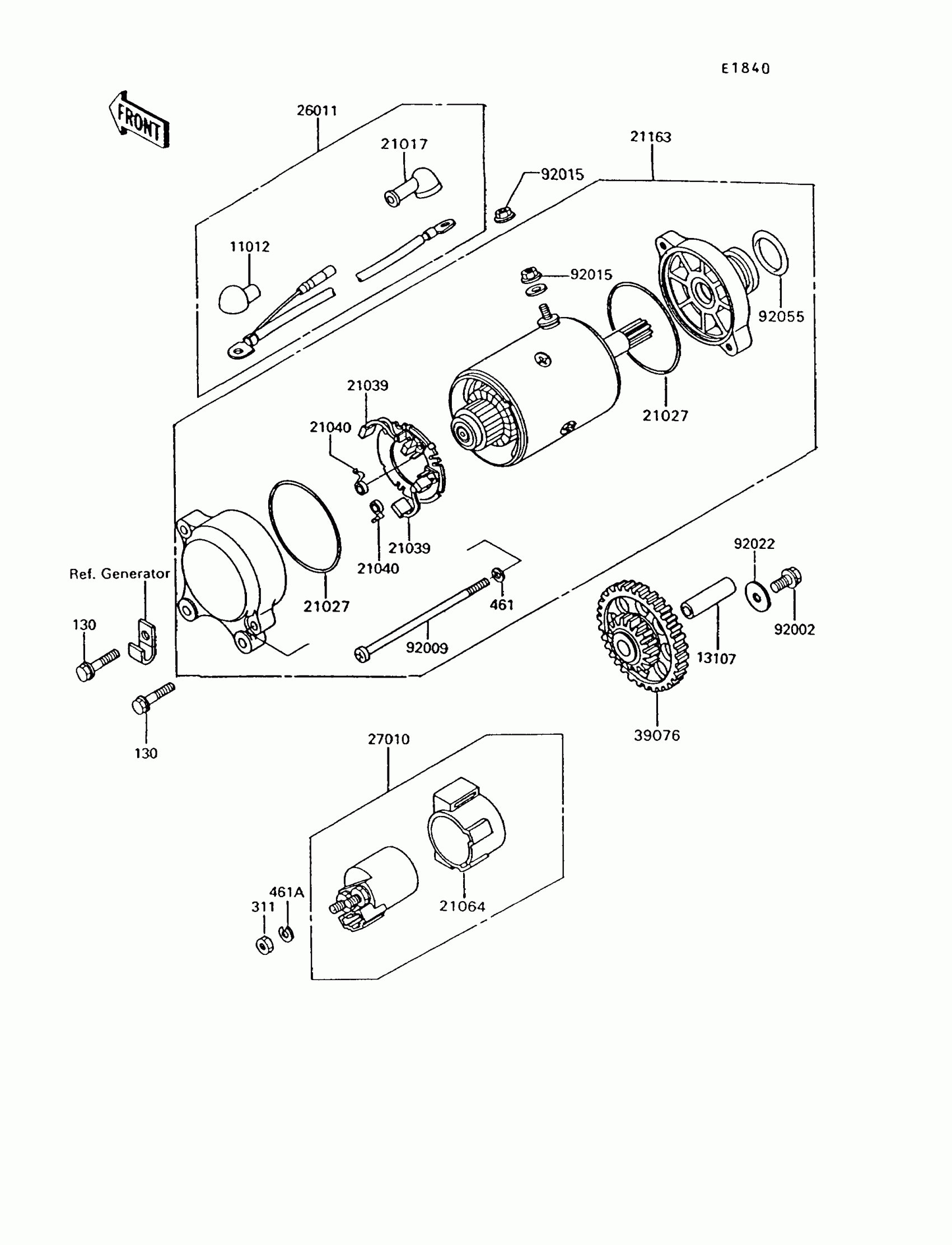

Kawasaki Voyager XII Starter Motor(ZG1200-B6) Diagram

Description

Price

130

BOLT,FLANGED,6X25

130G0625

$1.17

311

NUT 6MM

311B0600

$0.93

461

WASHER SPRING 5MM

461F0500

$0.69

461A

WASHER SPRING 6MM

461F0600

$0.69

11012

CAP,TERMINAL

11012-1354

$10.19

13107

SHAFT,IDLE GEAR

13107-1106

$16.69

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21027

RING-O,STARTER MOTOR

21027-003

Unavailable

21039

BRUSH,CARBON

21039-003

$40.76

21040

SPRING-BRUSH

21040-003

Unavailable

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-1098

$756.91

26011

WIRE-LEAD,STARTER MOTOR

26011-1369

$58.47

27010

SWITCH,MAGNETIC

27010-1209

Unavailable

39076

LIMITER,STARTER IDLE

39076-1067

$134.00

92002

BOLT,6X12

92002-1572

$3.65

92009

SCREW

92009-1443

Unavailable

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,6X19.5X2

92022-1517

$2.33

92055

RING-O

92055-1303

$11.79
