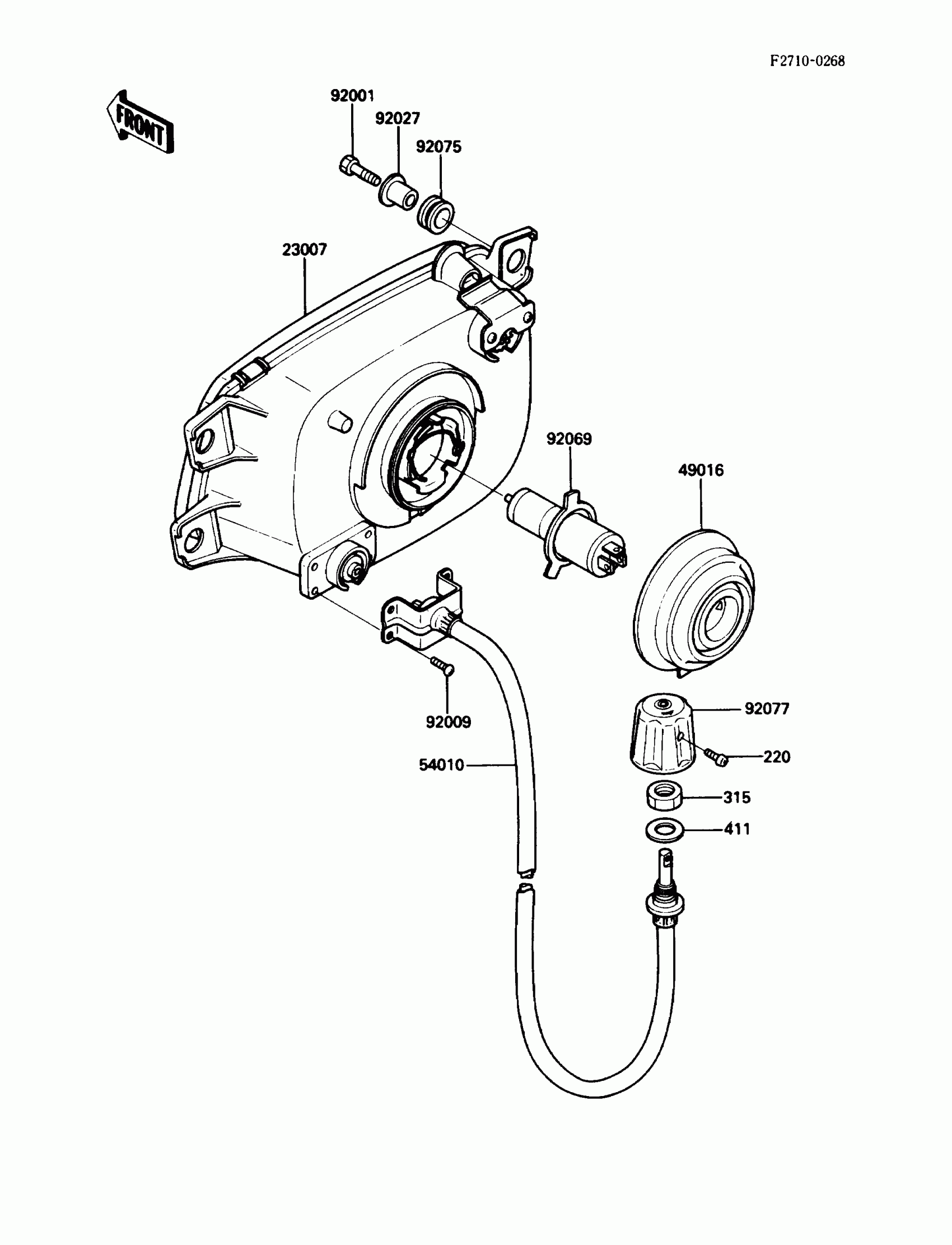

Kawasaki Voyager XII Head Lamp Diagram

Description

Price

220

SCREW-PAN-CROS

220C0312

$3.05

315

NUT-HEX-FINE

315C1200

$4.58

411

WASHER-PLAIN

411F1200

$3.92

23007

LENS-COMP,HEAD LAMP

23007-1144

$322.48

49016

COVER-SEAL,HEAD LAMP

49016-1108

$14.32

54010

CABLE,HEAD LAMP

54010-1058

$51.24

92001

BOLT,6X25

92001-1284

$5.11

92009

SCREW,TAPPING,4X14

92009-1340

$3.07

92027

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER,10X24X12

92075-1690

$5.00

92077

KNOB,HEAD LAMP CABLE

92077-1064

$13.85
