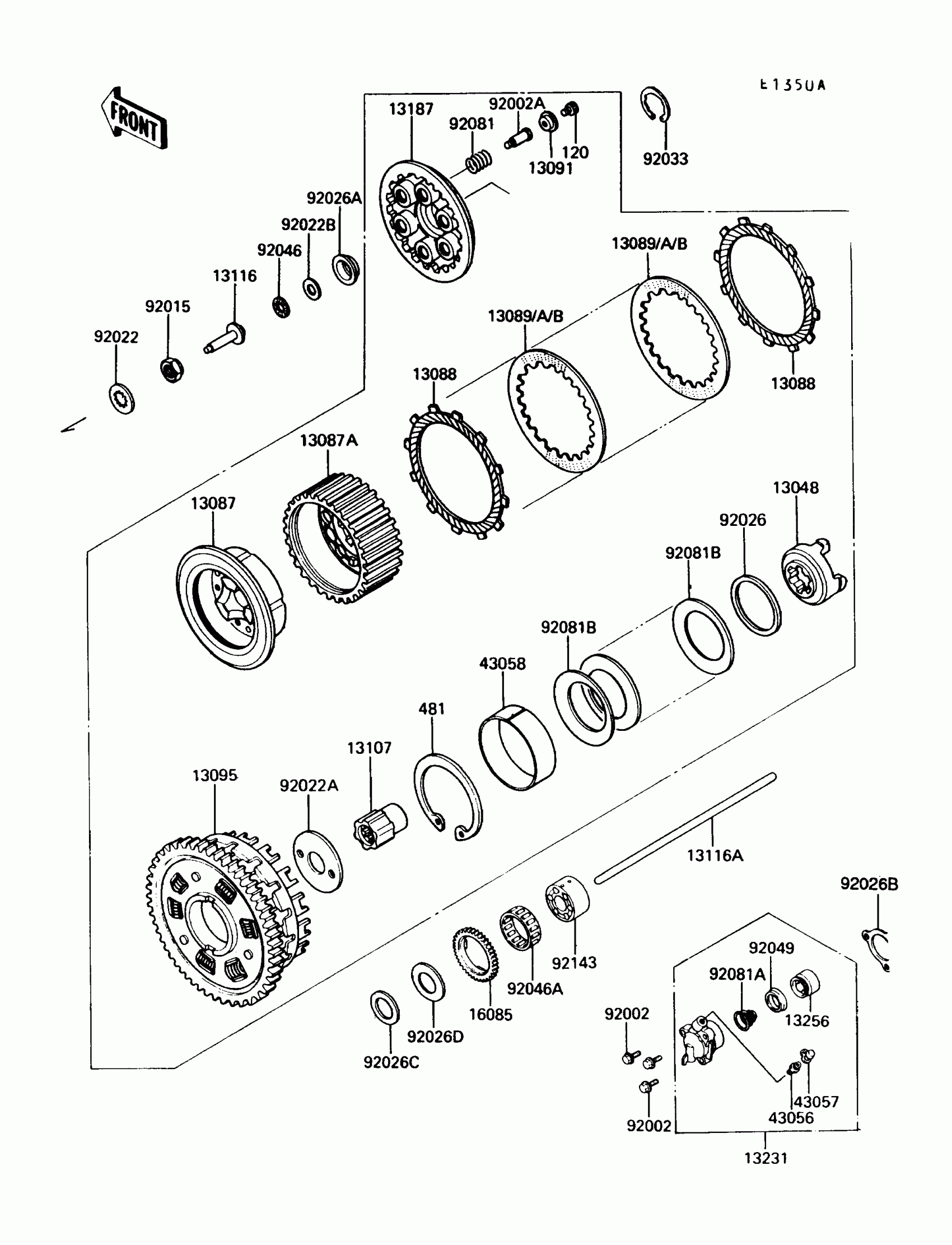

Kawasaki Voyager XII Clutch(ZG1200-B5) Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120Q0616

Unavailable

481

CIRCLIP

481J9500

$27.35

13048

CAM-DAMPER

13048-1007

$91.65

13087

HUB-CLUTCH

13087-1071

$306.10

13087A

HUB-CLUTCH

13087-1072

$441.95

13088

PLATE-FRICTION

13088-1051

$16.98

13089

PLATE-CLUTCH,T=2.3

13089-1004

Unavailable

13089A

PLATE-CLUTCH,T=2.6

13089-1067

Unavailable

13089B

PLATE-CLUTCH,T=2.0

13089-1068

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$12.23

13095

HOUSING-COMP-CLUTCH

13095-1167

Unavailable

13107

SHAFT,CLUTCH

13107-1266

Unavailable

13116

ROD-PUSH,CLUTCH

13116-1102

$36.78

13116A

ROD-PUSH,L=343

13116-1121

$32.49

13187

PLATE-CLUTCH OPERATING

13187-1055

$84.53

13231

RELEASE-ASSY-CLUTCH

13231-1057

$151.85

13256

PISTON,CLUTCH RELEASE

13256-1051

$53.05

16085

GEAR,OIL PUMP,37T

16085-1157

$156.42

43056

BREATHER

43056-1052

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43058

RING

43058-1059

$19.48

92002

BOLT,6X25

92002-1612

$5.05

92002A

BOLT,CLUTCH

92002-1639

$11.49

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,TOOTHED,25X40X5

92022-1114

$14.90

92022A

WASHER,CLUTCH THRUST

92022-1221

$15.04

92022B

WASHER,15.1X29X1.0

92022-1463

$5.00

92026

SPACER,59X70X3.5

92026-1043

$27.73

92026A

SPACER,CLUTCH

92026-1202

$43.03

92026C

SPACER,25X45X2.0

92026-1306

$18.25

92026D

SPACER,25X62X2.0

92026-1307

$18.25

92033

RING-SNAP,50MM

92033-1177

$8.79

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92046A

BEARING-NEEDLE,K556020

92046-1152

$35.79

92049

SEAL-OIL,PISTON

92049-1165

$19.64

92081

SPRING,CLUTCH

92081-1114

$7.55

92081A

SPRING,CLUTCH RELEASE

92081-1644

$8.51

92081B

SPRING

92081-1906

$37.39

92143

COLLAR,INPUTSHAFT

92027-1967

$125.31

92026B

SPACER,CLUTCH RELEASE

92026-1263

$16.69
