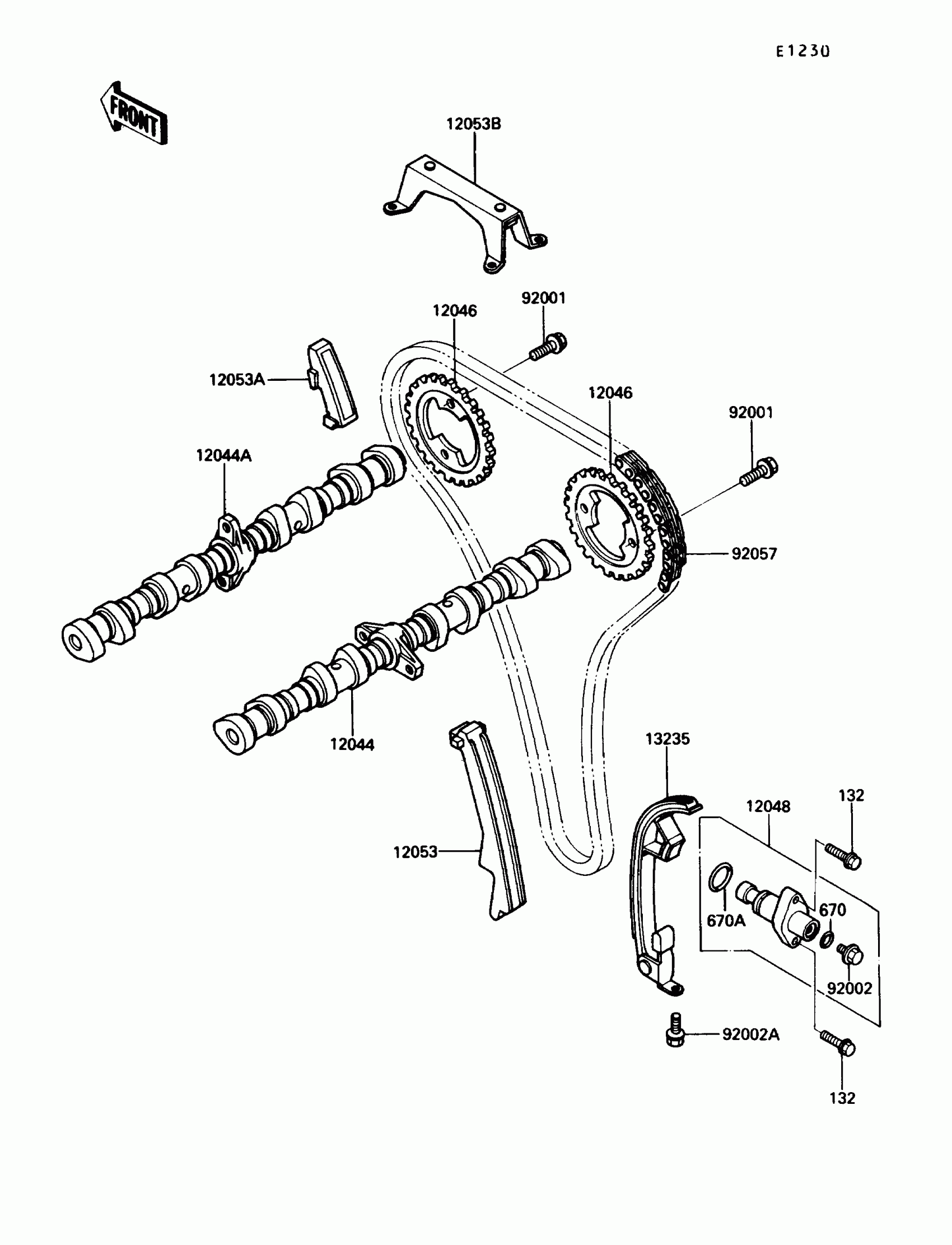

Kawasaki Voyager XII Camshaft/Tensioner Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

670

O RING,10MM

670D2010

$1.94

670A

O RING,21MM

670D2021

$6.85

12044

CAMSHAFT-VALVE,INTAKE

12044-1165

$560.18

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1166

$560.18

12046

SPROCKET,CAMSHAFT,40T

12046-1081

Unavailable

12048

TENSIONER-ASSY

12048-1075

$142.63

12053

GUIDE-CHAIN,FR,LOW

12053-1182

$48.50

12053A

GUIDE-CHAIN,FR,UPP

12053-1183

$21.62

12053B

GUIDE-CHAIN,UPP

12053-1185

$43.31

13235

GUIDE-COMP,CHAIN,RR

13235-1058

$129.22

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92002

BOLT,TENSIONER

92002-1627

$8.19

92002A

BOLT,6X14

92002-1656

$4.69

92057

CHAIN,CAMSHAFT

92057-1206

$137.07
