Accessory(Trunk)(ZG1200-B6/B7)

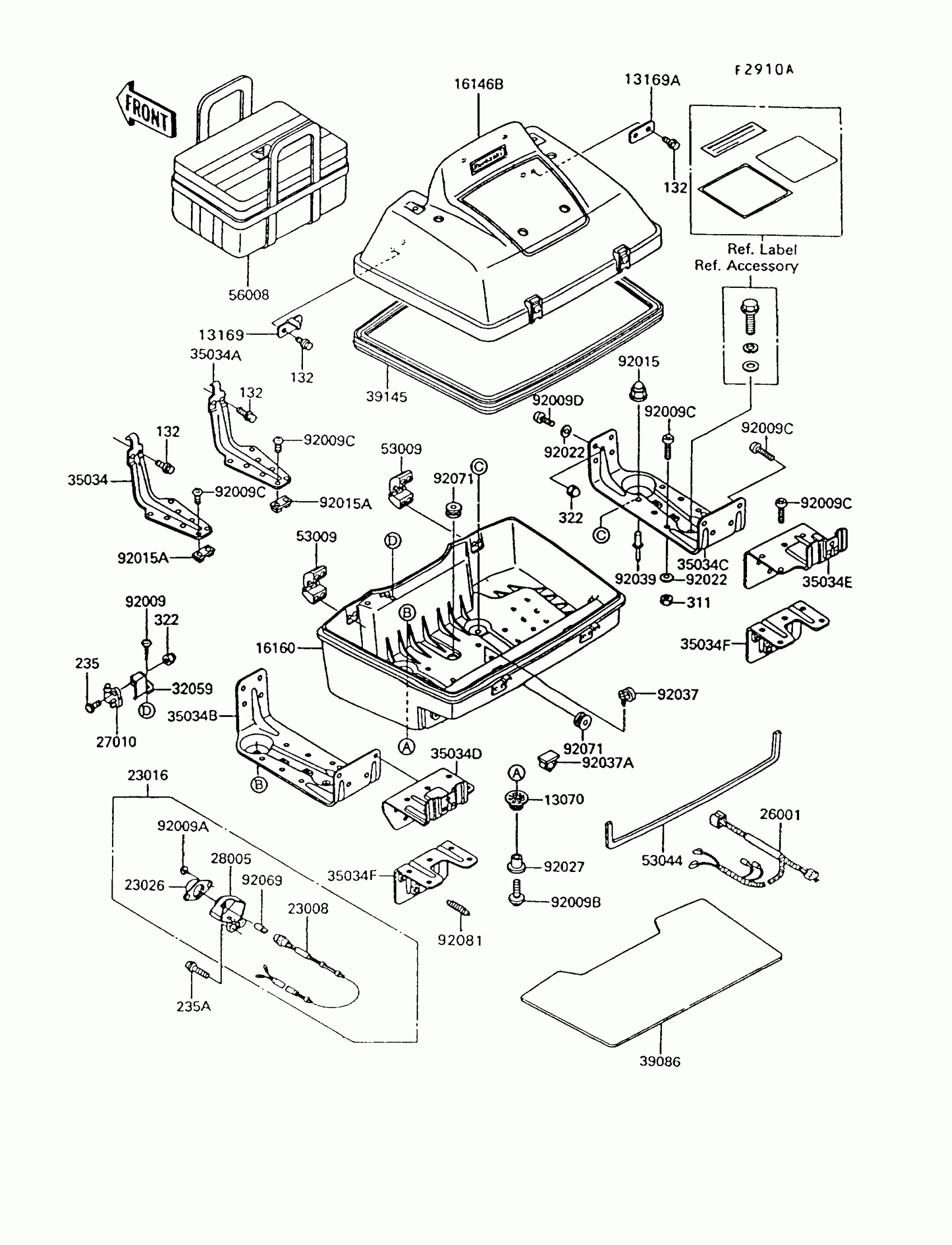

Kawasaki Voyager XII Accessory(Trunk)(ZG1200-B6/B7) Diagram
#
13070
GUIDE
13070-1149
$8.81
13169
PLATE,HINGE,LH
13169-1635
$9.67
13169A
PLATE,HINGE,RH
13169-1636
$5.24
16146B
COVER-ASSY,TRUNK,EBONY/GREEN
16146-5038-TL
$1,349.03
16160
BODY,TRUNK,EBONY
16160-1140-H8
$1,361.70
23008
SOCKET-ASSY,TRUNK ROOM LAMP
23008-1295
Unavailable
23016
LAMP-ASSY,TRUNK ROOM
23016-1066
$73.40
23026
LENS,LAMP
23026-1054
$9.28
26001
HARNESS,TRUNK
26001-1758
$38.78
27010
SWITCH,BRAKE/SIDE STAND
27010-1185
$40.69
28005
BODY-LAMP,TRUNK ROOM
28005-1054
$13.55
32059
BRACKET-SWITCH
32059-1067
$8.17
35034
REINFORCE,HINGE,LH
35034-1213
$51.29
35034A
REINFORCE,HINGE,RH
35034-1214
$51.29
35034B
REINFORCE,BAG,LH
35034-1215
$93.72
35034C
REINFORCE,BAG,RH
35034-1216
$93.72
35034D
REINFORCE,TAIL,LH
35034-1217
$46.97
35034E
REINFORCE,TAIL,RH
35034-1218
$39.06
35034F
REINFORCE,TAIL,LWR
35034-1219
$38.78
39086
PAD-STORAGE,TRUNK
39086-1051
$49.61
39145
TRIM-SEAL,TRUNK
39145-1087
$74.94
53009
HINGE,TRUNK
53009-1071
$71.53
53044
TRIM,TAIL LAMP
53044-1142
$12.72
56008
BAG,INNER
56008-1060
Unavailable
92009
SCREW,TAPPING,5X10
92009-1332
$3.92
92009A
SCREW,TAPPING,4X12
92009-1381
$2.97
92009B
SCREW,6X28,BLACK
92009-1400
$5.52
92009C
SCREW,4X12
92009-1448
$4.35
92009D
SCREW,4X10
92009-1489
$4.67
92015
NUT,LOCK 6MM
92015-1262
$5.52
92015A
NUT,PLATE,4MM
92015-1620
$8.17
92022
WASHER,4.3X12X0.8
92022-1830
$3.16
92027
COLLAR
92027-195
$6.57
92037
CLAMP,SPEED,L=43
92037-1290
$7.34
92037A
CLAMP,HARNESS
92037-1793
$8.19
92039
RIVET
92039-1150
$3.92
92069
BULB,12V 3CP
92069-1066
$6.67
132
BOLT-FLANGED-SMALL,5X12
132J0512
$3.41
235
SCREW-PAN-WP-CROS
235C0414
$3.00
235A
SCREW-PAN-WP-CROS
235C0430
$4.35
311
NUT-HEX
311C0400
$0.62
322
NUT-CAP,4MM
322C0400
$3.00
92071
GROMMET
92071-1136
$7.38
92081
SPRING,HARNESS GUIDE
92081-1954
$17.19
