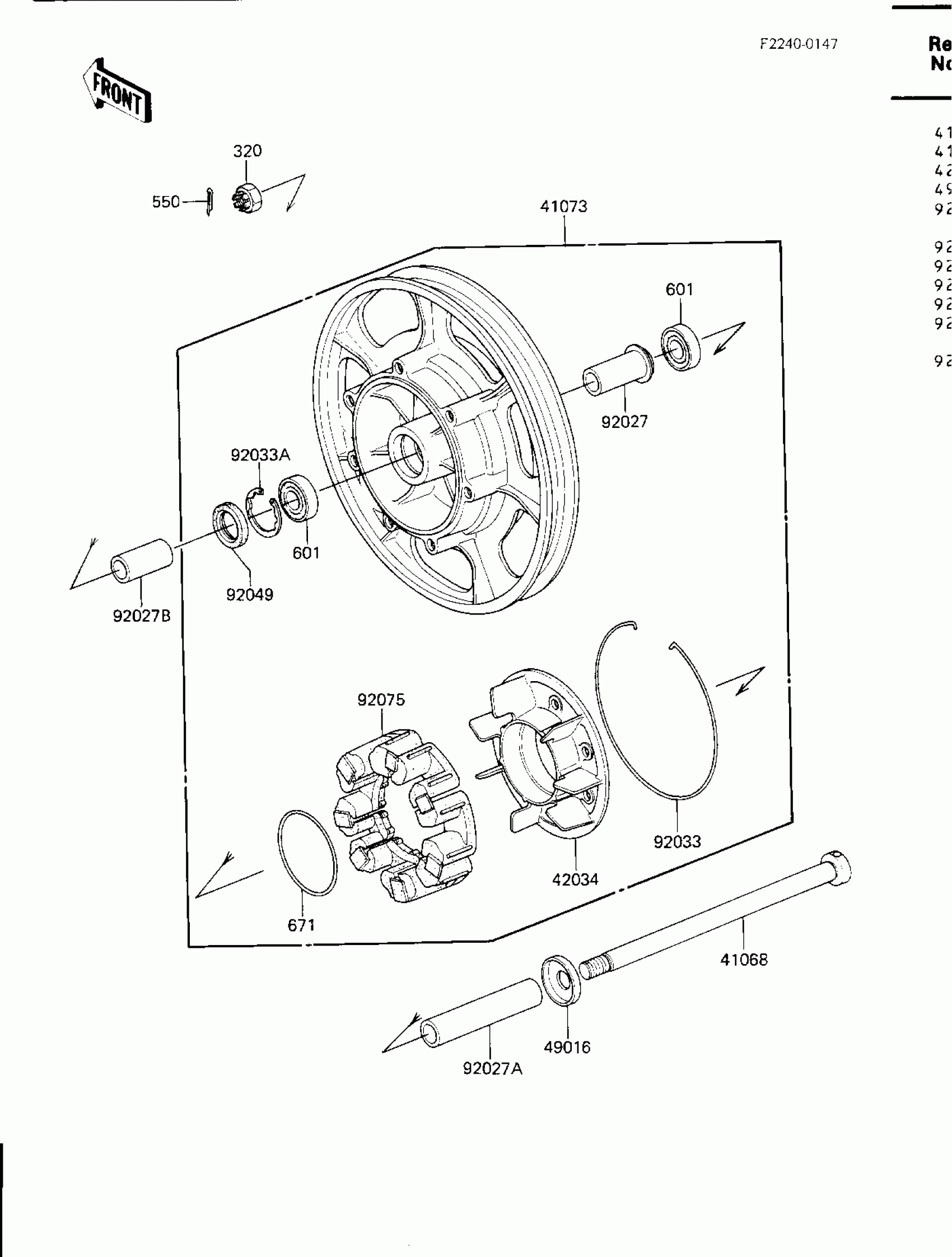

Kawasaki Voyager REAR WHEEL/HUB Diagram

Description

Price

41068

AXLE,RR,20X316

41068-1124

$69.97

41073

WHEEL-ASSY,RR,SOLID,NO2 GOLD

41073-1211-F6

$807.73

42034

COUPLING,RR HUB

42034-1011

$265.19

49016

COVER-SEAL

49016-1019

$8.53

92027

COLLAR,REAR HUB,L=74

92027-1552

$13.91

92027A

COLLAR,20.2X28X89

92027-1553

$28.86

92027B

COLLAR,20X28X42

92027-1554

$17.40

92033

RING-SNAP

92033-1019

$16.56

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92075

DAMPER,SHOCK,RR HUB

92075-1121

$135.89

320

NUT-CASTLE,18MM

320B1800

$4.06

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6304ZZC3

601B6304ZZ

$45.75

671

O RING,80MM

671B2580

$6.57
