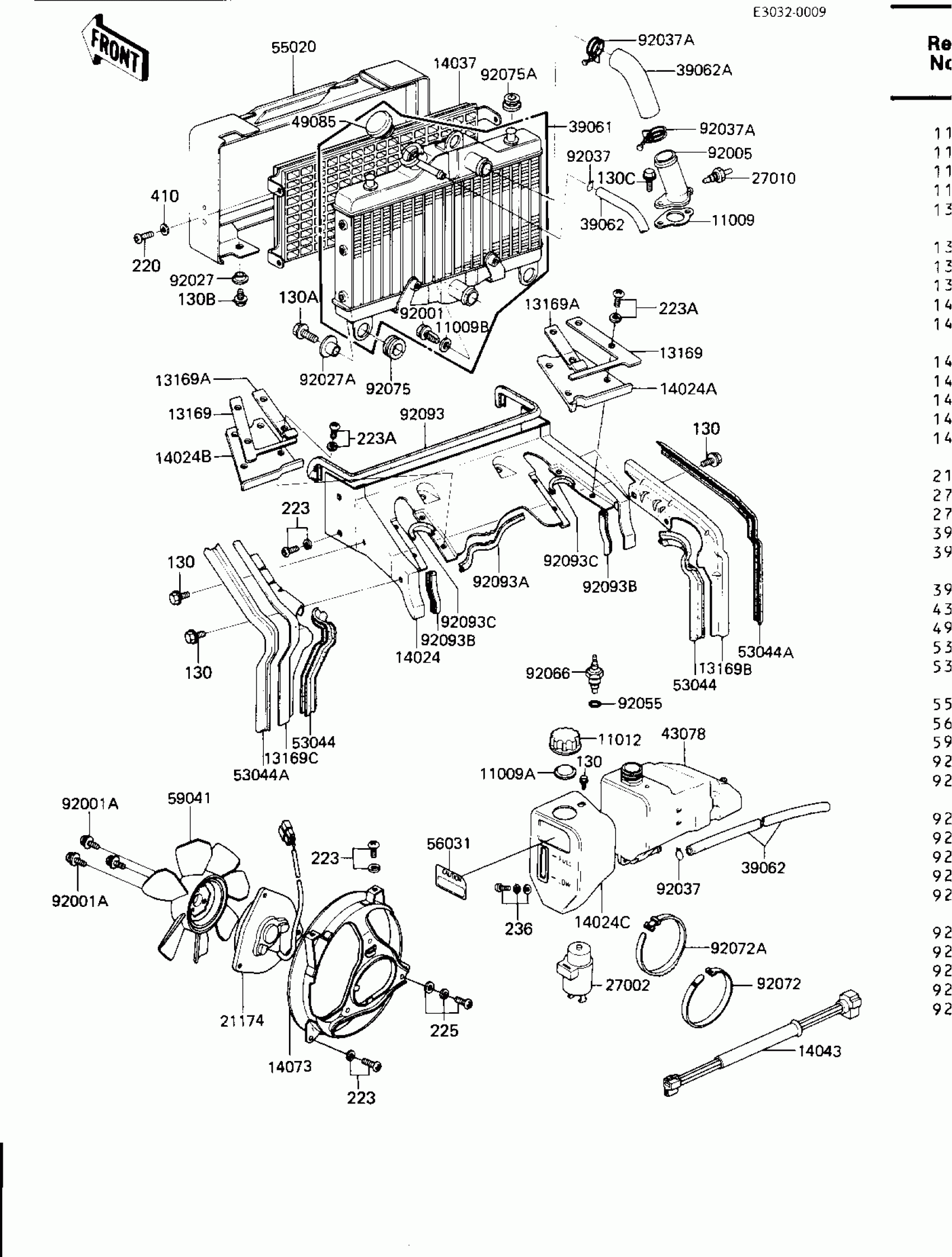

Kawasaki Voyager RADIATOR/FAN/COOLANT TANK Diagram
#
11009
GASKET,HOSE FITTING
11009-1100
Unavailable
11009A
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11009B
GASKET,DRAIN BOLT
11009-1152
$7.55
11012
CAP
11012-1084
$1.72
13169
PLATE,RADIATOR OUTSIDE
13169-1714
Unavailable
13169A
PLATE,RADIATOR INSIDE
13169-1715
Unavailable
13169B
PLATE,RADIATOR COVER,RH
13169-1740
Unavailable
13169C
PLATE,RADIATOR COVER,LH
13169-1741
Unavailable
14024
COVER,RADIATOR
14025-1665
Unavailable
14024A
COVER,RH
14025-1666
Unavailable
14024B
COVER,LH
14025-1667
Unavailable
14024C
COVER,RESERVOIR TANK
14025-1681
Unavailable
14037
SCREEN,RADIATOR
14037-1009
$95.60
14043
FILTER,AUDIO-NOISE
14043-1053
$57.61
14073
SHROUD,FAN
14073-1100
$109.34
21174
MOTOR-ELECTRIC,FAN
21174-1052
$442.62
27002
RELAY-ASSY
27002-1051
$52.57
27010
SWITCH,FAN
27010-1026
Unavailable
39061
RADIATOR-ASSY
39061-1017
$924.92
39062
HOSE-COOLING,7X12X1200
39062-1003
$29.95
39062A
HOSE-COOLING,UPP
39062-1019
$24.13
43078
RESERVOIR,TANK
43078-1007
Unavailable
49085
CAP-ASSY-PRESSURE,RADIATOR
49085-1051
$51.01
53044
TRIM,L=317
53044-1114
$26.49
53044A
TRIM,RADIATER PLATE,OUTER
53044-1115
$33.28
55020
GUARD,RADIATOR
55020-1102
$253.29
56031
LABEL-MANUAL,RESERVOIR TANK
56031-1221
$5.70
59041
FAN,COOLING
59041-1051
$88.54
92001
BOLT,RADIATOR DRAIN
92002-1682
$20.51
92001A
BOLT
92001-1902
$3.02
92005
FITTING,UPPER HOSE
92005-1012
Unavailable
92027
COLLAR,RADIATOR GUARD
92027-1577
Unavailable
92027A
COLLAR,RADIATOR
92027-1699
$4.79
92037
CLAMP-HOSE
92037-1104
$1.45
92037A
CLAMP,HOSE
92037-1177
$10.37
92055
RING-O,13.5MM
92055-073
$10.04
92066
SENDER,WATER TEMPERATURE
92066-1028
Unavailable
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=186
92072-056
$5.00
92075
DAMPER,RADIATOR
92075-1127
Unavailable
92075A
DAMPER,RADIATOR GUARD
92075-1469
$6.22
92093
SEAL,RADIATOR,L=940
92093-1089
$36.06
92093A
SEAL,RADIATOR,L=220
92093-1090
$10.38
92093B
SEAL,RADIATOR,L=55
92093-1091
$5.27
92093C
SEAL,RADIATOR,L=80
92093-1092
$6.16
130
BOLT-FLANGED,6X10
130C0610
$3.84
130A
BOLT-FLANGED,8X25
130C0825
$2.74
130B
BOLT-FLANGED,6X12
130N0612
$4.80
130C
BOLT-FLANGED
130X0625
$3.13
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
223
SCREW-PAN-WS-CROS
223B0610
$3.91
223A
SCREW-PAN-WS-CROS
223C0614
Unavailable
225
SCREW-PAN-WSP-CROS
225B0510
$1.39
236
SCREW-PAN-WSP-CROS
236D0616
$3.85
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
