Description

Price

11043

BRACKET-B,FAN RELAY

11043-1319

Unavailable

11043A

BRACKET-B,AIR HORN

11043-1327

Unavailable

14024

COVER,AIR HORN,FR

14025-1785

Unavailable

14024A

COVER,AIR HORN,RR

14025-1786

Unavailable

27002

RELAY-ASSY

27002-1051

$52.57

27002A

RELAY-ASSY

27002-1052

$194.39

20073

HORN,AIR,HIGH

27003-1202

$91.63

27003A

HORN,AIR,LOW

27003-1203

Unavailable

35011

STAY,AIR HORN

35011-1205

$33.58

49045

PUMP-ASSY-AIR,HORN

49045-1051

$431.36

59071

JOINT,HORN

59071-1101

$3.84

92001

BOLT,6X20

92001-1460

$3.92

92001A

BOLT,6X20

92001-1826

$3.92

92027

COLLAR

92027-194

$5.52

92059

TUBE,AIR HORN

92059-1354

$4.18

92075

DAMPER

92075-277

$2.84

112

BOLT,6X10

112G0610

$0.58

112A

BOLT-UPSET,6X20

112G0620

$2.12

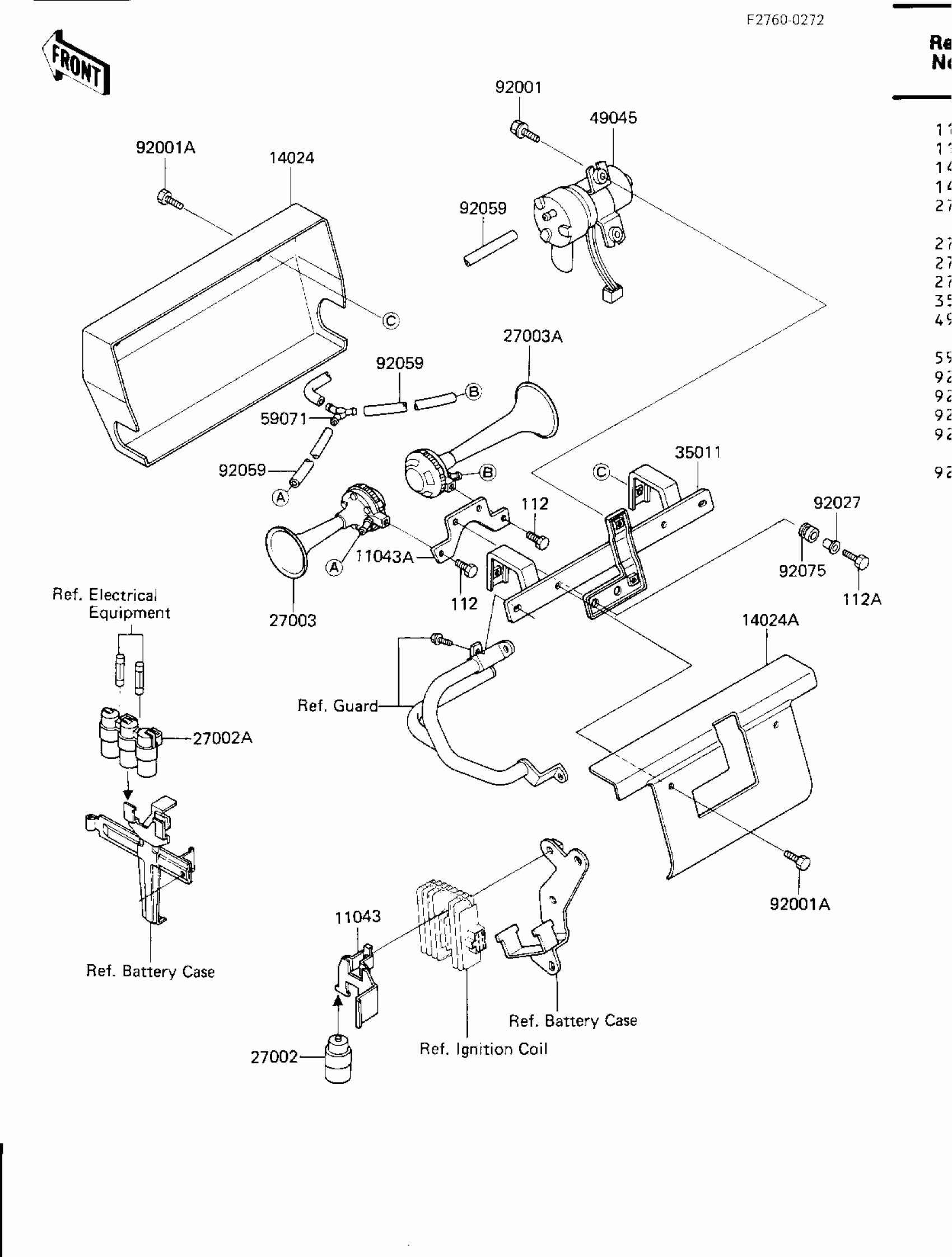

Kawasaki Voyager HORN Diagram

BRACKET-B,FAN RELAY

BRACKET-B,AIR HORN

COVER,AIR HORN,FR

COVER,AIR HORN,RR

RELAY-ASSY

RELAY-ASSY

HORN,AIR,HIGH

HORN,AIR,LOW

STAY,AIR HORN

PUMP-ASSY-AIR,HORN

JOINT,HORN

BOLT,6X20

BOLT,6X20

COLLAR

TUBE,AIR HORN

DAMPER

BOLT,6X10

BOLT-UPSET,6X20
