Description

Price

13091

HOLDER,HEAD LAMP BODY

13091-1187

Unavailable

14024

COVER,HEAD LAMP LENS

14025-1678

Unavailable

21174

MOTOR-ELECTRIC,FOCUS ADJUSTING

21174-1051

$566.18

23004

LAMP-HEAD

23004-1115

$325.82

23005

BODY-COMP-HEAD LAMP

23005-1031

$81.90

23007

LENS-COMP,HEAD LAMP

23007-1054

$115.48

49016

COVER-SEAL,HEAD LAMP

49016-1046

$12.40

92009

SCREW,4MM,FOCUS ADJUST

92009-1047

$4.92

92009A

SCREW,5X16

92009-1693

$4.38

92009B

SCREW,5X12

92009-1188

$6.28

92009C

SCREW,5X8

92009-1189

$3.93

92015

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92015A

NUT,5MM

92015-1253

$3.25

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92027

COLLAR,WITH SLIT,5.2X8X5

92027-1583

$5.49

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER,HEAD LAMP HOLDER

92075-1482

$6.05

92081

SPRING,HEAD LAMP LENS

92081-1103

$4.61

220

SCREW-PAN-CROS

220B0445

$3.59

410

WASHER PLAIN 4MM

410B0400

$0.48

410A

WASHER PLAIN

410F0500

$1.43

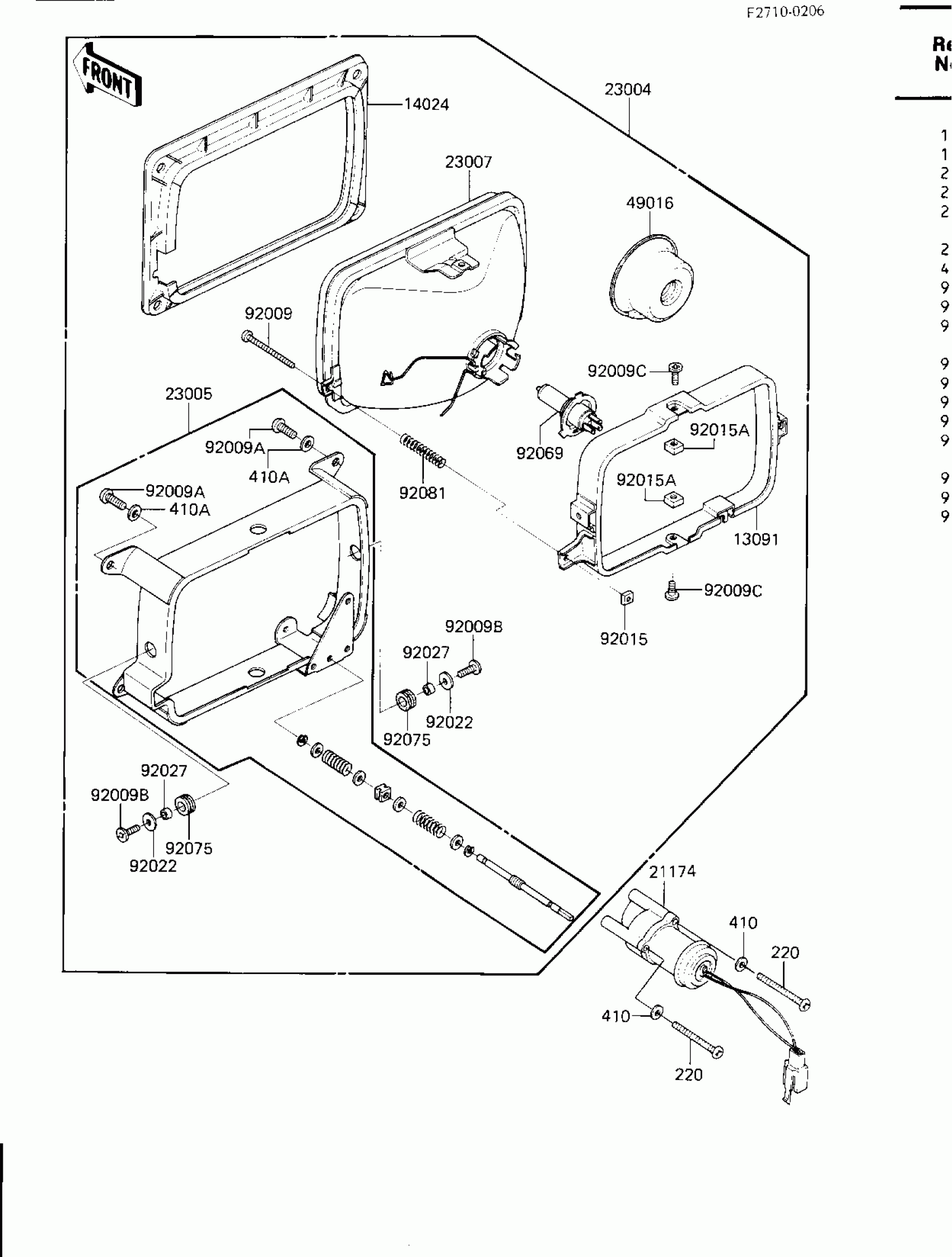

Kawasaki Voyager HEADLIGHT Diagram

HOLDER,HEAD LAMP BODY

COVER,HEAD LAMP LENS

MOTOR-ELECTRIC,FOCUS ADJUSTING

LAMP-HEAD

BODY-COMP-HEAD LAMP

LENS-COMP,HEAD LAMP

COVER-SEAL,HEAD LAMP

SCREW,4MM,FOCUS ADJUST

SCREW,5X16

SCREW,5X12

SCREW,5X8

NUT,4MM,FOCUS ADJUST

NUT,5MM

WASHER,5.2X16X1.2

COLLAR,WITH SLIT,5.2X8X5

BULB,12V 60/55W,H4

DAMPER,HEAD LAMP HOLDER

SPRING,HEAD LAMP LENS

SCREW-PAN-CROS

WASHER PLAIN 4MM

WASHER PLAIN
