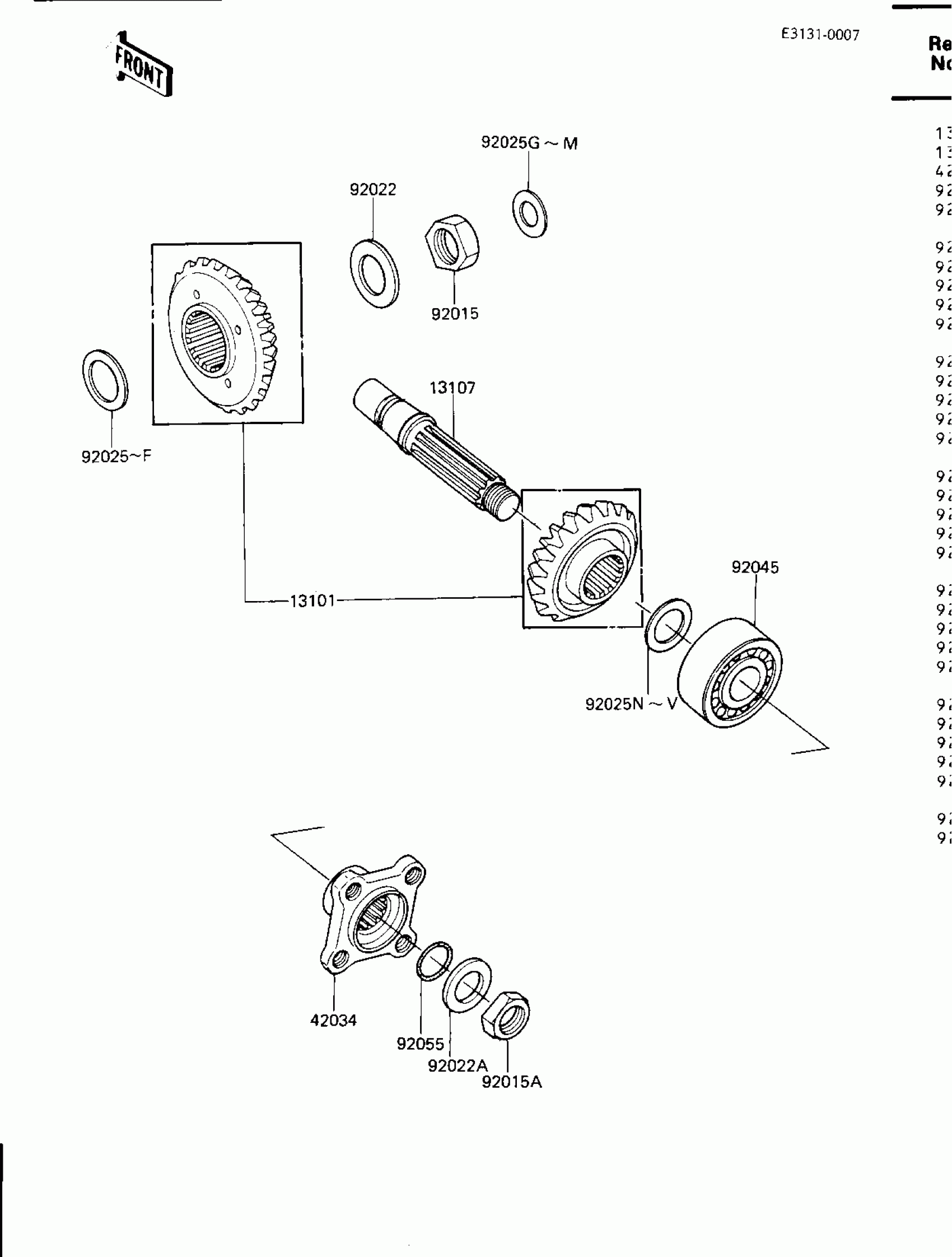

Kawasaki Voyager FRONT BEVEL GEARS Diagram
#
13101
GEAR-ASSY,BEVEL,FR
13101-5042
Unavailable
13107
SHAFT,BEVEL GEAR
13107-1029
Unavailable
42034
COUPLING,OUTPUT SHAFT
42034-1010
$128.76
92015
NUT,24MM
92015-1057
$15.65
92015A
NUT,20MM
92016-028
$9.91
92022
WASHER,SPRING,24MM
92022-1104
$9.69
92022A
WASHER,20.3X36X2.3
92022-1116
$8.58
92025
SHIM,30.3X40X0.6
92025-1006
Unavailable
92025A
SHIM,30.3X40X0.9
92025-1007
Unavailable
92025B
SHIM,30.3X40X1.20
92025-1008
Unavailable
92025C
SHIM,30.3X40X0.1
92025-1009
Unavailable
92025D
SHIM,30.3X40X0.15
92025-1010
Unavailable
92025E
SHIM,30.3X40X0.20
92025-1011
Unavailable
92025F
SHIM,30.3X40X0.30
92025-1012
Unavailable
92025G
SHIM,15.3X27.5X0.60
92025-1020
Unavailable
92025H
SHIM,15.3X27.5X0.90
92025-1021
Unavailable
92025I
SHIM,15.3X27.5X1.20
92025-1022
Unavailable
92025J
SHIM,15.3X27.5X0.10
92025-1023
Unavailable
92025K
SHIM,15.3X27.5X0.15
92025-1024
Unavailable
92025L
SHIM,15.3X27.5X0.20
92025-1025
Unavailable
92025M
SHIM,15.3X27.5X0.30
92025-1026
Unavailable
92025N
SHIM,25.3X36X0.15
92025-1688
Unavailable
92025O
SHIM,25.3X36X0.50
92025-1689
Unavailable
92025P
SHIM,25.3X36X0.60
92025-1690
Unavailable
92025Q
SHIM,25.3X36X0.70
92025-1691
Unavailable
92025R
SHIM,25.3X36X0.80
92025-1692
Unavailable
92025S
SHIM,25.3X36X0.90
92025-1693
Unavailable
92025T
SHIM,25.3X36X1.00
92025-1694
Unavailable
92025U
SHIM,25.3X36X1.10
92025-1695
Unavailable
92025V
SHIM,25.3X36X1.20
92025-1696
Unavailable
92045
BEARING-BALL,5305SH2CD2
92045-1147
$98.43
92055
RING-O,20.5MM
92055-1029
Unavailable
