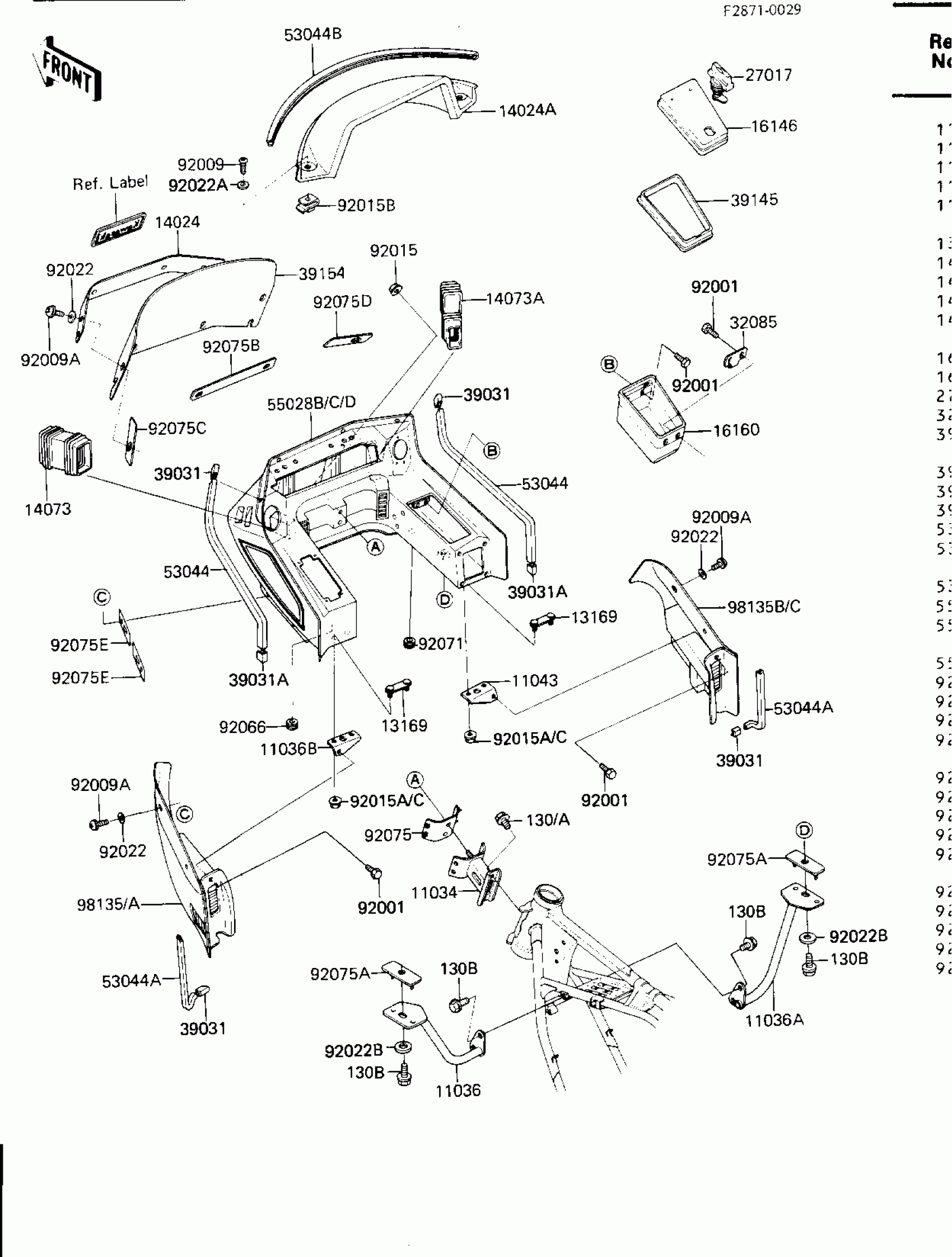

Kawasaki Voyager FAIRING Diagram
#
11034
BRACKET,COWLING
11034-1485
Unavailable
11036
BRACKET-A,COWLING UPP
11036-1994
Unavailable
11036A
BRACKET-A,COWLING UPP
11036-1995
Unavailable
11036B
BRACKET-A,COWLING,LH
11036-1996
Unavailable
11043
BRACKET-B,COWLING,RH
11043-1055
Unavailable
13169
PLATE,COWLING BRACKET
13169-1612
Unavailable
14024
COVER,WIND SHIELD
14025-1663
Unavailable
14024A
COVER,METER
14025-1784
Unavailable
14073
DUCT,COWLING,LH
14073-1101
$29.36
14073A
DUCT,COWLING,RH
14073-1102
$18.07
16146
COVER-ASSY,COWLING POCKET
16146-1014
$237.10
16160
BODY,STORAGE CASE
16160-1013
$149.22
27017
LOCK,BAG
27017-1103
$68.07
32085
STOPPER,COWLING COVER LOCK
32085-1159
$5.96
39031
CAP-END,COWLING TRIM
39031-1052
$7.22
39031A
CAP-END,COWLING TRIM
39031-1054
Unavailable
39145
TRIM-SEAL,STORAGE CASE
39145-1007
$12.79
39154
WINDSHIELD,COWLING
39154-1013
$730.41
53044
TRIM,COWLING,UPP
53044-1043
Unavailable
53044A
TRIM,COWLING,LWR
53044-1044
Unavailable
53044B
TRIM,METER COVER
53044-1113
$15.83
55028D
COWLING UPP,RED
55028-5176-T1
$1,857.73
92001
BOLT,UPSET-WP,6X12
92002-1884
$4.11
92009
SCREW,5X12,BLACK
92009-1182
$2.82
92009A
SCREW
92009-1664
$4.50
92015
NUT,FLANGED,8MM
92015-1408
$5.38
92015B
NUT,COVER,SIDE
92015-1261
Unavailable
92015C
NUT,FLANGED,6MM
92015-1367
$3.69
92022
WASHER,6.5X16X1
92022-1143
$3.92
92022A
WASHER,5.5X20X1.2
92022-1405
$4.31
92022B
WASHER,8.5X20X1.6
92022-1561
$4.31
92066
PLUG
92074-027
$9.82
92071
GROMMET,WIRING HARNESS
92071-1021
$5.83
92075
DAMPER,COWLING FITTING
92075-1179
$13.71
92075A
DAMPER,COWLING FITTING
92075-1180
$6.64
92075B
DAMPER,WIND SHIELD
92075-1466
$9.74
92075C
DAMPER,COWLING,UPP,LH
92075-1579
$11.13
92075D
DAMPER,COWLING,UPP,RH
92075-1580
$9.74
92075E
DAMPER,COWLING
92075-1583
$5.96
98135A
SUB-ASSY,COWLING,LWR,LH,RED
98135-1053-P5
$737.69
98135C
SUB-ASSY,COWLING
98135-1054-P5
$737.69
130A
BOLT-FLANGED
130D0814
Unavailable
130B
BOLT-FLANGED,8X16
130G0816
$1.10
