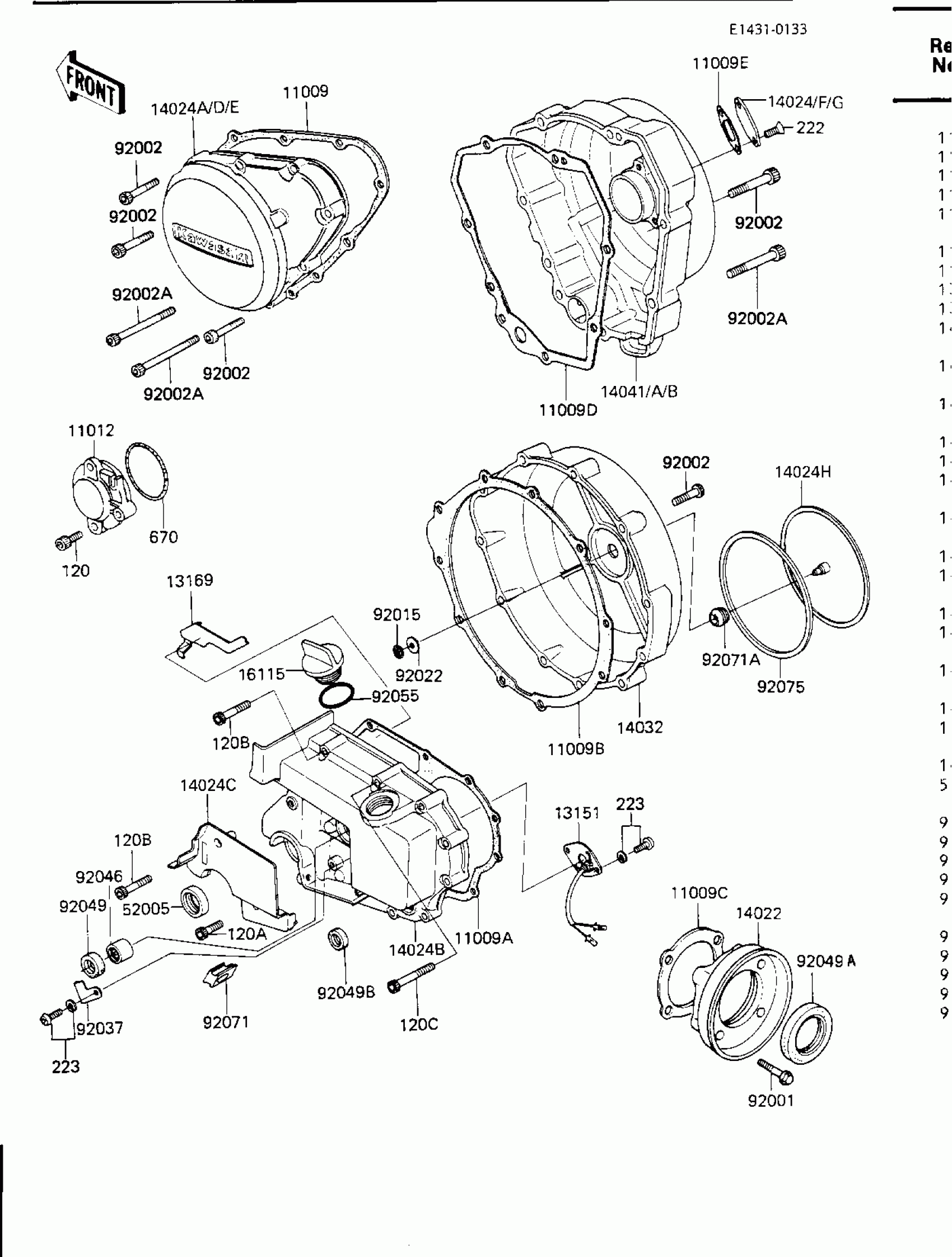

Kawasaki Voyager ENGINE COVERS Diagram
#
11009
GASKET,ENGINE COVER,LH
11009-1090
Unavailable
11009A
GASKET,MISSION COVER
11009-1091
Unavailable
11009B
GASKET,CLUTCH COVER
11009-1092
Unavailable
11009C
GASKET,BEARING CAP
11009-1159
$11.48
11009D
GASKET,GENERATOR COVER
11009-1269
Unavailable
11009E
GASKET,OIL INSPECTION COVER
11009-1270
Unavailable
11012
CAP,TIMING SPROCKET
11012-1060
Unavailable
13151
SWITCH-COMP,NEUTRAL
13151-1013
Unavailable
13169
PLATE,BAFFLE,BREATHER
13169-1131
Unavailable
14022
CAP-BEARING,OUTLET SHAFT
14022-1005
Unavailable
14024B
COVER,TRANSMISSION,SILVER #10
14025-1617
Unavailable
14024C
COVER,RELEASE
14025-1618
Unavailable
14024D
COVER,LH,GENERATOR
14025-1703
Unavailable
14024F
COVER,OIL INSPECTION
14025-1704
Unavailable
14024H
COVER,CLUTCH COVER
14025-1814
Unavailable
14032
COVER-CLUTCH
14032-1111
Unavailable
14041A
COVER-COMP,GENERATOR
14041-1024
Unavailable
16115
CAP-OIL FILLER
16115-1009
$14.30
52005
GAUGE,OIL LEVEL
52005-1017
Unavailable
92001
BOLT,FLANGED,6X28
92003-202
Unavailable
92002
BOLT,6X35
92002-1282
$5.21
92002A
BOLT,6X50
92002-1283
$5.21
92015
NUT,SPEED,5MM
92018-004
$4.39
92022
WASHER,5.5X20X1.2
92022-104
$4.31
92037
CLAMP,CABLE
92037-1152
$4.16
92046
BEARING-NEEDLE,7E-HK1412
92046-037
$21.68
92049
SEAL-OIL,TC14244.8
92049-1037
$9.89
92049A
SEAL-OIL,TC35527
92049-1038
$17.95
92049B
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,31.5X2.6
92055-049
$4.31
92071
GROMMET
92071-1051
$8.57
92071A
GROMMET,CLUTCH COVER
92071-1108
$6.10
92075
DAMPER,CLUTCH COVER
92075-1594
$28.64
120
BOLT-SOCKET
120Z0614
Unavailable
120A
BOLT-SOCKET,6X16
120Z0616
$3.63
120B
BOLT-SOCKET
120Z0635
$4.44
120C
BOLT-SOCKET
120Z0645
$3.58
222
SCREW-CSK-RD-CROS
222E0510
$3.16
223
SCREW-PAN-WS-CROS
223B0612
$1.00
670
O RING,45MM
670B3045
$3.71
