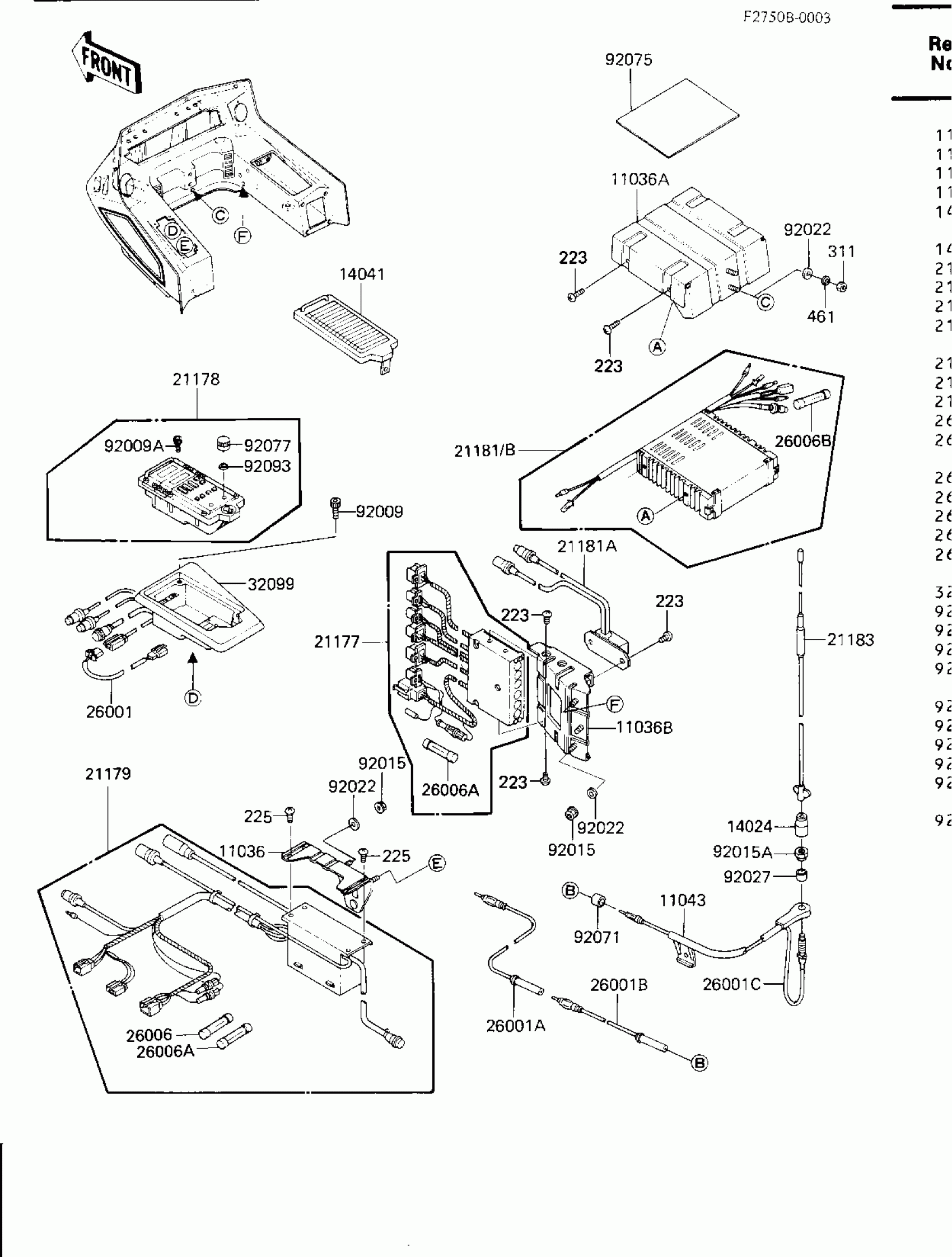

Kawasaki Voyager AUDIO A Diagram
#
Description
Price
11036
BRACKET-A,RADIO
11036-1955
Unavailable
11036A
BRACKET-A,AMPLIFIER
11036-1956
Unavailable
11036B
BRACKET-A,CONTROLER
11036-1957
Unavailable
11043
BRACKET-B,ANTENNA
11043-1296
Unavailable
14024
COVER-ASSY-ANTENNA
14025-5128
$21.64
14041
COVER-COMP,CONTROL SWITCH
14041-1023
$28.56
21177
CONTROLLER,MIXING
21177-1001
$313.18
21178
CONTROL-SWITCH
21178-1051
$201.26
21179
RADIO-TUNER
21179-1001
$526.31
21181B
AMPLIFIER
21181-1052
$194.79
21183
ANTENNA,ROD
21183-1051
$48.50
26001
HARNESS,CONTROL SWITCH
26001-1563
$4.05
26001A
HARNESS,ANTENNA
26001-1564
$11.66
26001B
HARNESS,ANTENNA
26001-1565
$11.89
26001C
COVER-ASSY-ANTENNA
14025-5128
$21.64
26006
FUSE,2A,L=30
26006-1001
Unavailable
26006A
FUSE,1A,L=30
26006-1055
Unavailable
32099
CASE,CONTROL SWITCH
32099-1053
$162.16
92009
SCREW,SOCKET,5MM
92009-1267
$0.82
92009A
SCREW,SOCKET,5X8
92009-1268
$0.67
92015
NUT,LOCK 6MM
92015-1262
$5.52
92015A
NUT,ANTENNA
92015-1313
$3.27
92022
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92027
COLLAR,ANTENNA
92027-1681
$2.21
92071
GROMMET,ANTENNA LEAD
92071-1057
$3.38
92075
DAMPER
92075-1076
$8.86
92077
KNOB,CASSETTE DECK
92077-1053
$4.57
92093
SEAL,CASSETTE DECK
92093-1155
$0.74
223
SCREW-PAN-WS-CROS
223B0510
$0.43
225
SCREW-PAN-WSP-CROS
225B0410
Unavailable
311
NUT-HEX,6MM,BLACK
311C0600
$0.43
461
WASHER-SPRING,6MM,BLACK
461K0600
$0.64
