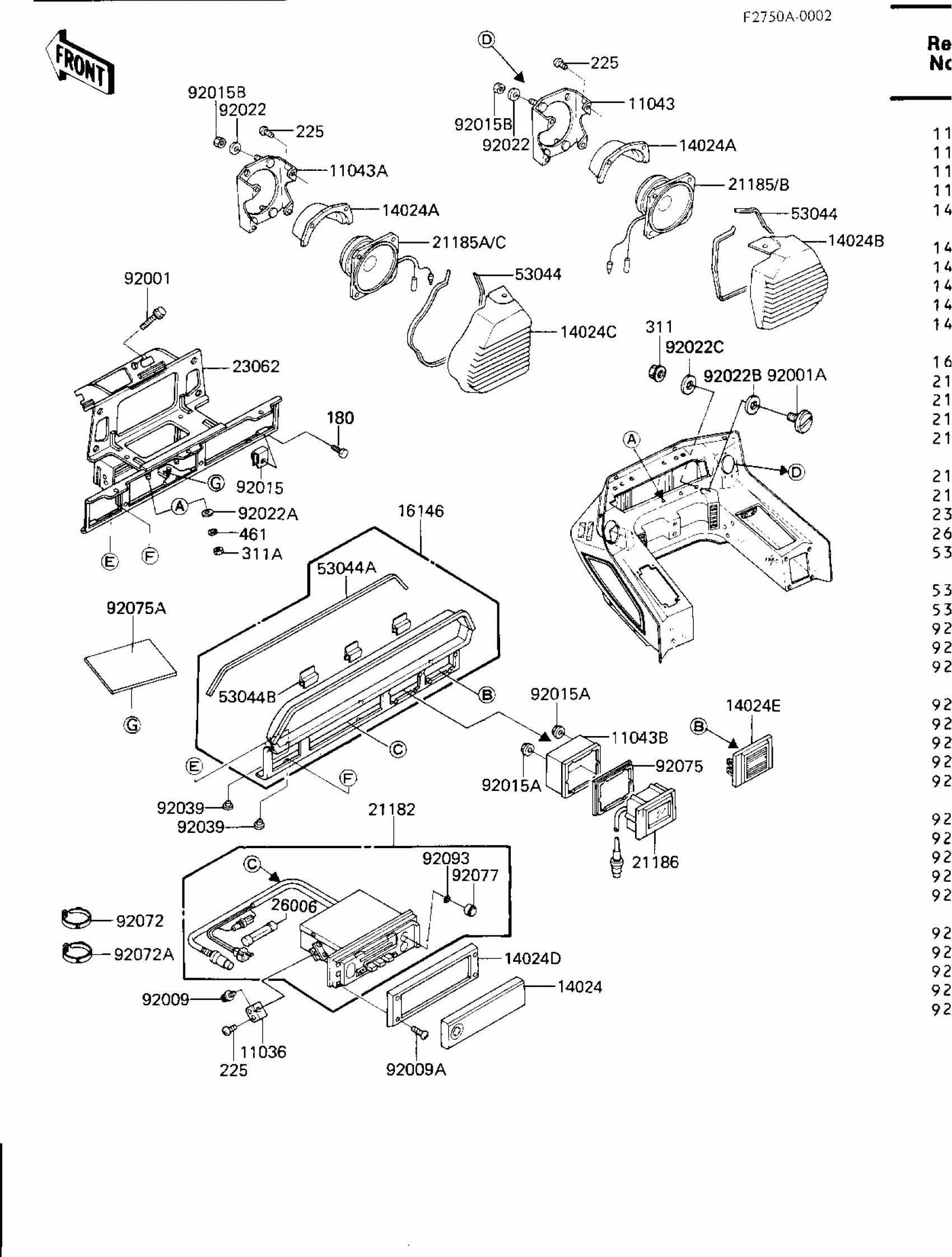

Kawasaki Voyager AUDIO Diagram
#
11036
BRACKET-A,CASETTE DECK
11036-1969
Unavailable
11043
BRACKET-B,SPEAKER,RH
11043-1321
Unavailable
11043A
BRACKET-B,SPEAKER,LH
11043-1322
Unavailable
11043B
BRACKET-B,RADIO INDICATOR
11043-1359
$7.83
14024
COVER,ANTI THEFT
14025-1685
Unavailable
14024A
COVER,SPEAKER
14025-1686
$3.69
14024B
COVER,SPEAKER,RH
14025-1780
Unavailable
14024C
COVER,SPEAKER,LH
14025-1781
Unavailable
14024D
COVER,CASSETTE DECK
14025-1789
Unavailable
14024E
COVER,CB INDICATOR
14025-1790
Unavailable
16146
COVER-ASSY,METER
16146-1054
$90.54
21182
CASSETTE-DECK
21182-1051
$540.08
21185B
SPEAKER,RH
21185-1053
Unavailable
21185C
SPEAKER,LH
21185-1054
Unavailable
21186
INDICATOR-DIGITAL,RADIO-TUNER
21186-1051
$162.84
23062
BRACKET-COMP,CASETTE DECK
23062-1034
$84.49
26006
FUSE,2A,L=30
26006-1001
Unavailable
53044
TRIM
53044-1112
$13.84
53044A
TRIM,METER COVER
53044-1116
$19.32
53044B
TRIM,METER COVER
53044-1118
$5.27
92001
BOLT,W/SP,6X18
92001-1764
Unavailable
92001A
BOLT,SPEAKER SWITCH
92001-1879
$7.84
92009
SCREW,PAN-CROS,W/WASHER
92009-1259
$4.67
92009A
SCREW,SOCKET,5X8
92009-1268
$0.67
92015
NUT
92015-1248
$9.97
92015A
NUT,FLANGED,4MM
92015-1319
$0.36
92015B
NUT,AIR CLEANER CAP
92016-062
$4.78
92022
WASHER,6.5X20X1.6
92022-125
$1.40
92022A
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92022B
WASHER,12.3X22X1.6
92022-1515
$3.96
92022C
WASHER,7X24X1.6
92022-228
$3.92
92039
RIVET
92039-1041
$3.65
92072
BAND,L=149
92072-031
$5.00
92072A
BAND,L=218
92072-032
$5.00
92075
DAMPER,INDICATOR DIGITAL
92075-1577
$3.66
92075A
DAMPER,CASETTE
92075-1607
$7.02
92077
KNOB,CASSETTE DECK
92077-1053
$4.57
92093
SEAL,CASSETTE DECK
92093-1155
$0.74
180
BOLT-UPSET-WS
180C0618
$2.95
225
SCREW-PAN-WSP-CROS
225B0410
Unavailable
311
NUT 6MM
311B0600
$0.93
311A
NUT-HEX,6MM,BLACK
311C0600
$0.43
461
WASHER-SPRING,6MM,BLACK
461K0600
$0.64
