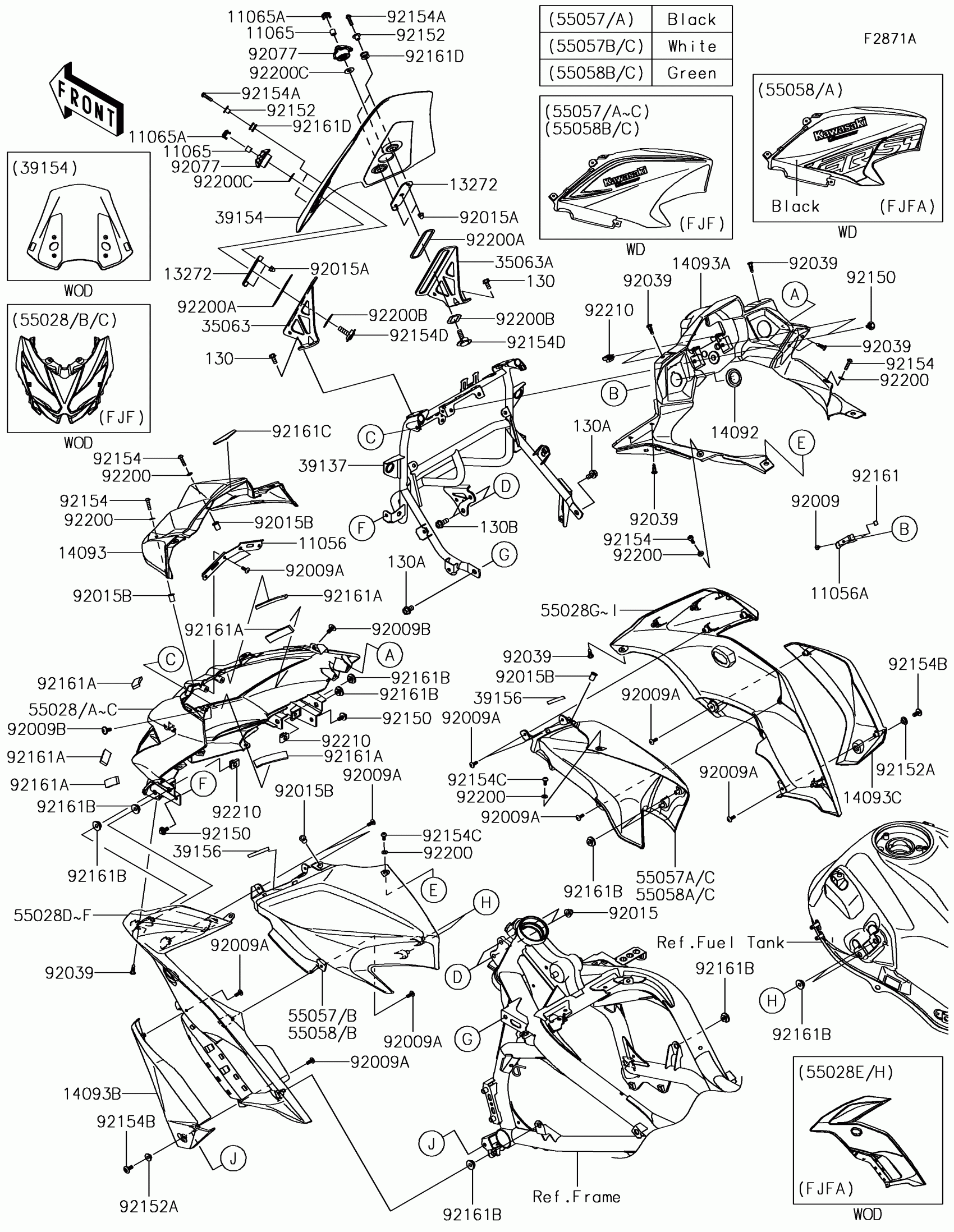

Kawasaki VERSYS® 650 ABS Cowling(FJF/FJFA) Diagram

#

Description
Price

11056

BRACKET,HEAD LAMP

11056-3975

$6.77

11056A

BRACKET,CAP COVER

11056-4313

$1.19

11065

CAP

11065-0156

$2.13

11065A

CAP,KNOB

11065-0734

$5.29

13272

PLATE,WINDSHIELD

13272-2333

$4.69

14092

COVER,DC SOCKET

14092-0214

$6.57

14093

COVER,METER,UPP

14093-0093

$135.69

14093A

COVER,METER

14093-0094

$131.51

14093B

COVER,RADIATOR,LH

14093-0095

$59.26

14093C

COVER,RADIATOR RH

14093-0096

$59.26

35063

STAY,WINDSHIELD,LH

35063-1321

$29.29

35063A

STAY,WINDSHIELD,RH

35063-1322

$29.29

39137

STAY-COMP,UPP COWL.

39137-0669

$176.71

39154

WINDSHIELD

39154-0361

$179.94

39156

PAD,6X70

39156-1920

$1.84

55028A

COWLING,UPP,C.L.GREEN

55028-0514-51P

$338.94

55028E

COWLING,SIDE,LH,M.S.BLACK

55028-0515-660

$253.19

55028H

COWLING,SIDE,RH,M.S.BLACK

55028-0516-660

$253.19

55058

COWLING,TANK SIDE,LH,M.S.BLACK

55058-5008-660

Unavailable

55058A

COWLING,TANK SIDE,RH,M.S.BLACK

55058-5009-660

Unavailable

92009

SCREW,TAPPING,4X8

92009-1155

$2.97

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,8X14

130BA0814

$2.16

130B

BOLT-FLANGED,8X20

130BA0820

$4.14

92009A

SCREW,TAPPING,5X14

92009-1197

$3.92

92009B

SCREW,6X14

92009-1662

$3.92

92015

NUT,CAP,8MM

92015-1151

$5.00

92015A

NUT,LOCK,FLANGE CAP,5MM

92015-1263

$6.57

92015B

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0709

$2.67

92077

KNOB,ADJUSTERS

92077-0034

$12.80

92150

BOLT,FLANGED,6X14

92150-1689

$3.94

92152

COLLAR

92152-0092

$6.61

92152A

COLLAR,6.5X10X5.6

92152-0445

$4.92

92154

BOLT,SOCKET,5X20

92154-0216

$2.12

92154A

BOLT,SOCKET,5X20

92154-0919

Unavailable

92154B

BOLT,SOCKET,6X14

92154-0932

$1.97

92154C

BOLT,SOCKET,5X12

92154-1421

$0.95

92154D

BOLT,PLATE,8X30

92154-1438

$14.13

92161

DAMPER

92161-0816

$3.21

92161A

DAMPER,15X70X5

92161-1380

$3.02

92161B

DAMPER

92161-1531

$3.02

92161C

DAMPER,10X65X2

92161-1758

$1.19

92161D

DAMPER

92161-1938

$2.49

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER

92200-0801

$4.41

92200B

WASHER,23.5X32X1

92200-0802

$3.02

92200C

WASHER,8.2X20X1

92200-1751

$5.98

92210

NUT,CLIP,6MM

92210-0933

$2.26
