Chassis Electrical Equipment(DLF)

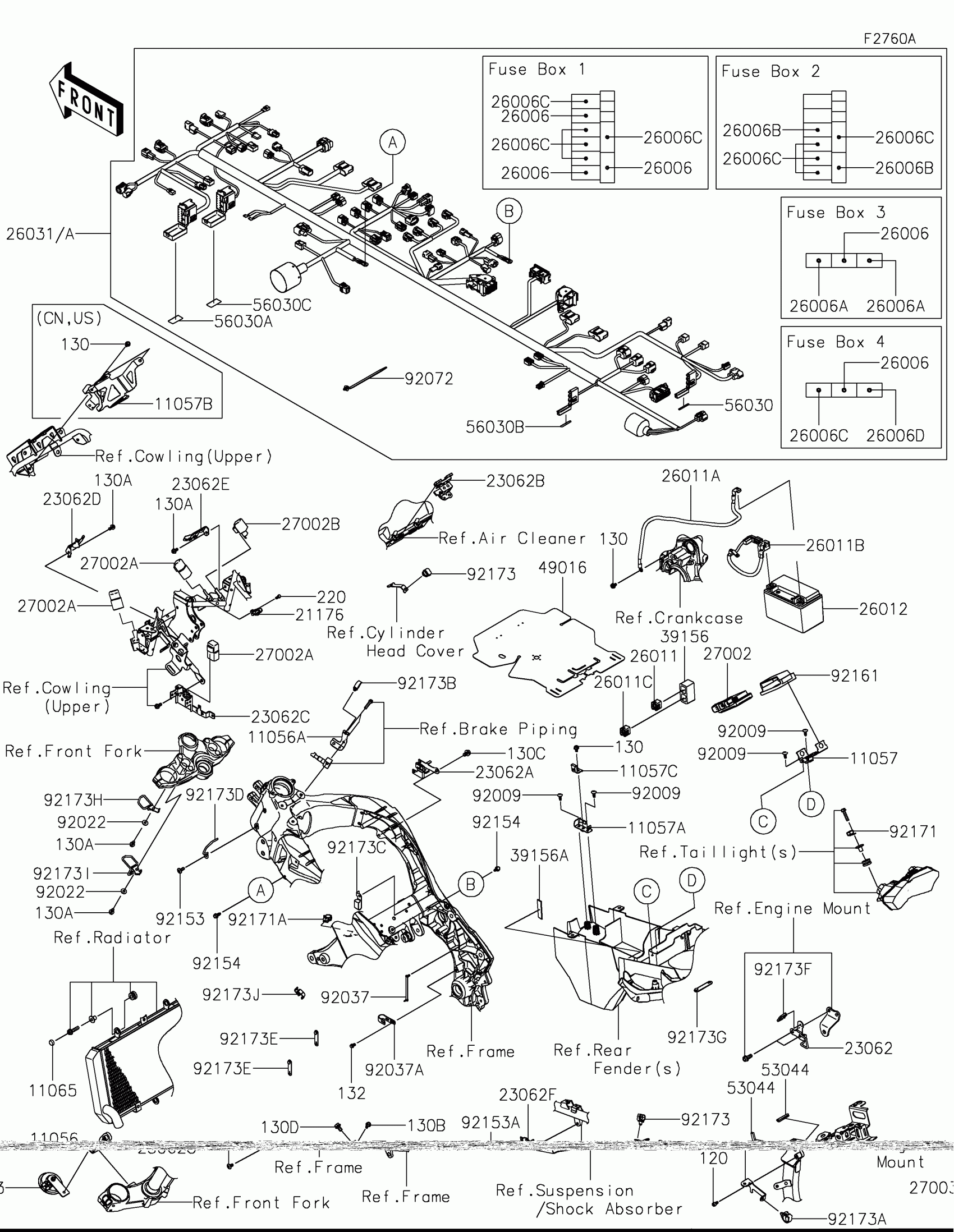

Kawasaki VERSYS® 1000 SE LT+ Chassis Electrical Equipment(DLF) Diagram
#
11056
BRACKET,ENGINE
11056-1478
$6.26
11056A
BRACKET,WHEEL SPEED SENSOR
11056-4165
$3.96
11057
BRACKET,RELAY BOX
11057-1688
$11.30
11057A
BRACKET,RR FENDER
11057-1707
$6.38
11057B
BRACKET,CANISTER
11057-1728
$29.81
11057C
BRACKET,WATERPROOF JOINT
11057-2454
$4.60
11065
CAP,BOLT
11065-0752
$2.30
21176
SENSOR,AIR TEMPERATURE
21176-0048
$26.91
23062
BRACKET-COMP,CABLE GUIDE
23062-0811
$18.95
23062A
BRACKET-COMP,A/C,RH
23062-1179
$20.77
23062B
BRACKET-COMP,A/C,RR
23062-1180
$12.58
23062C
BRACKET-COMP,IMMOBI AMP.
23062-1181
$18.06
23062D
BRACKET-COMP,DC PUT
23062-1200
$27.22
23062E
BRACKET-COMP,FOG SWITCH
23062-1201
$27.22
23062F
BRACKET-COMP,KECS HARNESS
23062-1202
$24.59
23062G
BRACKET-COMP,HORN
23062-1206
$11.02
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,25A,NATURAL
26006-0020
$6.57
26006B
FUSE,MINI BLADE,7.5A,BROWN
26006-0055
$6.57
26006C
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26006D
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD,CONNECTOR COVER
26011-0275
$14.13
26011A
WIRE-LEAD,BATTERY(-)
26011-1861
$50.62
26011B
WIRE-LEAD,BATTERY(+)
26011-1862
$53.78
26011C
WIRE-LEAD,DIAG CONNECTOR
26011-1901
$37.01
26012
BATTERY,YTX9-BS,12V 8AH
26012-0838
Unavailable
26031
HARNESS,MAIN
26031-2744
$1,238.08
26031A
HARNESS,MAIN
26031-2745
$1,238.08
27002
RELAY-ASSY
27002-0028
$143.14
27002A
RELAY-ASSY
27002-1086
$36.91
27002B
RELAY-ASSY,SIGNAL LAMP
27002-1097
$47.41
27003
HORN
27003-0142
$69.87
39156
PAD,DIAG CONNECTOR
39156-2354
$5.83
39156A
PAD,15X60X2
39156-2448
$1.27
49016
COVER-SEAL
49016-0667
$36.67
53044
TRIM,L=40
53044-0662
$4.74
56030
LABEL,FUSE BOX3
56030-0400
$4.37
120
BOLT-SOCKET,6X12
120CA0612
$1.71
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X12
130BA0612
$1.72
130B
BOLT-FLANGED,6X14
130BA0614
$1.20
130C
BOLT-FLANGED,8X12
130BA0812
$0.95
130D
BOLT-FLANGED,8X14
130BA0814
$2.16
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
220
SCREW-PAN-CROS,5X16
220AB0516
$1.74
56030A
LABEL,FUSE BOX1
56030-1432
$3.23
56030B
LABEL,FUSE BOX4
56030-1436
$3.23
56030C
LABEL,FUSE BOX2
56030-1438
$3.23
92009
SCREW,TAPPING
92009-1113
$3.92
92022
WASHER
92022-2247
$0.62
92037
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92037A
CLAMP,CABLE,STEEL SHEET
92037-2014
$1.97
92072
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92153
BOLT,SOCKET,6X16
92153-1526
$1.78
92153A
BOLT,SOCKET,6X12
92153-1948
$1.78
92154
BOLT,FLANGED,6X16
92154-0551
$1.63
92161
DAMPER,RELAY BOX
92161-0203
$10.37
92171
CLAMP
92171-0813
$8.68
92171A
CLAMP,EDGE CLIP
92171-1722
$8.05
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP
92173-0861
$3.02
92173B
CLAMP,HOLDER CLIP
92173-0868
$3.02
92173C
CLAMP,84MM
92173-1008
$5.33
92173D
CLAMP,IRON WIRE
92173-1199
$5.98
92173E
CLAMP,RUBBER PLATE
92173-1229
$3.94
92173F
CLAMP,CABLE CLIP
92173-1242
$1.71
92173G
CLAMP
92173-1526
$3.94
92173H
CLAMP,FRONT FORK,LH
92173-1914
$24.59
92173I
CLAMP,FRONT FORK,RH
92173-1915
$24.59
92173J
CLAMP
92173-1971
$3.21
