- ULTRA TOURING - 0985378
TUNNEL ULTRA TOURING 0985378 and EUROPEAN ULTRA TOURING E985378 (4943404340A005)

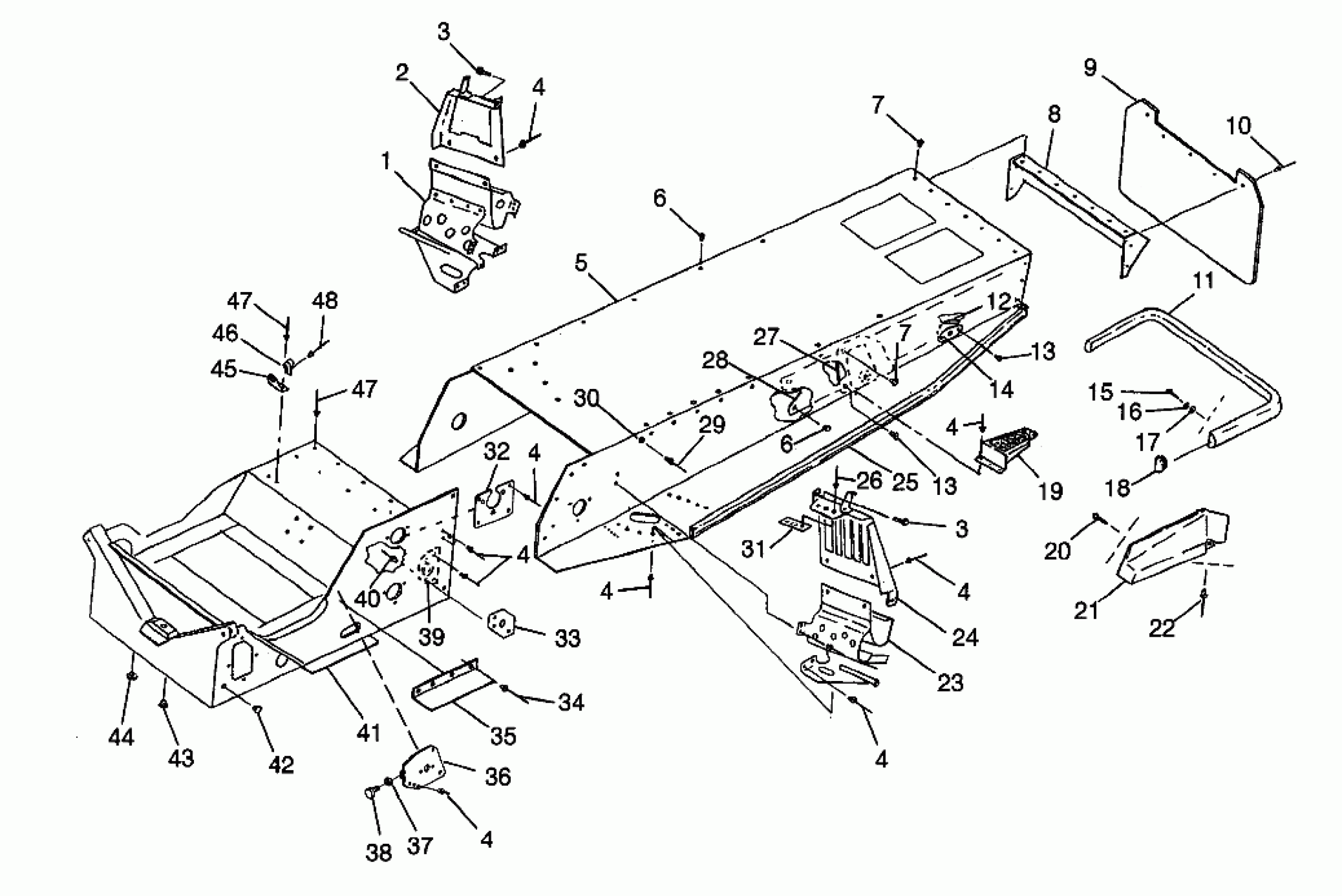

Polaris ULTRA TOURING - 0985378 TUNNEL ULTRA TOURING 0985378 and EUROPEAN ULTRA TOURING E985378 (4943404340A005) Diagram
#
1
FOOTREST,RH,BLK,(AGR X-12)
1012475
Unavailable
2
MT,RH,CONSOLE,BLK.
5242493-067
$5.75
3
SCREW(10)
7512057
$2.38
3
SCREW(10)
7512057
$2.38
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
TUNNEL,X12-133,W/COOLER,TR (Incl. 8, 12, 14, 28 & Heat Exchangers)
1012551
$366.65
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
7
RIVET,SEMI-TUBE,(50)
7661841
$1.49
7
RIVET,SEMI-TUBE,(50)
7661841
$1.49
8
PANEL,R.CLOSEOFF
5240968-067
$36.31
9
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
10
POP RIVET(50)
7621418
$1.49
11
BUMPER,REAR Substituted by 2670168-067
2670168
Unavailable
11
BUMPER,SIDESTRIP,VLT C
5811264-198
Unavailable
12
PLATE,TUNNEL SUPPORT
5211660-067
$3.17
13
RIVET(50)
7661846
$1.99
13
RIVET(50)
7661846
$1.99
14
BRKT,U-TENSIONER,BLK.
5211590-067
$7.38
15
SCREW(10)
7515159
$4.79
16
LOCK WASHER(10)
7552801
$1.59
17
WASHER(10)
7558301
$1.49
18
CAP,BUMPER
5431995-070
Unavailable
19
PAD,FOOTREST GRIP
5830114
$35.24
19
FOOTREST,RH, W/GRIP PAD
1012543
$58.39
19
FOOTREST,LH, W/GRIP PAD
1012542
$66.39
20
SCREW(10)
7512091
$3.99
21
SKIRT,SNO.TRNG,LH
5432131-070
$33.91
21
SKIRT,SNO.TRNG,RH
5432132-070
$30.95
22
RIVET(50)
7621472
$1.49
23
FOOTREST,LH,BLK,(AGR X-12)
1012474
Unavailable
24
MT,LH,CONSOLE,BLK.
5242492-067
Unavailable
25
EDGE,LH,TUNNEL,BLK
5333529-067
Unavailable
25
EDGE,RH,TUNNEL,BLK
5333530-067
Unavailable
26
RIVET(50)
7661850
$1.49
27
PAD,LH,RR SUSP,X12,BLK
1012439-067
$15.67
27
PAD,RH,RR SUSP,X12,BLK
1012440-067
$13.68
28
BRACE,LH,LOW.TUNNEL
5241485
$25.59
28
BRACE,RH,LOW.TUNNEL
5241486
$25.59
29
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
30
SNAP-MALE(10)
7080227
Unavailable
31
PLATE,CLUTCH GUARD MT.
1012441
Unavailable
32
PLATE,BRG.SUPPORT,B'HD.
5211806-067
$10.71
33
PLATE,F.SUSP,OUT,X-12,BLK
5211746-067
$13.39
34
RIVET(50)
7621452
$1.49
35
GUARD,ADAPTER GUIDE
5222857
$12.94
36
STOP,TORQUE,Z
1012644
$17.43
37
NUT,HEX(10)
7542414
$4.79
38
STOP,TORQUE,COARSE
3110058
Unavailable
39
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
39
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
40
RIVET(50) Substituted by 7661130
7661643
Unavailable
41
BULKHEAD,BLK
1012463-067
$436.51
42
PLUG, HOLE(10)
7080416
$5.65
43
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
44
PLUG-HOLE
7080398
$4.84
45
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
46
GUIDE, RECOIL
5431385
$10.51
47
RIVET-3/16-.090-.290
7661637
$1.49
47
RIVET-3/16-.090-.290
7661637
$1.49
48
RIVET,3/16X.402(50)
7621432
$1.49
