- ULTRA TOURING - 0985378
SUSPENSION - E985378 (4943404340c001)

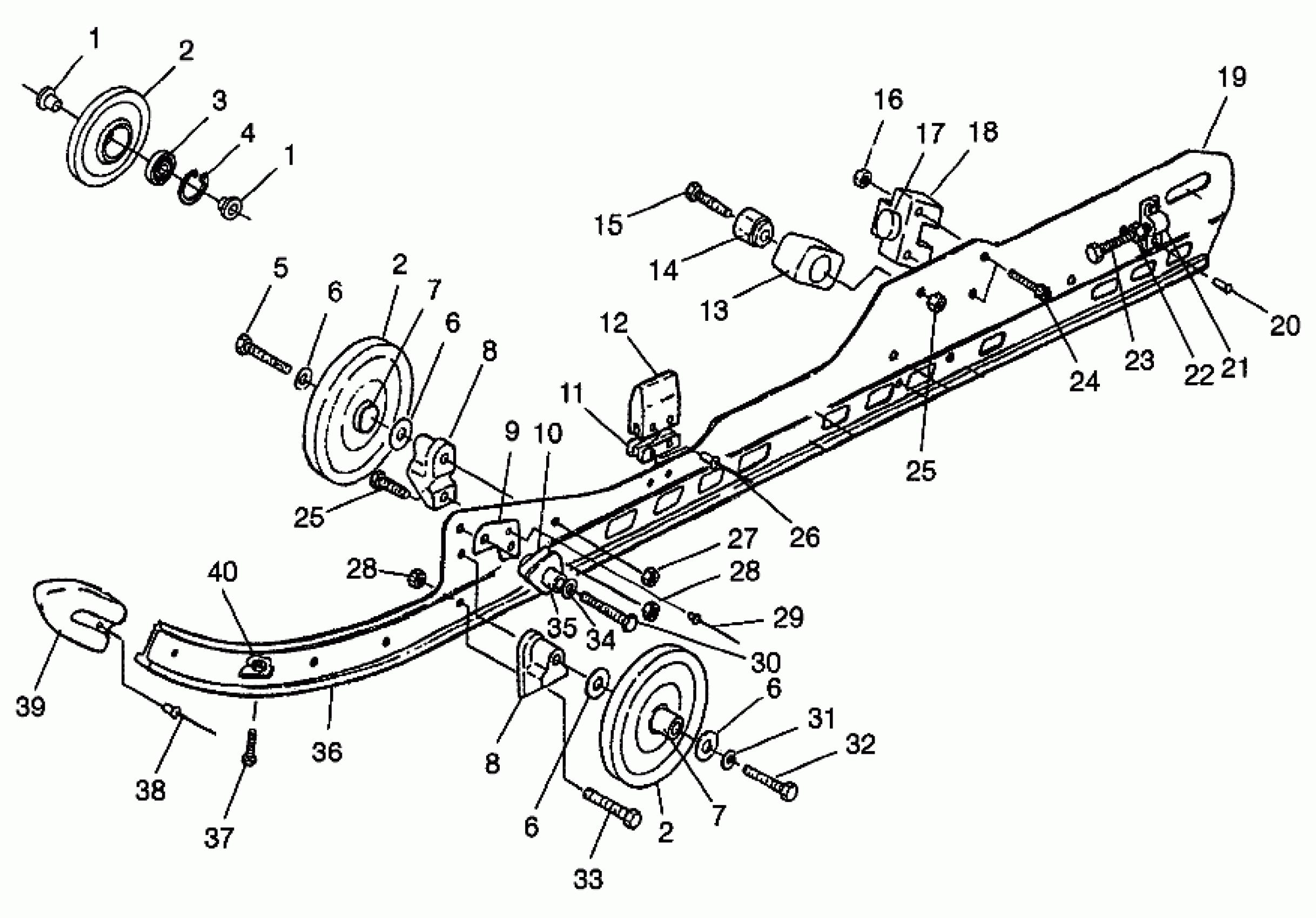

Polaris ULTRA TOURING - 0985378 SUSPENSION - E985378 (4943404340c001) Diagram
#
1
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
1
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
2
WHEEL, IDLER (Incl. 1-4)
1543018
$56.65
2
WHEEL, IDLER (Incl. 1-4)
1543018
$56.65
2
WHEEL, IDLER (Incl. 1-4)
1543018
$56.65
3
BEARING (1 per Wheel)
3514303
$11.99
4
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
5
BOLT(10)
7512578
Unavailable
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
7
SPACER, WHEEL
5333116
$7.99
7
SPACER, WHEEL
5333116
$7.99
8
SPACER
5630399
$11.99
8
SPACER
5630399
$11.99
9
PLATE,RAIL SUPPORT
5211786
$5.95
10
BLOCK,SPRING SLIDER
5431924
$10.65
11
BRKT,BUMPER SUPPORT
5240946
Unavailable
12
BUMPER,JOUNCE,RAIL,LT
5811065
Unavailable
13
BUMPER,F.PIVOT ARM
5410925
$12.94
14
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
15
BOLT,(10)
7515545
$5.59
16
NUT, LOCK(10)
7542103
$5.59
17
BUMPER,R.PIVOT ARM
5411041
$11.59
18
BLOCK,R.PIVOT ARM STOP
5131111
Unavailable
19
RAIL ASM,LH,(XTRA SKS) Substituted by 1541438 (Incl. 11,12, 20,21,39)
1540943
Unavailable
19
RAIL ASM,RH,(XTRA SKS) Substituted by 1541439 (Incl. 11,12,20,21,39)
1540944
Unavailable
20
RIVET,(50)
7621501
$2.39
21
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
22
NUT,TENSIONER ADJ.
5020943
$20.22
23
BOLT, ADJUSTER(10)
7515455
$29.99
24
SCREW(10)
7515156
$3.99
25
NUT LOCK(10)
7542411
$3.19
25
NUT LOCK(10)
7542411
$3.19
26
RIVET,(50)
7621488
$3.99
27
NUT, NYLOCK(10)
7542525
$4.79
28
NUT-LOCK(10)
7542439
$1.49
28
NUT-LOCK(10)
7542439
$1.49
29
RIVET(50)
7661845
$1.49
30
BOLT(10)
7515538
$6.39
31
WASHER LOCK(10)
7553101
$3.99
32
BOLT,(10) Substituted by 7512508
7517379
$7.14
33
BOLT(10)
7512404
$3.99
34
WASHER ,(10)
7555976
$3.99
35
Bushing
5010332
$11.99
36
DESC NOT_AVAILABLE
5521442
Unavailable
37
BOLT(10)
7515175
$3.99
38
RIVET(50)
7621435
$1.49
39
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
40
NUT-LOCK(10)
7542122
$1.49
