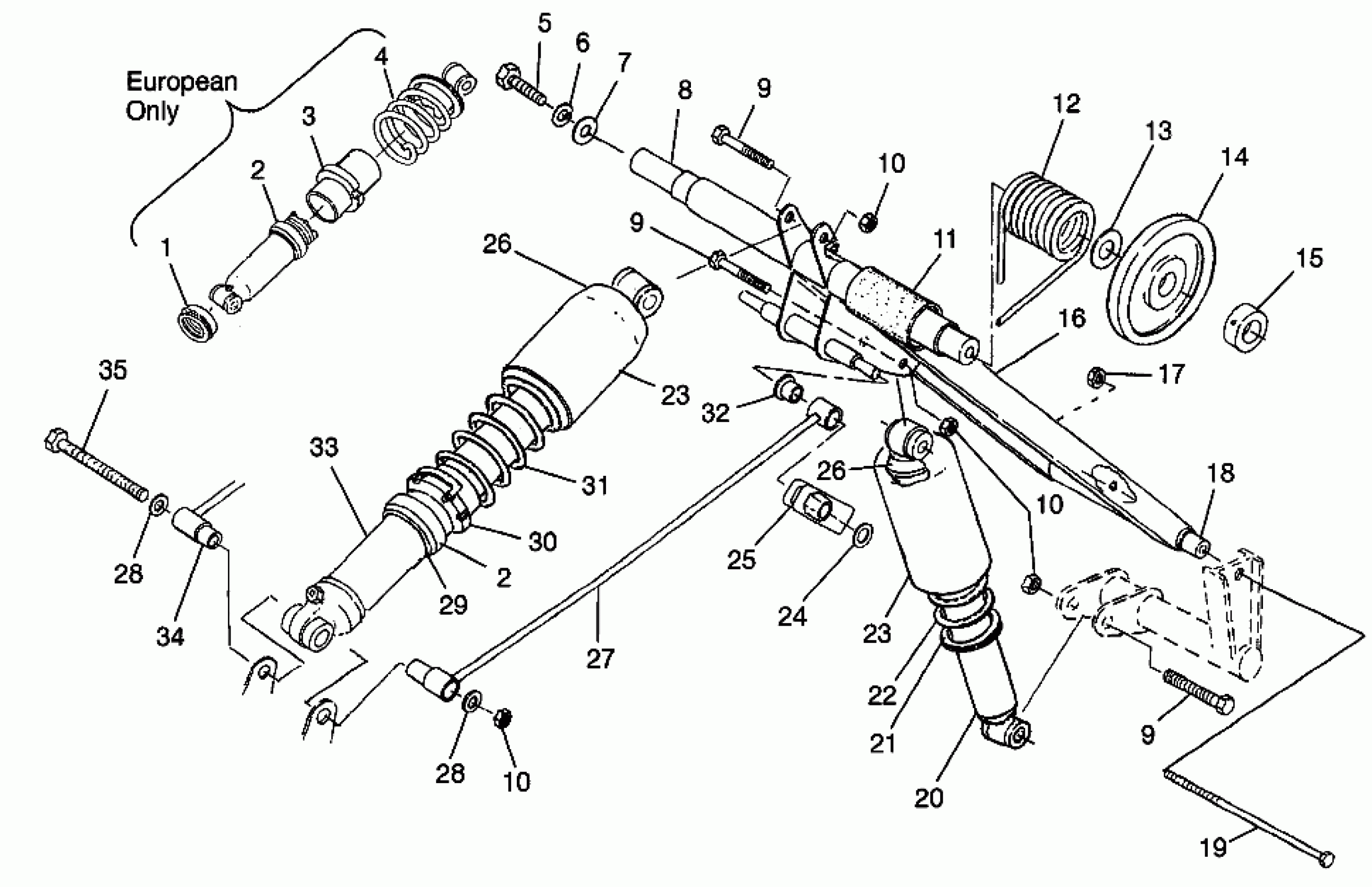

Polaris ULTRA TOURING - 0985378 REAR TORQUE ARM - E985378 (4943404340c004) Diagram

#

Description
Price

1

GUIDE,ADAPTER NUT (Euro)

5131276

Unavailable

2

RETAINER,SPRING,HVY BODY

1500091

$27.83

2

RETAINER,SPRING,HVY BODY

1500091

$27.83

3

ADAPTER,NUT,SPRING-RET. Substituted by 2871439 (Euro)

5131274

Unavailable

4

SPRING,COMP,190#,BLK (Euro)

7041491-067

Unavailable

5

BOLT(10)

7512589

$1.59

6

WASHER-LOCK, 7/16-B

7552614

$1.59

7

WASHER ,(10)

7555984

$2.39

8

SHAFT,RTA,UPPER

5020814

Unavailable

9

BOLT Substituted by 7515491

7515433

$1.59

9

BOLT Substituted by 7515491

7515433

$1.59

9

BOLT Substituted by 7515491

7515433

$1.59

10

NUT LOCK(10)

7542411

$3.19

10

NUT LOCK(10)

7542411

$3.19

10

NUT LOCK(10)

7542411

$3.19

11

SLEEVE,TORSION SPRING

5431923

$6.39

12

SPRING,RH,TORSION,BLK.

7041395-067

Unavailable

12

SPRING,LH,TORS,.421,BLK.

7041406-067

$95.19

12

SPRING,RH,TORS,.421,BLK.

7041407-067

Unavailable

12

SPRING,LH,TORS,.437/77DG,BK

7041487-067

$113.32

12

SPRING,RH,TORS,.437/77DG,BK

7041488-067

Unavailable

12

SPRING,LH,TORSION,BLK.

7041394-067

Unavailable

13

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

14

BEARING,CHAINCASE

3514305

$19.99

14

RET.RING-TRUARC

7718407

$4.79

14

Wheel, Carrier

1543023

Unavailable

15

COLLAR,BRG LOCK

5010404

Unavailable

15

SCREW-SET(10)

7512257

$3.99

16

ARM,RR TORQUE(XTRA 12),BLK

1541029-067

Unavailable

17

NUT,FLEX LOC(10)

7542507

$3.99

18

Shaft

5020898

Unavailable

19

Screw

7517248

$13.19

20

SHOCK,AFX,X12,RR TRK

7041548

Unavailable

21

SPACER,SHOCK RETAINER(10)

5210953

$6.39

22

SPRING,COMPRESSION

7041484-067

$214.99

23

SHIELD,SPRING

5410874

$20.22

23

SHIELD,SPRING

5410874

$20.22

24

CLIP-PUSH ON

7080394

$2.39

25

ROLLER,SPRING,ADJ.

5431909

$5.75

26

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

26

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

27

ROD, SHOCK

1541014-067

$92.99

28

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

28

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

29

RETAINER,SPRING

5020911

Unavailable

30

RING,SPRING PRELOAD ADJ.

5431734

$52.60

31

SPRING,.331 COMP(LT),BLK.

7041404-067

$144.99

32

BUSHING, NYLON

3573910

Unavailable

33

SHOCK,F.TRK,X-12

7041594

Unavailable

34

Spacer

5333028

$1.59

35

BOLT(10)

7515378

$1.98
