FRONT SUSPENSION and SKI - 0985378 (4943404340b007)

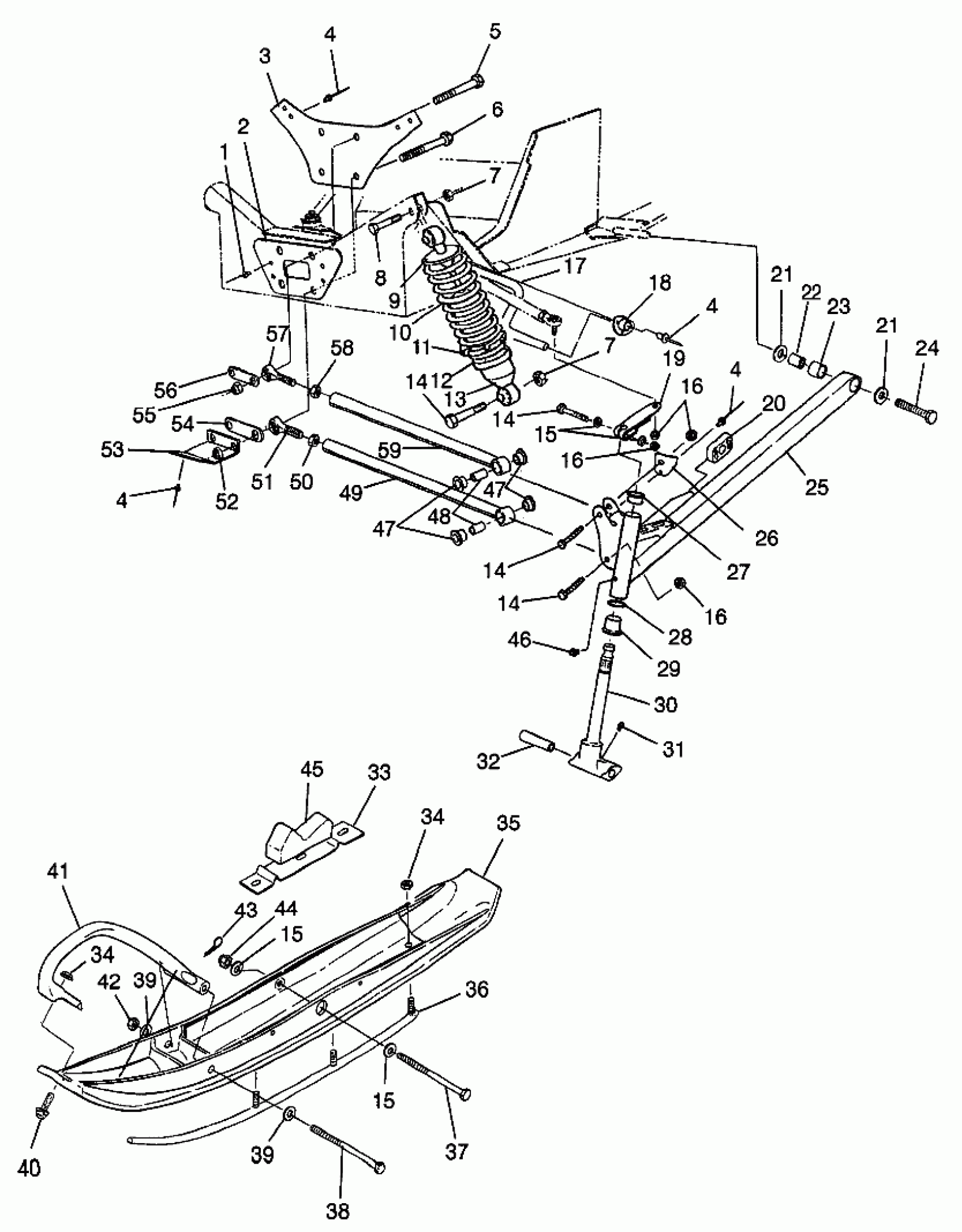

Polaris ULTRA TOURING - 0985378 FRONT SUSPENSION and SKI - 0985378 (4943404340b007) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
REINF,R.SHOCK MT.PLATE
5241395-067
$3.46
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
5
BOLT(10)
7512582
$8.79
6
BOLT(10)
7512684
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BOLT(10) Substituted by 7515415
7515515
Unavailable
9
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
10
SPRING,IFS,10.75/140#
7041549-067
Unavailable
11
RING,SPRING PRELOAD ADJ.
5431734
$52.60
12
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
13
SHOCK,GAS,IFS,AFX
7041524
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
15
WASHER(10) Substituted by 7555832
7555851
Unavailable
15
WASHER(10) Substituted by 7555832
7555851
Unavailable
15
WASHER(10) Substituted by 7555832
7555851
Unavailable
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
17
BAR,SWAY,5/8(X-12)BLK
5224748-067
Unavailable
18
BUSHING,SWAYBAR,5/8 Substituted by 5432038
5432885
$19.84
19
ARM,STRG,BLK
5241560-067
Unavailable
20
SLIDE,SWAYBAR,5/8
5432331
$28.32
21
WASHER(10)
7555721
$1.49
21
WASHER(10)
7555721
$1.49
22
TUBE, BUSHING
5010310
$9.70
23
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
24
BOLT(10)
7512557
$7.60
25
ARM,TRLG,LH (Incl. 22,23)
1822384
Unavailable
25
ARM,TRLG,RH (Incl. 22,23)
1822386
Unavailable
26
STOP,LH,STRG,BLK.
5241569-067
$7.27
26
STOP,RH,STRG,BLK.
5241570-067
$7.27
27
BUSHING-FLANGE
3573909
$2.39
28
WASHER SPECIAL(10)
7556509
$1.59
29
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
30
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
31
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
32
BUSHING,PIVOT,(10)
5010158
$19.99
33
SUPPORT,SKI,RUBBER,BLK
5241912-067
Unavailable
34
NUT LOCK(10)
7542321
$1.49
34
NUT LOCK(10)
7542321
$1.49
35
SKI ASM,COMP,(PLASTIC) Substituted by 1820506-070
1820506
Unavailable
36
KIT,SKAG,7/16,3",COMP. (Incl. 34)
2871815
Unavailable
37
SCREW,(10)
7512596
$19.99
38
BOLT(10)
7515514
$7.19
39
WSHR-.813X.406X.105-Y
7555832
$2.39
39
WSHR-.813X.406X.105-Y
7555832
$2.39
40
BOLT(10)
7515307
$3.99
41
TOE,PLASTIC SKI Substituted by 5432209-070
5432209
$40.46
42
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
43
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
44
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
45
STOP,RUBBER
5411094
Unavailable
46
ZERK,FITTING,THREADED(10)
7080433
$1.49
47
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
47
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
48
BUSHING-RADIUS ROD,(10)
5010127
$7.99
49
ROD,RAD,LOWER,BLK.
1822383-067
Unavailable
50
NUT-JAM(10)
7542711
$2.39
51
ROD END Substituted by 7061027
7060162
$48.56
52
NUT FLEX,(10)
7542703
Unavailable
53
SUPPORT,PANBRAKE,LOW.
5240699-067
Unavailable
54
STRAP,SPACER BOTTOM
5211345
$12.99
55
NUT, LOCK,(10)
7542503
$10.39
56
STRAP,SPACER TOP
5211344
$7.27
57
ROD END
7060163
Unavailable
58
NUT JAM(10)
7542520
$2.39
59
ROD,RAD,UPPER
1822381-067
Unavailable
