- ULTRA TOURING - 0985378
CYLINDER - 0985378 (4943404340c011)

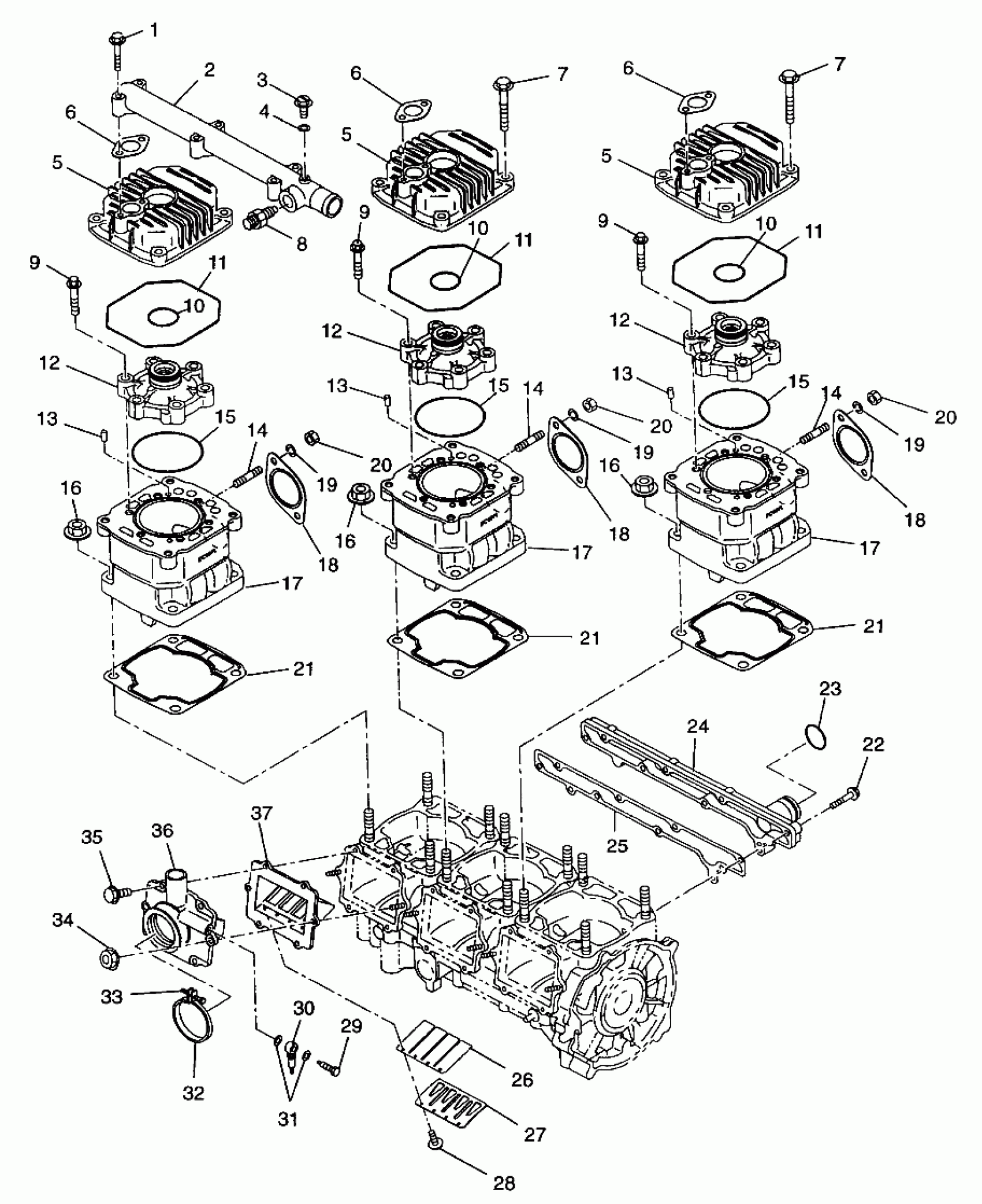

Polaris ULTRA TOURING - 0985378 CYLINDER - 0985378 (4943404340c011) Diagram
#
1
BOLT
3080109
Unavailable
2
MANIFOLD,OUTLET,WATER
3085115
Unavailable
3
PLUG, AIR VENT Substituted by 7517266 (Air Vent)
3083350
Unavailable
4
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
5
COVER, HEAD
3085108
Unavailable
5
COVER, HEAD
3085108
Unavailable
5
COVER, HEAD
3085108
Unavailable
6
GASKET(10)
3082937
Unavailable
6
GASKET(10)
3082937
Unavailable
6
GASKET(10)
3082937
Unavailable
7
Bolt, Flange
3084437
Unavailable
7
Bolt, Flange
3084437
Unavailable
8
SENSOR,TEMPERATURE
4110179
Unavailable
9
BOLT, FLANGE ,(10)
3084435
Unavailable
9
BOLT, FLANGE ,(10)
3084435
Unavailable
9
BOLT, FLANGE ,(10)
3084435
Unavailable
10
O-RING,(CYL.HD.)
3085110
Unavailable
10
O-RING,(CYL.HD.)
3085110
Unavailable
10
O-RING,(CYL.HD.)
3085110
Unavailable
11
O-RING,(HD.COVER)
3085111
Unavailable
11
O-RING,(HD.COVER)
3085111
Unavailable
11
O-RING,(HD.COVER)
3085111
Unavailable
12
HEAD,CYLINDER
3085245
Unavailable
12
HEAD,CYLINDER
3085245
Unavailable
12
HEAD,CYLINDER
3085245
Unavailable
13
PIN, DOWEL Substituted by 3086838
3080103
$7.14
13
PIN, DOWEL Substituted by 3086838
3080103
$7.14
13
PIN, DOWEL Substituted by 3086838
3080103
$7.14
14
STUD,(10)
3085326
Unavailable
14
STUD,(10)
3085326
Unavailable
14
STUD,(10)
3085326
Unavailable
15
O-RING,(CYL.)
3085112
Unavailable
15
O-RING,(CYL.)
3085112
Unavailable
15
O-RING,(CYL.)
3085112
Unavailable
16
NUT-FLANGE(10)
3082911
$1.99
16
NUT-FLANGE(10)
3082911
$1.99
16
NUT-FLANGE(10)
3082911
$1.99
17
CYLINDER (Incl. 13,14)
3085242
$754.99
17
CYLINDER (Incl. 13,14)
3085242
$754.99
17
CYLINDER (Incl. 13,14)
3085242
$754.99
18
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
18
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
18
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
19
WASHER LOCK ,(10)
3080530
$3.19
19
WASHER LOCK ,(10)
3080530
$3.19
19
WASHER LOCK ,(10)
3080530
$3.19
20
NUT(10)
3080285
Unavailable
20
NUT(10)
3080285
Unavailable
20
NUT(10)
3080285
Unavailable
21
GASKET,CYL.(NA)
3085243
Unavailable
21
GASKET,CYL.(NA)
3085243
Unavailable
21
GASKET,CYL.(NA)
3085243
Unavailable
22
BOLT, FLANGE Substituted by 3086751
3084177
Unavailable
23
O-RING (W/P Outlet)
3084461
Unavailable
24
COVER,WATER INLET
3085246
$87.19
25
GASKET,COVER,INLET WATER
3085247
$10.71
26
VALVE, REED
3084563
$19.83
27
STOPPER
3085274
Unavailable
28
SCREW, REED
3084565
$3.29
29
BOLT-BANJO
3083137
Unavailable
30
VALVE, CHECK
3083894
Unavailable
31
WASHER(10) Substituted by 7555998
3083138
Unavailable
32
BAND ASM. (Incl. 33)
3083166
$19.84
33
SCREW,(10)
3081497
$2.39
34
NUT, FLANGE(10)
3083856
$2.39
35
Bolt, Flange
3084126
Unavailable
36
ADAPTER
3085248
Unavailable
37
REED VALVE ASM. (Incl. 26-28)
3085249
Unavailable
