CONSOLE and WIRE HARNESS - E985378 (4943404340b005)

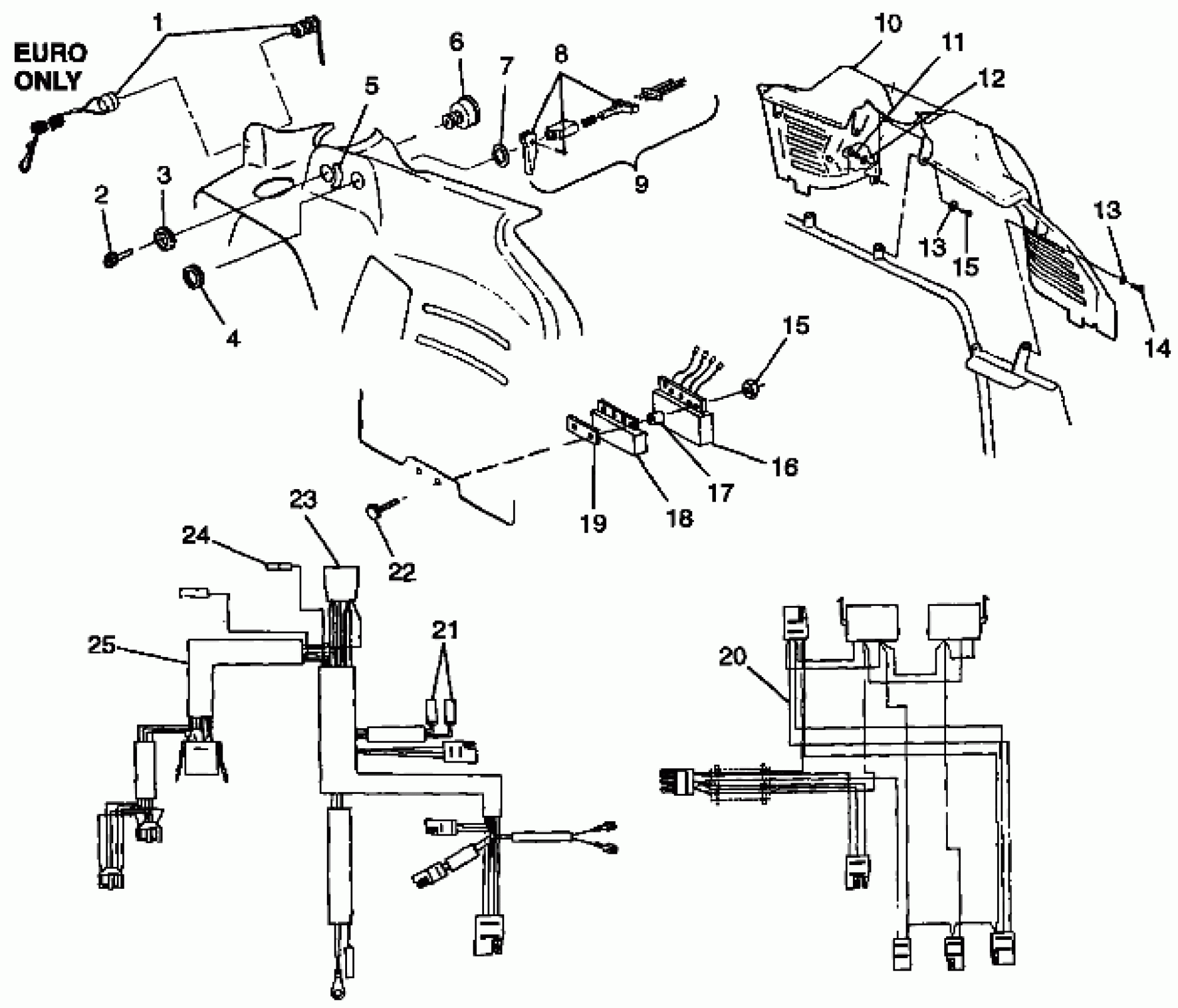

Polaris ULTRA TOURING - 0985378 CONSOLE and WIRE HARNESS - E985378 (4943404340b005) Diagram
#
Description
Price
1
SWITCH,TETHER Substituted by 2870668 (EURO)
4110156
$84.99
2
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid
5410611
Unavailable
3
NUT,IGNITION
7547035
$8.79
4
Nut
7080229
$19.99
5
DECAL,IGN.W/EL.START
7074203
Unavailable
6
KIT,IGN.SWITCH (Incl. 2)
2200358
$76.89
7
WASHER-LOCK(10)
7571610
$3.99
8
KIT,CHOKE CONTROL
2200189
$20.22
9
CABLE, CHOKE
7080283
$109.99
10
CONSOLE,BASIC
5431781
Unavailable
11
SCREW(10)
7512069
Unavailable
12
WASHER(10)
7555792
$4.79
13
WASHER(10) Substituted by 7558301
7555776
Unavailable
13
WASHER(10) Substituted by 7558301
7555776
Unavailable
14
SCREW(10)
7512252
Unavailable
15
NUT(10)
7541925
$1.49
15
NUT(10)
7541925
$1.49
16
SWITCH,EXH.TEMP
4110197
$89.99
17
Spacer
5020864
Unavailable
18
REGULATOR,(14.3VAC),LR-7
4060123
Unavailable
19
HEAT SINK
5210650
Unavailable
20
HARNESS,HANDLEBAR
2460506
Unavailable
21
Housing
4020153
$1.49
22
SCREW(10) Substituted by 7517263
7512092
Unavailable
23
Housing w/Receptacle
4020057
$3.51
24
HOUSING
4020133
Unavailable
25
HARNESS,MAIN WIRE(AGR TOUR-ES) (US)
2460578
Unavailable
25
HARNESS,MAIN WIRE,EUR(2460578) (Euro)
2460589
$92.37
