- ULTRA TOURING - 0985378
CHAINCASE - 0985378 (4943404340b012)

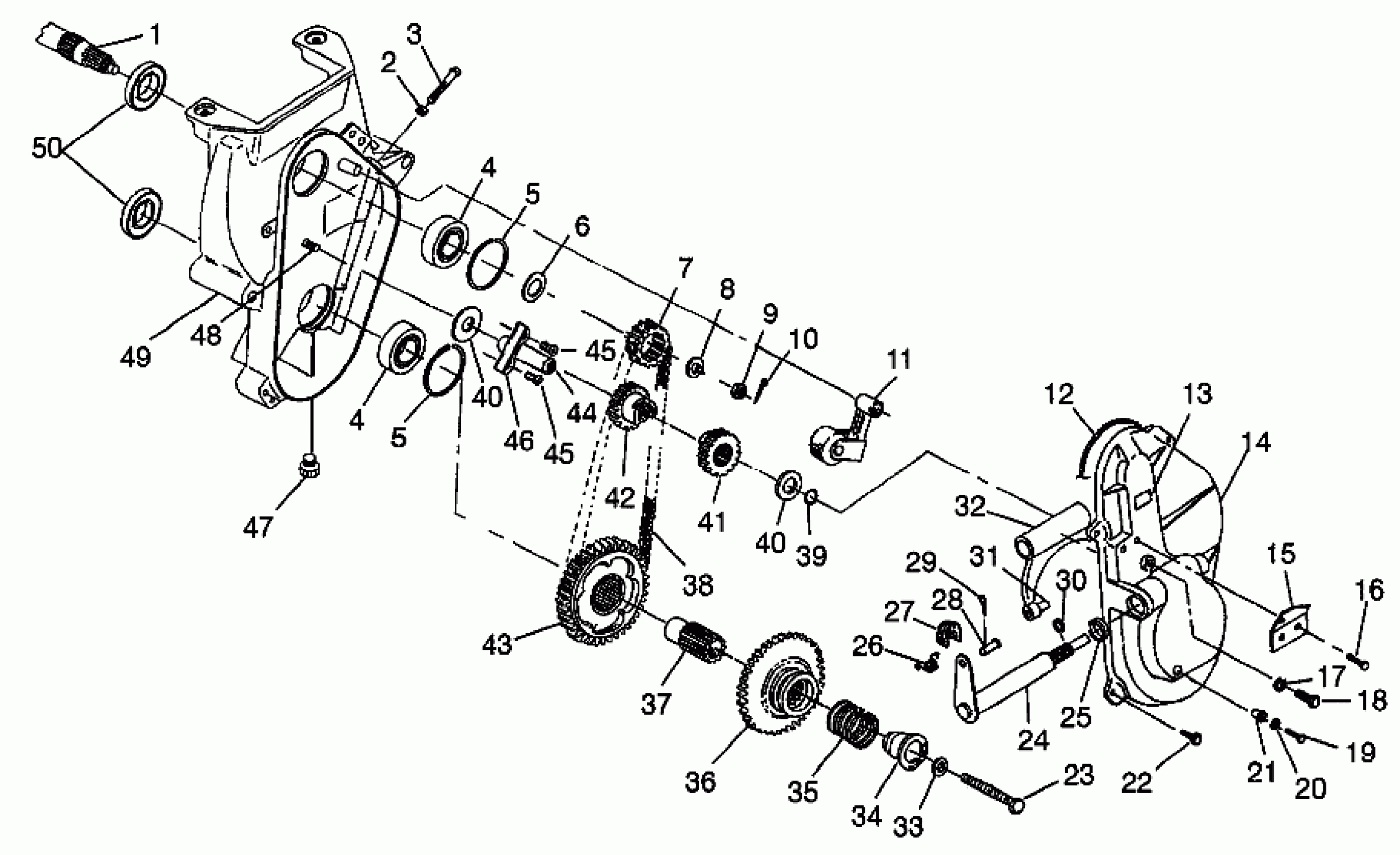

Polaris ULTRA TOURING - 0985378 CHAINCASE - 0985378 (4943404340b012) Diagram
#
1
Jackshaft (See Footnote) (See Drive Train Pg. B13, Ref. 17)
-------
Unavailable
2
NUT(10)
7542404
$1.59
3
SCREW(10)
7515551
$6.39
4
BEARING,BALL
3514309
$15.87
4
BEARING,BALL
3514309
$15.87
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
WASHER(10)
7555917
$2.39
7
SPKT,22T,3/4W,15T SPLINE Substituted by 2900006 (3/4W)
3221089
Unavailable
8
WASHER, SLOTTED(10)
7571620
$7.19
9
NUT
7542811
Unavailable
10
COTTER PIN(10)
7661401
$1.49
11
PIN,CHAIN TIGHTENER
7662210
Unavailable
11
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
11
BEARING
3553002
$11.99
11
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
11
WHEEL,C/C IDLER
5630123
Unavailable
11
WASHER THRUST(10)
7558702
$1.59
12
GASKET-CHAINCASE
5410277
$24.99
13
DECAL,CAUT.SPKT/CHAIN
7076764
Unavailable
14
COVER,CHAINCASE,REV.
5131753
Unavailable
15
BRKT,CABLE MOUNT
5222502-067
Unavailable
16
SCREW(10)
7512252
Unavailable
17
WASHER WROUGHT(10)
7558403
$4.79
18
SCREW(10)
7512492
$1.49
19
SCREW(10)
7511909
$3.99
20
WASHER, FLAT(10)
7558201
$5.79
21
NUT-WELL(10)
7541918
Unavailable
22
SCREW(10)
7512242
$2.39
23
SCREW, NYLOK(10)
7515348
$4.79
24
SHAFT, SHIFT
1341093-067
$29.37
25
Seal, Oil
3610029
$8.89
26
SPRING,REV.CABLE TENSION
7042044
Unavailable
27
CLEVIS
5222606
Unavailable
28
PIN, CLEVIS(10)
7661830
$3.99
29
PIN-COTTER(10)
7661205
$1.49
30
RING, RETAINER(10)
7710415
$3.99
31
PIN, SHIFT FORK(10)
7661826
$5.65
32
KIT,SHIFT FORK/SHAFT (Incl. 24,31)
2200363
Unavailable
32
Fork, Shift
5130805
Unavailable
33
LOCK WASHER(10)
7552901
$1.49
34
RETAINER,DRIVE COUPLER
5130727
Unavailable
35
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
36
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
37
Coupler, Drive
5130720
Unavailable
38
CHAIN,68P,3/4W,HYVO Substituted by 3221112 (3/4W)
3224070
Unavailable
39
O RING
5410589
$4.99
40
WASHER,THRUST(10)
7555877
$3.99
40
WASHER,THRUST(10)
7555877
$3.99
41
GEAR,SPUR PINION
1341075
$149.99
42
SPROCKET,PINION (3/4W)
1341241
Unavailable
43
SPKT,40T,3/4W,REV,HYVO Substituted by 1341227 (3/4W)
1341224
Unavailable
44
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
45
SCREW(10)
7512019
$3.99
45
SCREW(10)
7512019
$3.99
46
BRKT,CHAIN RETENTION
5222298
Unavailable
47
PLUG(10)
7052115
$5.65
48
BOLT(10)
7515477
$34.99
49
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
50
SEAL-OIL
3610030
$20.22
