- ULTRA TOURING - 0985378
BACKREST ULTRA TOURING 0985378 and EUROPEAN ULTRA TOURING E985378 (4943404340A007)

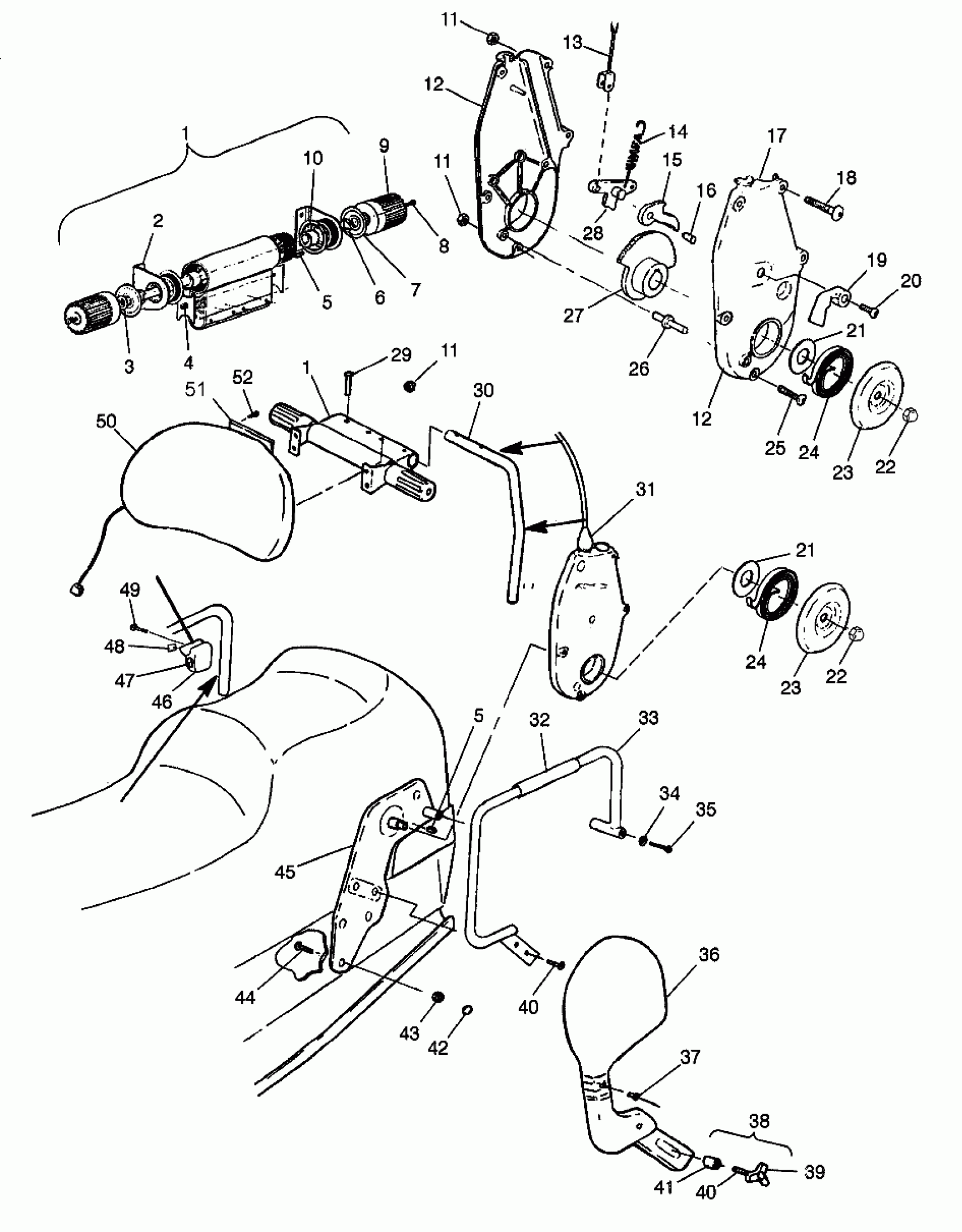

Polaris ULTRA TOURING - 0985378 BACKREST ULTRA TOURING 0985378 and EUROPEAN ULTRA TOURING E985378 (4943404340A007) Diagram
#
1
ADJ.ASM,B'REST CUSHION (Incl. 2-8)
1012534
Unavailable
1
ADJ.ASM,B'REST CUSHION (Incl. 2-8)
1012534
Unavailable
2
BRKT,MOUNTING
1012535
$37.11
3
WASHER,WAVE(10)
7571635
$4.23
4
SCREW(10)
7511866
$4.79
5
KEY,SQUARE(10)
7721118
$3.59
5
KEY,SQUARE(10)
7721118
$3.59
6
E RING(10)
7710901
$7.19
7
WASHER,(10)
7571634
$2.39
8
SCREW,(10)
7512087
$1.83
9
KNOB, ADJ.
5432112
Unavailable
10
Rotor
5131207
$16.47
11
NUT-LOCK(10)
7542122
$1.49
11
NUT-LOCK(10)
7542122
$1.49
12
HSG,RH (ADJ.B'REST)
5131212
$62.39
12
HSG,LH,(ADJ. B'REST)
5131211
$62.39
12
HSG,RH (ADJ.B'REST)
5131212
$62.39
12
HSG,LH,(ADJ. B'REST)
5131211
$62.39
13
CABLE ASM,ACTUATOR
7080582
$87.19
14
SPRING,LOCKING
7041411
$25.59
15
SECTOR,ENGAGEMENT
5211610
Unavailable
16
PIN,PIVOT
5020806
Unavailable
17
ADJUSTER ASM,B'REST Substituted by 1013409 (Incl. 11-20, 25-28)
1012536
Unavailable
18
BOLT ,(10)
7515171
Unavailable
19
LEVER,LOCKING.BLK. Substituted by 5631126-067
5630561-067
Unavailable
20
SCREW,(10)
7516915
$1.06
21
WASHER,THRUST(10)
7555926
$1.99
21
WASHER,THRUST(10)
7555926
$1.99
22
NUT,(10)
7547015
$6.23
22
NUT,(10)
7547015
$6.23
23
COVER,SPRING,1/2" ID,BLK
5241935-067
$4.95
23
COVER,SPRING,1/2" ID,BLK
5241935-067
$4.95
24
SPRING,TORSION,PRELOAD
7041412
Unavailable
24
SPRING,TORSION,PRELOAD
7041412
Unavailable
25
Bolt
7515170
$2.39
26
STUD-LIMITER
5020822
$66.39
27
GEAR,STATIONARY
1012537
Unavailable
28
PAWL ASM,LH,LOCK.,MASTER
1012320
$40.48
28
PAWL ASM,RH,LOCK,MASTER
1012321
Unavailable
29
RIVET,INTERLOCK,B(50)
7661638
$1.49
30
TUBE,B'REST MT,BLK
5224761-067
$29.75
31
COVER,CABLE,BLK
5432259
Unavailable
32
GRIP ASM,PASSENGER,HEATED Substituted by 2201376
2460659
Unavailable
33
HANDLE,GRAB,LH,BLACK
1012657-067
$58.39
33
HANDLE,GRAB,RH,BLACK
1012658-067
$53.59
34
WASHER(10)
7555734
$1.49
35
SCREW(10)
7512307
$3.99
36
DEFLECTOR,AIR,LH
5432078
$26.39
36
DEFLECTOR,AIR,RH
5432079
$27.19
37
RIVET,(50)
7621341
Unavailable
38
KNOB,GRAB HANDLE (Incl. 39-41)
1012385
Unavailable
39
Knob, Backrest
5630386-067
$20.22
40
BOLT(10) Substituted by 7515339
7515328
Unavailable
40
BOLT(10) Substituted by 7515339
7515328
Unavailable
41
SPACER,ADJ.KNOB
5432123
$5.83
42
CAPLUG, 3/4"(10)
7080592
Unavailable
43
NUT, NYLOK(10)
7542327
$4.79
44
BOLT(10)
7512377
$4.79
45
MAINFRAME,LH,BLK
1012539-067
Unavailable
45
MAINFRAME,RH,BLK
1012540-067
Unavailable
46
HOUSING-SWITCH
5432120
$22.23
47
HARNESS,PASS.GRP.HTR.SW.
2460537
$66.39
48
DECAL,HIGH/LOW/OFF
7075418
Unavailable
49
SCREW,TAPPING,(10)
7527815
$3.19
50
CUSHION,B'REST,W/LAMP (Incl. Cover]
2682308
Unavailable
50
COVER,B'REST,W/LAMP
2682309
Unavailable
51
BULB TAILLIGHT(10)
4030015
$4.03
51
TAILLIGHT ASM,B'REST
2432040
Unavailable
52
SCREW(10)
7512054
$2.39
