- ULTRA TOURING - 0975378
TUNNEL ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813A005)

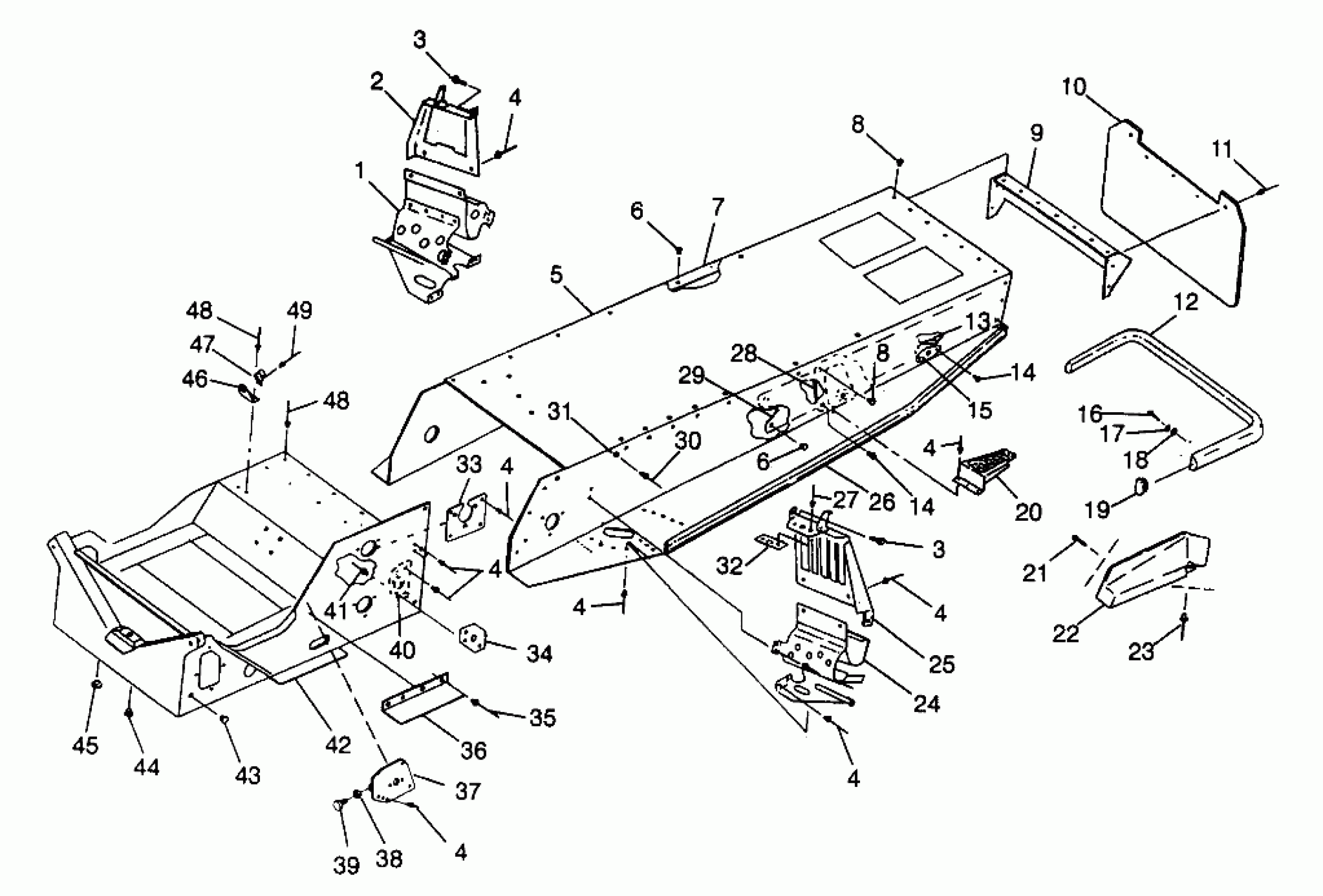

Polaris ULTRA TOURING - 0975378 TUNNEL ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813A005) Diagram
#
1
FOOTREST,RH,BLK,(AGR X-12)
1012475
Unavailable
2
MOUNT,RH,CONSOLE Substituted by 5242493-067
5240864-067
Unavailable
3
SCREW(10)
7512057
$2.38
3
SCREW(10)
7512057
$2.38
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
TUNNEL,X12-133,W/COOLER,TR (Incl. 7, 9, 13, 15, 29 & Heat Exchangers)
1012551
$366.65
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
7
BRACE,TUNNEL,EV,1 PC,X-12
5241011
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661841
$1.49
8
RIVET,SEMI-TUBE,(50)
7661841
$1.49
9
PANEL,R.CLOSEOFF
5240968-067
$36.31
10
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
11
POP RIVET(50)
7621418
$1.49
12
BUMPER,REAR Substituted by 2670168-067
2670168
Unavailable
13
PLATE,TUNNEL SUPPORT
5211660-067
$3.17
14
RIVET(50)
7661846
$1.99
14
RIVET(50)
7661846
$1.99
15
BRKT,U-TENSIONER,BLK.
5211590-067
$7.38
16
BOLT(10)
7512240
$3.99
17
LOCK WASHER(10)
7552801
$1.59
18
WASHER(10)
7558301
$1.49
19
CAP,BUMPER
5431995-070
Unavailable
20
PAD,FOOTREST GRIP
5830114
$35.24
20
FOOTREST,RH, W/GRIP PAD
1012543
$58.39
20
FOOTREST,LH, W/GRIP PAD
1012542
$66.39
21
SCREW(10)
7512026
$1.49
22
SKIRT,SNO.TRNG,LH
5432131-070
$33.91
22
SKIRT,SNO.TRNG,RH
5432132-070
$30.95
23
RIVET(50)
7621472
$1.49
24
FOOTREST,LH,BLK,(AGR X-12)
1012474
Unavailable
25
MOUNT,LH,CONSOLE
5240863-067
Unavailable
26
EDGE,LH,TUNNEL,BLK
5333529-067
Unavailable
26
EDGE,RH,TUNNEL,BLK
5333530-067
Unavailable
27
RIVET(50)
7661850
$1.49
28
PAD,LH,RR SUSP,X12,BLK
1012439-067
$15.67
28
PAD,RH,RR SUSP,X12,BLK
1012440-067
$13.68
29
BRACE,LH,LOW.TUNNEL
5241485
$25.59
29
BRACE,RH,LOW.TUNNEL
5241486
$25.59
30
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
31
SNAP-MALE(10)
7080227
Unavailable
32
PLATE,CLUTCH GUARD MT.
1012441
Unavailable
33
PLATE,BRG.SUPPORT,B'HD.
5211806-067
$10.71
34
PLATE,F.SUSP,OUT,X-12,BLK
5211746-067
$13.39
35
RIVET(50)
7621452
$1.49
36
GUARD,ADAPTER GUIDE
5222857
$12.94
37
STOP,TORQUE Substituted by 1012644
1012523
Unavailable
38
NUT,HEX(10)
7542414
$4.79
39
STOP,TORQUE,COARSE
3110058
Unavailable
40
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
40
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
41
RIVET(50) Substituted by 7661130
7661643
Unavailable
42
BULKHEAD,BLK
1012463-067
$436.51
43
PLUG, HOLE(10)
7080416
$5.65
44
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
45
PLUG-HOLE
7080398
$4.84
46
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
47
GUIDE, RECOIL
5431385
$10.51
48
RIVET-3/16-.090-.290
7661637
$1.49
48
RIVET-3/16-.090-.290
7661637
$1.49
49
RIVET,3/16X.402(50)
7621432
$1.49
