STEERING ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813B009)

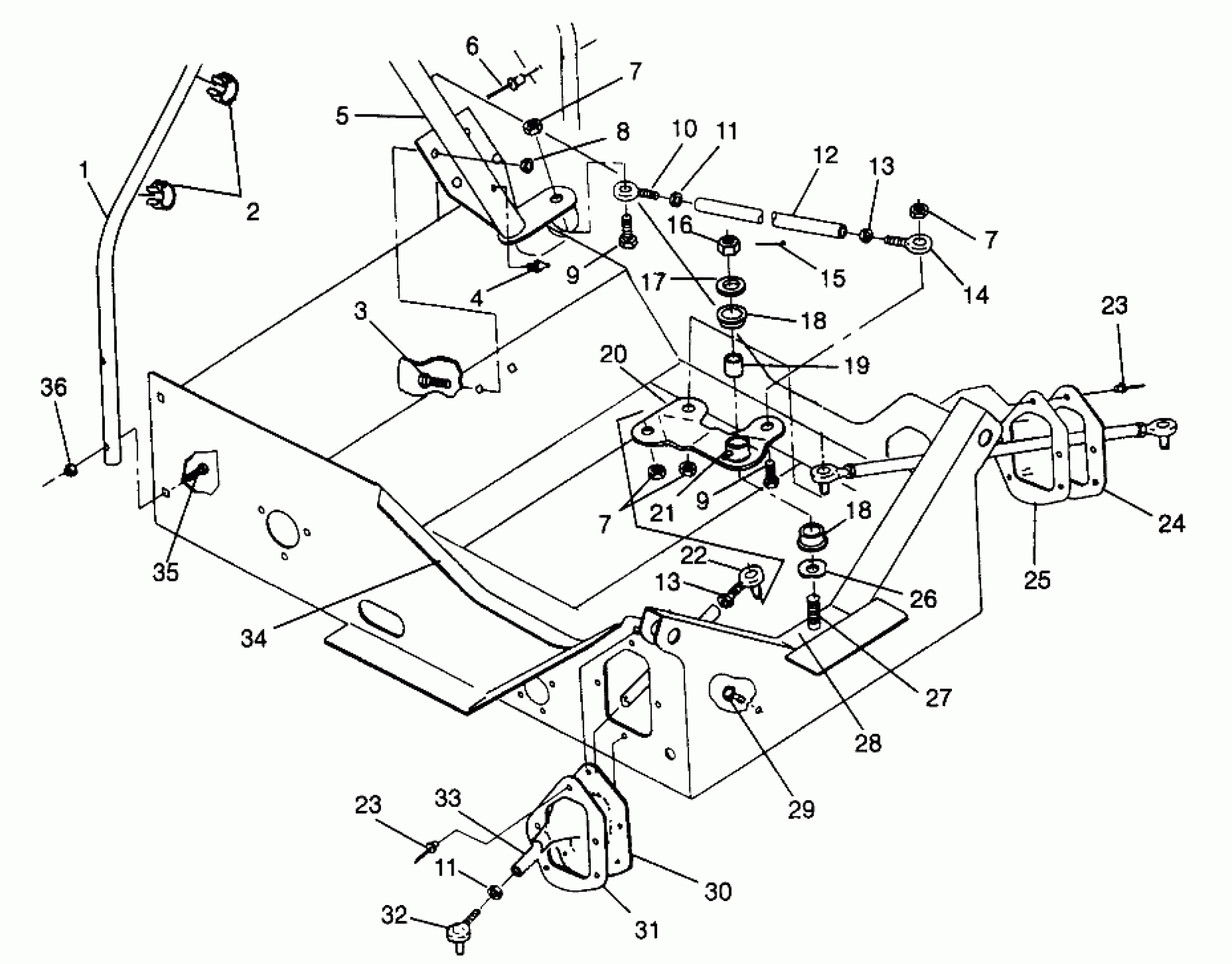

Polaris ULTRA TOURING - 0975378 STEERING ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813B009) Diagram
#
1
HOOP,STEERING Substituted by 1012856-067
1012282-067
Unavailable
2
CLIP(10)
7080278
$2.63
3
BOLT(10) Substituted by 7512377
7512394
Unavailable
4
FITTING-LUBRICATION 1/4-28
7080424
$4.79
5
POST,STRG,(AGR.)
1823176-067
Unavailable
6
RIVET-3/16-.090-.290
7661637
$1.49
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
8
NUT-5/16-18 NYLOK-Y
7542324
$1.49
9
BOLT(10)
7512404
$3.99
9
BOLT(10)
7512404
$3.99
10
ROD END, RH.
7060165
$48.56
11
NUT
7542424
$1.49
11
NUT
7542424
$1.49
12
ROD-DRAG LINK
5332712
Unavailable
13
NUT HEX(10)
7542401
$2.39
13
NUT HEX(10)
7542401
$2.39
14
ROD END, LH.
7060164
$48.56
15
PIN COTTER(10)
7661203
$1.49
16
NUT FLEX,(10)
7542703
Unavailable
17
WASHER(10)
7555721
$1.49
18
BUSHING
3563907
$3.99
18
BUSHING
3563907
$3.99
19
BUSHING
5010340
Unavailable
20
STEERING ASM,CTR. (Incl. 18, 21)
1822266
$38.49
21
ZERK,FITTING,THREADED(10)
7080433
$1.49
22
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
23
POP RIVET(50)
7621323
$1.49
23
POP RIVET(50)
7621323
$1.49
24
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
25
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
26
WASHER,WAVE(10)
7555735
$3.99
27
BOLT(10)
7512684
Unavailable
28
BLOCK,STRG,(CAST)
5630563
$32.37
29
CLIP, PLASTIC(10)
4020139
$4.79
30
BOOT,TIEROD,RH,XTRA
5411123
$20.22
31
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
32
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
33
ROD,TIE,BLK.
5020859-067
Unavailable
34
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
35
BOLT-CARRIAGE(10)
7512275
$3.99
36
NUT-LOCK(10)
7542122
$1.49
