STARTING MOTOR ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813D006)

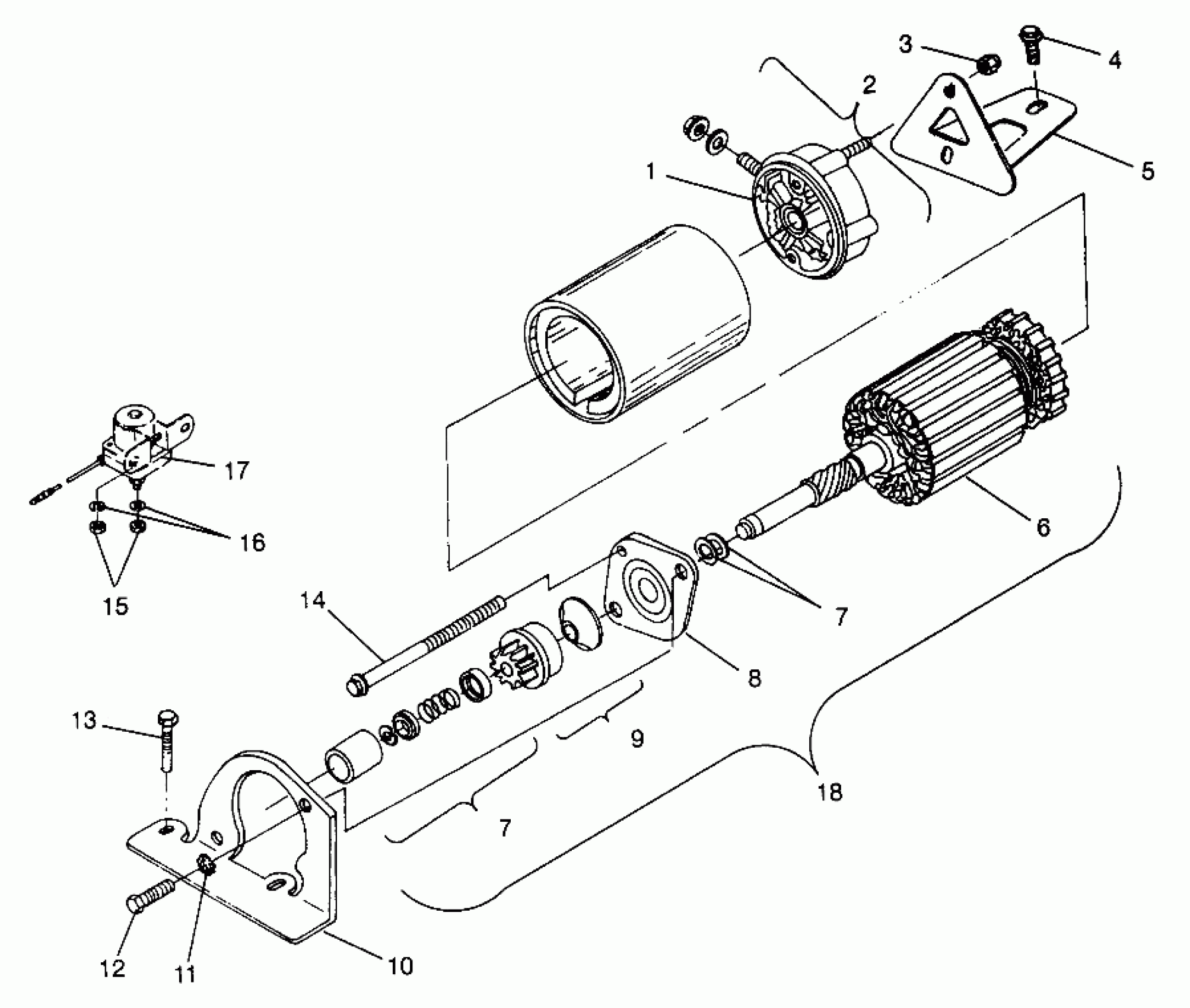

Polaris ULTRA TOURING - 0975378 STARTING MOTOR ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813D006) Diagram
#
Description
Price
1
KIT,BRUSH&SPRING
2200759
$59.99
2
KIT,COMMUTATOR CAP ASM. (Incl.1)
2200758
$82.39
3
NUT(10)
7542153
$1.59
4
SCREW(10)
7516815
$6.39
5
BRKT,R.STRTR,(EC68-Y)
5241488
Unavailable
6
KIT,ARMATURE ASM.
2200756
$169.99
7
KIT,DRIVE HDWE.
2200755
Unavailable
7
COVER, DUST
-------
Unavailable
7
WASHER, CURVED SPRING
-------
Unavailable
7
PINION, STOP
-------
Unavailable
7
SPACER
-------
Unavailable
7
RING, LOCK
-------
Unavailable
7
Washer, Thrust
-------
Unavailable
7
SPRING, ANTIDRIFT
-------
Unavailable
7
KIT,DRIVE HDWE.
2200755
Unavailable
7
COVER, DUST
-------
Unavailable
7
WASHER, CURVED SPRING
-------
Unavailable
7
PINION, STOP
-------
Unavailable
7
SPACER
-------
Unavailable
7
RING, LOCK
-------
Unavailable
7
Washer, Thrust
-------
Unavailable
7
SPRING, ANTIDRIFT
-------
Unavailable
8
KIT,DRIVECAP ASM.
2200757
$59.99
9
KIT,DRIVE ASM.
2200754
Unavailable
9
PLATE, DRIVE
-------
Unavailable
9
PINION
-------
Unavailable
10
BRKT,FR.STRTR,(EC68-Y)
5241484
$53.59
11
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
12
BOLT(10) Substituted by 7512492
7515548
Unavailable
13
SCREW & WASHER ASM.(10)
7516730
$6.39
14
KIT,SCREW
2200753
$29.99
14
BOLT, THRU
-------
Unavailable
15
NUT(10)
3082939
Unavailable
16
WASHER SPRING(10)
3080077
$2.39
17
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 15, 16)
3083211
Unavailable
18
MOTOR,STARTER,(DOMESTIC)
4170006
Unavailable
