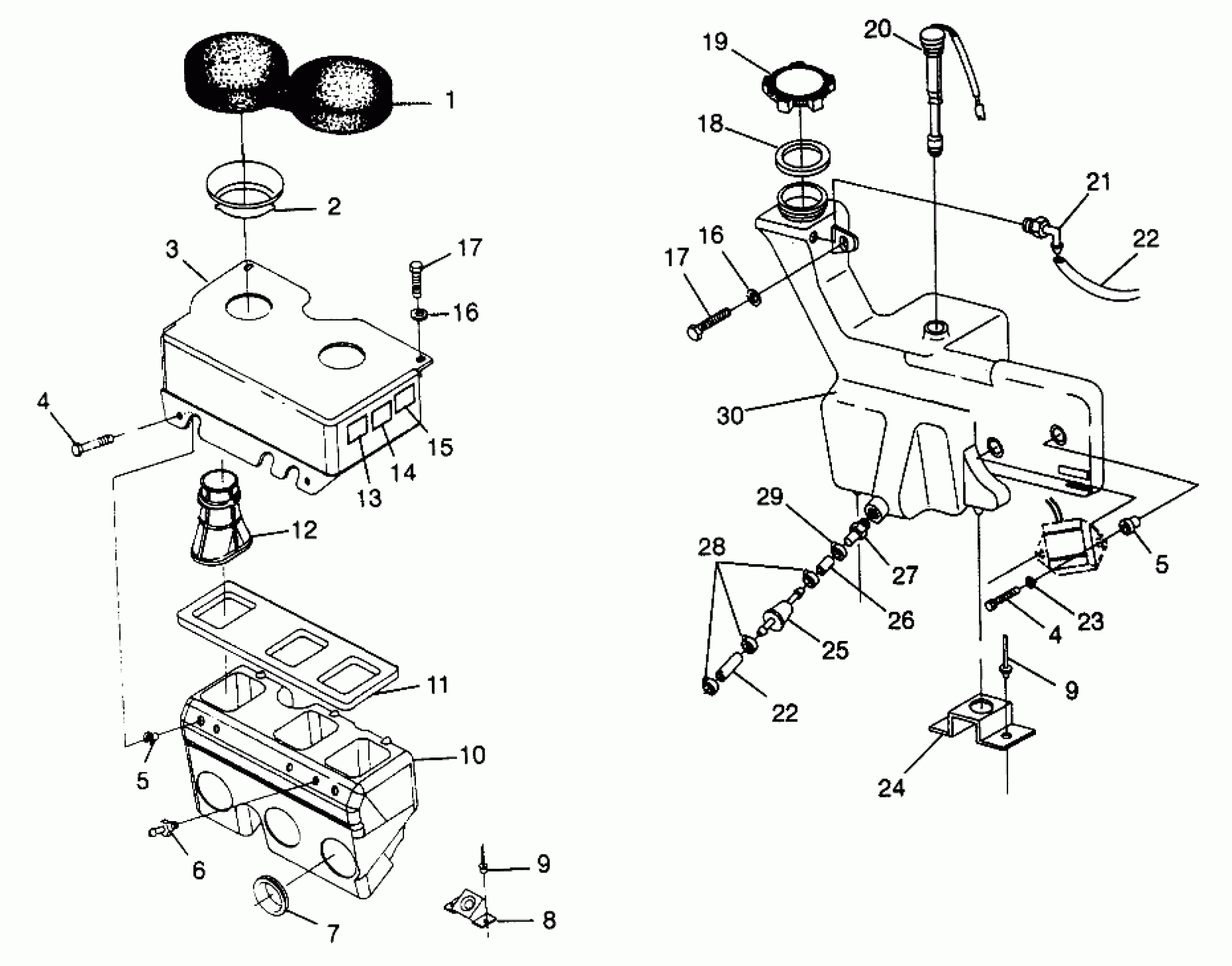

Polaris ULTRA TOURING - 0975378 OIL TANK / AIR BOX ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813C009) Diagram

#

Description
Price

1

FOAM ASM,INTAKE,AGR

1253176

Unavailable

2

BOOT,CONE SILENCER,INLET

5411046

Unavailable

3

PLENUM,SILENCER,(680 AGR)

5432540

Unavailable

4

SCREW(10)

7512279

$1.49

4

SCREW(10)

7512279

$1.49

5

NUT-WELL(10)

7541923

$5.59

5

NUT-WELL(10)

7541923

$5.59

6

FITTING,HOSE(10)

7052127

$3.19

7

Boot

5410271

Unavailable

8

BRKT.OIL TANK,

5241322

Unavailable

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

10

BOTTOM,AIRBOX,INT.VENT(680)

5432127

Unavailable

11

SEAL,PLENUM

5810946

Unavailable

12

BOOT,CONE SILENCER,OUTLET

5411047

Unavailable

13

DECAL,CAUTION,AIRBOX

7075351

Unavailable

14

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

15

DECAL, GREASING [No Longer Available]

7073426

$7.27

16

WASHER,WROUGHT(10)

7558302

$1.59

16

WASHER,WROUGHT(10)

7558302

$1.59

17

BOLT(10)

7512276

$4.79

17

BOLT(10)

7512276

$4.79

18

GASKET-OIL CAP

5810141

$2.39

19

CAP,OIL TANK

5430779

$14.56

20

SENSOR,OIL LEVEL

4110134

$72.84

21

FITTING,90 DEG,1/8,(10)

7052095

$4.79

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

24

BRKT,OILTANK,COINED

5241330

$2.15

25

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

26

LINE,OIL,FORMED

5410902

Unavailable

27

FITTING,3/8 OUTLET

7052110

Unavailable

28

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

29

HOSE CLAMP, RED (Red)

7080003

$1.49

30

TANK,OIL,W/SEND.UNITHOLE Substituted by 2201101

5432472

Unavailable
