HOOD ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813A013)

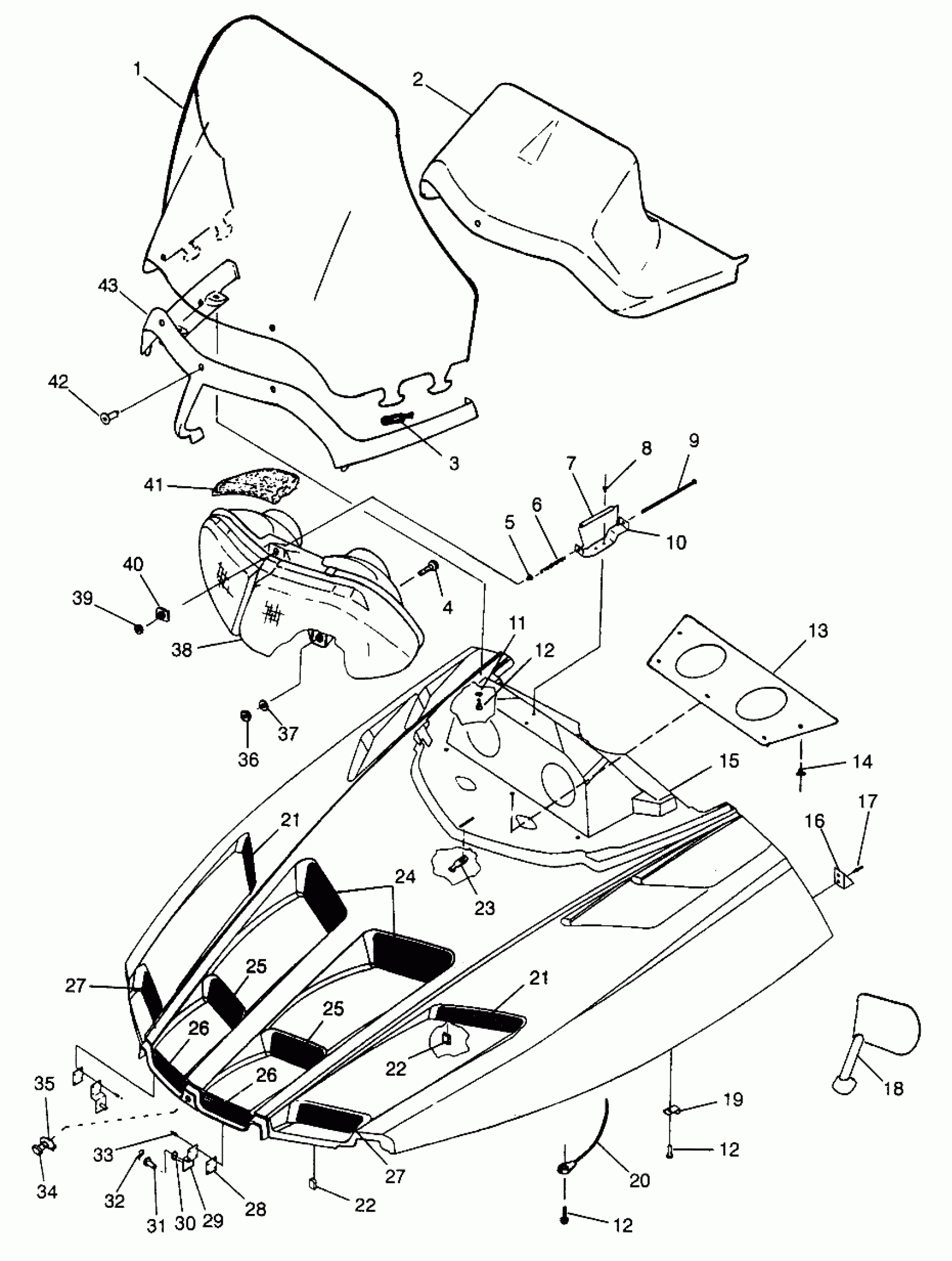

Polaris ULTRA TOURING - 0975378 HOOD ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813A013) Diagram
#
1
WNDSHLD,TALL,CLR,AGR.
5432485
Unavailable
2
HOUSING,INST.
5431780-070
Unavailable
3
RETAINER,WINDSHIELD,(10)
5410970
$1.49
4
SCREW(10)
7512222
$2.39
5
WASHER,SPECIAL
5020811
Unavailable
6
SPRING,ADJ.H/L
7041397
Unavailable
7
SPACER,TUBE
5333296
Unavailable
8
RIVET(50)
7621485
$1.49
9
SCREW,ADJ.,H/L.(10)
4032072
Unavailable
10
BRKT,H/L ADJUST
5240757-067
Unavailable
11
BURR,RIVET(50)
7555904
$1.49
12
SCREW(10)
7512026
$1.49
12
SCREW(10)
7512026
$1.49
12
SCREW(10)
7512026
$1.49
13
PLENUM,AIR INTAKE,HD. Substituted by 5432665
5431991
Unavailable
14
RIVET,PLASTI-LOC.(50)
7621509
$1.49
15
HOOD,AGR,DP VLT Substituted by 2631895-230 (Incl. Foil & Foam)
2631689-230
Unavailable
16
CUP, HOOD LATCH,(10)
5430733
$4.84
17
RIVET(50)
7621334
$1.49
18
NUT, WELL(10)
7541901
$6.39
18
SCREW(10)
7512040
Unavailable
18
MIRROR,TOURING,AGR,PR (Incl. Hardware)
2871675
Unavailable
19
CLAMP, RETAINER(10)
7080372
$3.99
20
CABLE,HD.RETAINER
7080360
$24.27
21
SCREEN,LH,SIDEUPP.LOUVER Substituted by 5241146-067
5241145-067
Unavailable
21
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
21
SCREEN,LH,SIDEUPP.LOUVER Substituted by 5241146-067
5241145-067
Unavailable
21
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
22
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
22
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
23
RETAINER-TAB,(10)
5411075
Unavailable
24
SCREEN,RH,CTR,UPP.LOUVER
5241142-067
$19.83
24
SCREEN,LH,CTR,UPP.LOUVER Substituted by 5241142-067
5241141-067
Unavailable
25
SCREEN,LH,CTR,MID.LOUVER Substituted by 5241140-067
5241139-067
Unavailable
25
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
25
SCREEN,LH,CTR,MID.LOUVER Substituted by 5241140-067
5241139-067
Unavailable
25
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
26
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
26
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
27
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
27
SCREEN,LH,SIDELOW.LOUVER Substituted by 5241144-067
5241143-067
Unavailable
27
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
27
SCREEN,LH,SIDELOW.LOUVER Substituted by 5241144-067
5241143-067
Unavailable
28
PLATE,HINGE,BLK.
5211536-067
$5.75
29
HINGE,UPPER,LH
1012246-067
$15.08
29
HINGE,UPPER,RH
1012247-067
Unavailable
30
WASHER(10)
7555734
$1.49
31
BUSHING, HINGE
5431884
Unavailable
32
PIN,HITCH(10)
7661644
$2.39
33
RIVET(50)
7621433
$1.49
34
MOUNT,CABLE,TIE(10)
7080589
Unavailable
35
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
36
NUT(10)
7542124
Unavailable
37
WASHER(10) Substituted by 7558301
7555776
Unavailable
38
BULB,QUARTZ.H/L,INDY
2870448
$24.99
38
RETAINER,H/L BULB
4032063
Unavailable
38
H/L ASM. (Incl., Bulbs)
2431018
Unavailable
39
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
40
NUT,H/L.PIVOT
5431901
Unavailable
41
FOAM-HEADLIGHT
5811094
Unavailable
43
RETAINER,W/S,DP.VLT.MET.
5432573-230
Unavailable
