FRONT SUSPENSION and SKI ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E (4938133813B006)

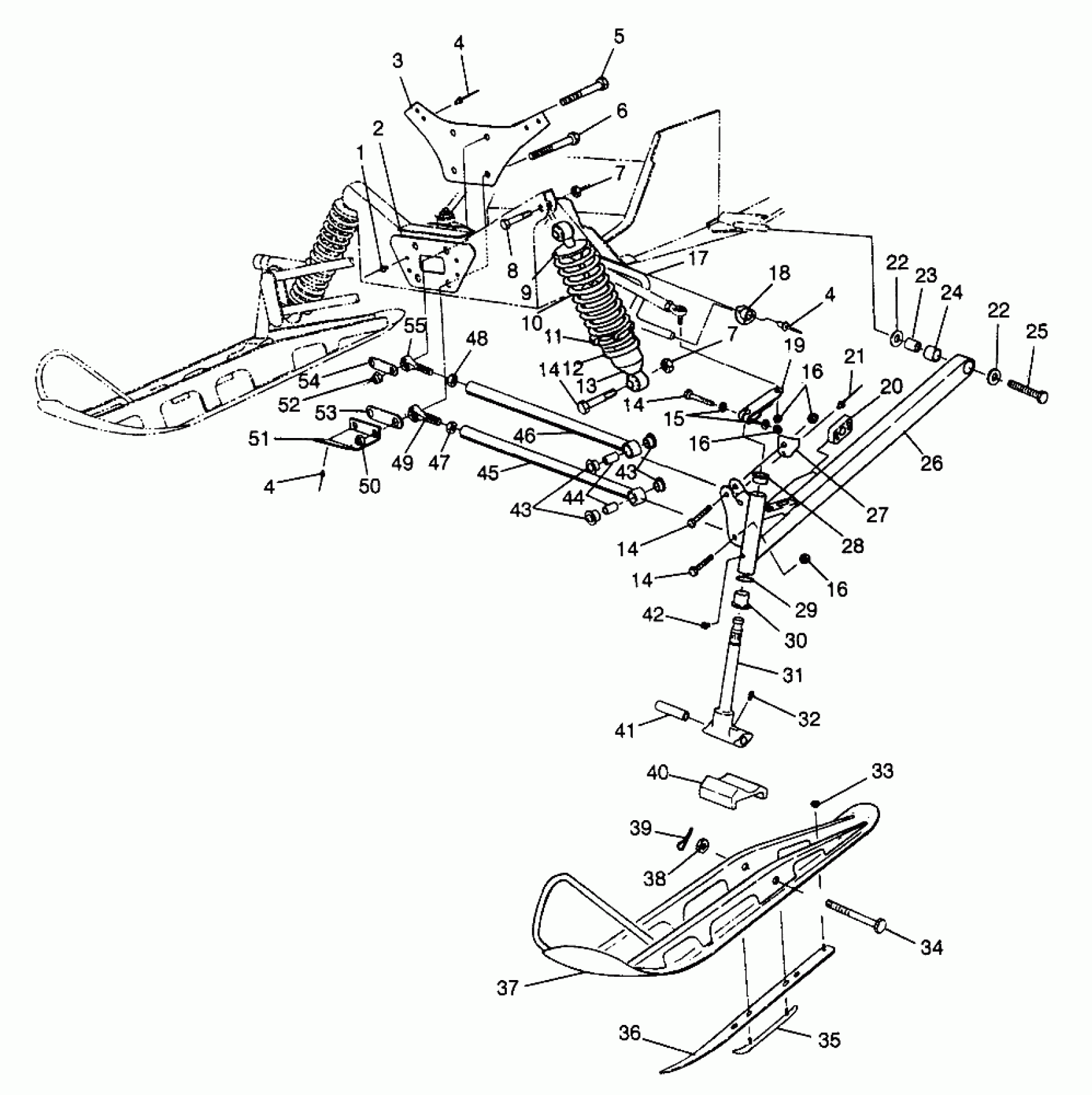

Polaris ULTRA TOURING - 0975378 FRONT SUSPENSION and SKI ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E (4938133813B006) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
REINF,R.SHOCK MT.PLATE
5241395-067
$3.46
4
RIVET(50)
7621452
$1.49
4
RIVET(50)
7621452
$1.49
4
RIVET(50)
7621452
$1.49
5
BOLT(10)
7512582
$8.79
6
BOLT(10)
7512684
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BOLT(10) Substituted by 7515415
7515515
Unavailable
9
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
10
SPRING,IFS,10.75/140#
7041549-067
Unavailable
11
RING,SPRING PRELOAD ADJ.
5431734
$52.60
12
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
13
SHOCK,GAS,IFS,AFX
7041524
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
15
WASHER(10) Substituted by 7555832
7555851
Unavailable
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
17
BAR,SWAY,5/8(X-12)BLK
5224748-067
Unavailable
18
BUSHING,SWAY BAR
5432038
$19.99
19
ARM,STRG,BLK
5241560-067
Unavailable
20
SLIDE,SWAYBAR,5/8
5432331
$28.32
21
RIVET(50) Substituted by 7661130
7661643
Unavailable
22
WASHER(10)
7555721
$1.49
22
WASHER(10)
7555721
$1.49
23
TUBE, BUSHING
5010310
$9.70
24
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
25
BOLT(10)
7512557
$7.60
26
ARM,TRLG,LH (Incl. 23, 24)
1822384
Unavailable
26
ARM,TRLG,RH (Incl. 23, 24)
1822386
Unavailable
27
STOP,LH,STRG,BLK.
5241569-067
$7.27
27
STOP,RH,STRG,BLK.
5241570-067
$7.27
28
BUSHING-FLANGE
3573909
$2.39
29
WASHER SPECIAL(10)
7556509
$1.59
30
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
31
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
32
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
33
NUT-5/16-18 NYLOK-Y
7542324
$1.49
34
BOLT(10)
7515462
$8.79
35
SKAG, BLK.
1820318-067
$49.99
36
Plate, Skag
1011829-067
$54.99
37
SKI WELD
1820430-067
Unavailable
38
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
39
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
40
Stop, Rubber
5411083
$12.94
41
BUSHING,PIVOT,(10)
5010158
$19.99
42
ZERK,FITTING,THREADED(10)
7080433
$1.49
43
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
43
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
44
BUSHING-RADIUS ROD,(10)
5010127
$7.99
45
ROD,RAD,LOWER,BLK.
1822383-067
Unavailable
46
ROD,RAD,UPPER
1822381-067
Unavailable
47
NUT-JAM(10)
7542711
$2.39
48
NUT JAM(10)
7542520
$2.39
49
ROD END Substituted by 7061027
7060162
$48.56
50
NUT FLEX,(10)
7542703
Unavailable
51
SUPPORT,PANBRAKE,LOW.
5240699-067
Unavailable
52
NUT, LOCK,(10)
7542503
$10.39
53
STRAP,SPACER BOTTOM
5211345
$12.99
54
STRAP,SPACER TOP
5211344
$7.27
55
ROD END
7060163
Unavailable
