- ULTRA TOURING - 0975378

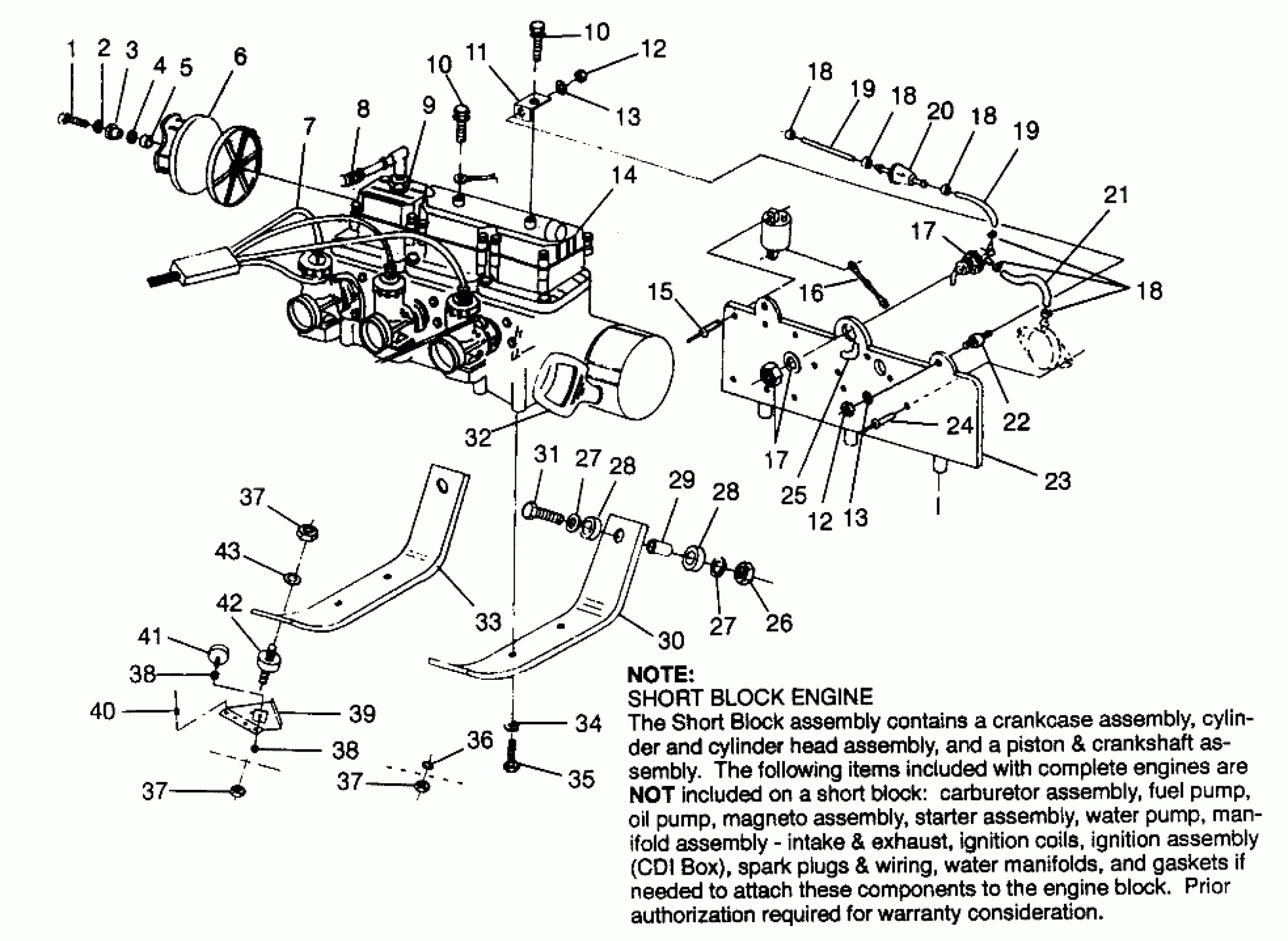

ENGINE MOUNTING ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813C007)
Polaris ULTRA TOURING - 0975378 ENGINE MOUNTING ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813C007) Diagram
#
1
SCREW
7512595
Unavailable
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
Asm., Drive Clutch (See Pg. A34, Ref. 20)
-------
Unavailable
7
CABLE,THROTTLE,W/OIL
7080623
Unavailable
8
TUBING,CONVOLUTED
5521147
Unavailable
9
SPARKPLUG(8)
3070165
$3.99
10
Bolt (See Pg. A40, Ref. 1)
-------
Unavailable
10
Bolt (See Pg. A40, Ref. 1)
-------
Unavailable
11
BRKT,HDWE MT.,BLK.
5241179-067
Unavailable
12
NUT HEX(10)
7542105
$3.99
12
NUT HEX(10)
7542105
$3.99
13
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
13
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
14
ENG.(S.B.)EC68PL-01 [No Longer Available]
3085195
Unavailable
15
RIVET(50)
7621233
Unavailable
16
STRAP,GND,(IGN.COIL)
5211663
$3.51
17
VALVE,FUEL SHUTOFF
7051016
Unavailable
17
VALVE,FUEL SHUTOFF
7051016
Unavailable
18
CLAMP,SPRING,(10)
7080534
$1.59
18
CLAMP,SPRING,(10)
7080534
$1.59
18
CLAMP,SPRING,(10)
7080534
$1.59
18
CLAMP,SPRING,(10)
7080534
$1.59
19
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
19
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
20
FILTER FUEL,(10)
2530008
$4.84
21
FUEL LINE, 5 FT. Substituted by 8450044-153
8450044-156
Unavailable
22
MOUNT,CARB.
3110050
$12.99
23
MOUNT,ENG.HARDWARE
5432094
$21.43
24
RIVET(50)
7621234
Unavailable
25
DECAL,FUEL SHUT-OFF
7073869
Unavailable
26
NUT,FLANGE(10)
7542522
$5.59
27
WASHER(10)
7555740
$1.59
27
WASHER(10)
7555740
$1.59
28
MOUNT, ENGINE
5410390
Unavailable
28
MOUNT, ENGINE
5410390
Unavailable
29
SPACER, (MTR.MT.)
5332778
Unavailable
30
PLATE,RH,ENGINE
5241990
Unavailable
31
SCREW(10)
7512530
$5.59
32
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
33
PLATE,LH,ENGINE
5241989
Unavailable
34
WASHER LOCK(10)
7553101
$3.99
35
BOLT(10)
7512575
Unavailable
36
WASHER,FLAT(10)
7555915
$3.19
37
NUT,FLEXLOCK,(10)
7547008
$6.39
37
NUT,FLEXLOCK,(10)
7547008
$6.39
37
NUT,FLEXLOCK,(10)
7547008
$6.39
38
NUT,HEX(10)
7542414
$4.79
38
NUT,HEX(10)
7542414
$4.79
39
LIMITER,TORQUE
1012277-067
Unavailable
40
RIVET-3/16-.090-.290
7661637
$1.49
41
STOP,TORQUE,COARSE
3110056
Unavailable
42
MOUNT,ENGINE
3110062
Unavailable
43
WASHER(10) Substituted by 7555806
7555720
$0.79
