DRIVE TRAIN ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813B013)

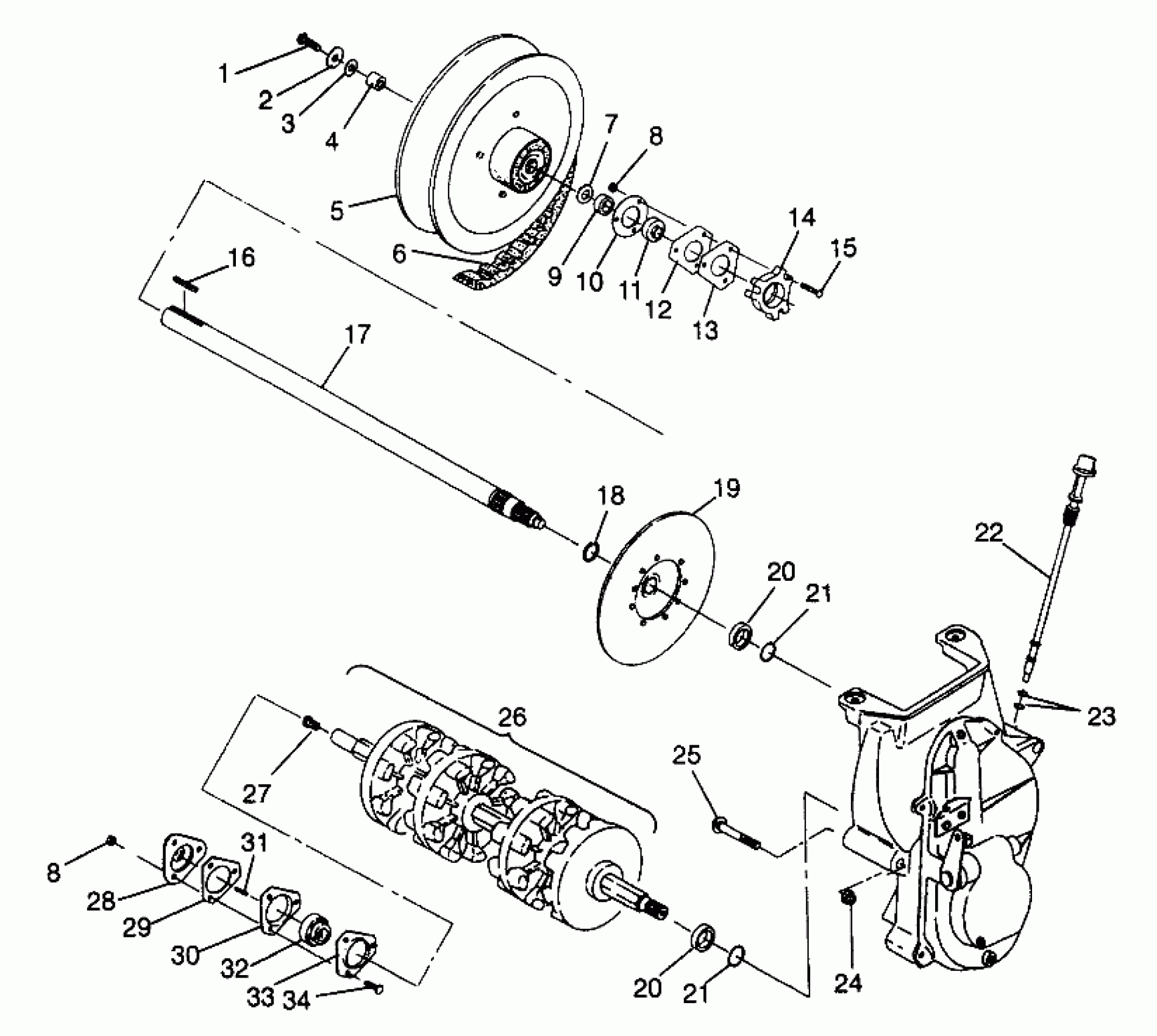

Polaris ULTRA TOURING - 0975378 DRIVE TRAIN ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813B013) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
Spacer
5020913
Unavailable
5
Asm., Driven Clutch (See Pg. A35, Ref. 15)
-------
Unavailable
6
BELT,DRIVE(5)
3211066
$109.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
NUT-5/16-18 NYLOK-Y
7542324
$1.49
8
NUT-5/16-18 NYLOK-Y
7542324
$1.49
9
Spacer
5020837
$24.99
10
FITTING,LUB/VEN(10)
7080561
$4.79
10
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
11
BEARING,1"X52MM,SPHER.
3514523
Unavailable
12
GASKET,JACKSHAFT,BLK.
5811095
$2.41
13
FLANGETTE
5222751
$16.44
14
SPACER,BRG,JACKSHAFT
5131443
$40.79
15
SCREW ,(10)
7517239
Unavailable
16
KEY-SQUARE(10)
7721204
$3.19
17
JACKSHAFT ASM,LONG,.63 Substituted by 2201117 (Incl. 18)
1332189
Unavailable
18
RING, RETAINING(10)
7710422
$3.99
19
DISC ASM, BRAKE
1910086
Unavailable
20
SLEEVE, SEAL
5020588
$23.99
20
SLEEVE, SEAL
5020588
$23.99
21
O RING,(10)
5410613
$1.99
21
O RING,(10)
5410613
$1.99
22
DIPSTICK Substituted by 1332143
5431419
Unavailable
23
O-RING
5410675
$1.60
24
NUT(10)
7542423
$3.99
25
BOLT(10)
7515428
$4.79
26
DRIVESHAFT ASM,HD,PRESS BRG Substituted by 1590258 (Incl. 27)
1590253
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
29
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
30
FLANGETTE Substituted by 5243529
5241178
$13.75
31
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
32
BEARING,1"X52MM,SPHER.
3514524
Unavailable
33
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
34
BOLT(10)
7512331
$3.99
