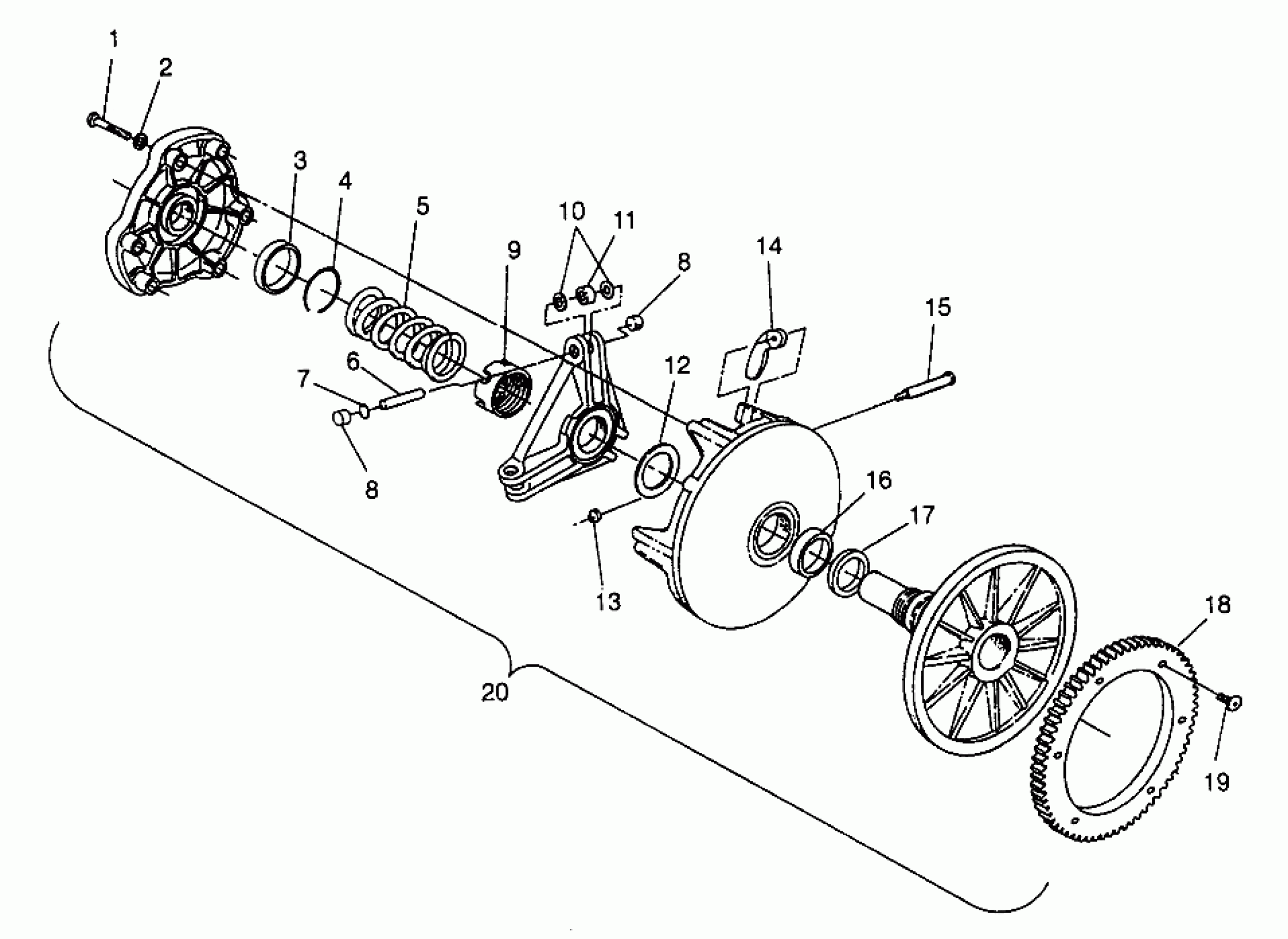

Polaris ULTRA TOURING - 0975378 DRIVE CLUTCH ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813C005) Diagram

Description

Price

KIT,CLUTCH UPDATE (Incl. 6-8, 10, 11, 15)

2200386

$161.89

BOLT,(10)

7512265

$3.99

LOCK WASHER(10)

7552801

$1.59

COVER,BEARING,GARMAX

3576516

$28.32

RING-RETAINING,COVER

7710417

$1.49

SPRING,(DK.BLU) Substituted by 7041781 (Dark Blue)

7041526

$56.65

PIN-ROLLER

5020422

$2.39

Kit - Shim, Drive Clutch

2200387

$24.27

BUTTON, GUIDE,(10)

5430445

$6.39

BUTTON, GUIDE,(10)

5430445

$6.39

NUT-JAM

5020425

$23.99

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321457

$40.46

SPACER(10) (.050mm)

5210754

Unavailable

SPACER(10) (.020mm)

5210752

Unavailable

SPACER(10) (.032mm)

5210753

Unavailable

NUT FLEX LOC(10)

7541906

$3.19

WT/BUSH.ASM,10-54(3) (Bushed)

1321685

$40.46

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

SLEEVE, BEARING

3576502

$23.99

INSERT-MOVEABLE

5010188

$7.99

GEAR-RING

5131062

Unavailable

BOLT,RING GEAR(10)

7515351

$3.99

CLUTCH,BASIC#75(DRIVE) Substituted by 1321734 (Less 5, 14)

1321715

Unavailable
