CHAINCASE ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813B012)

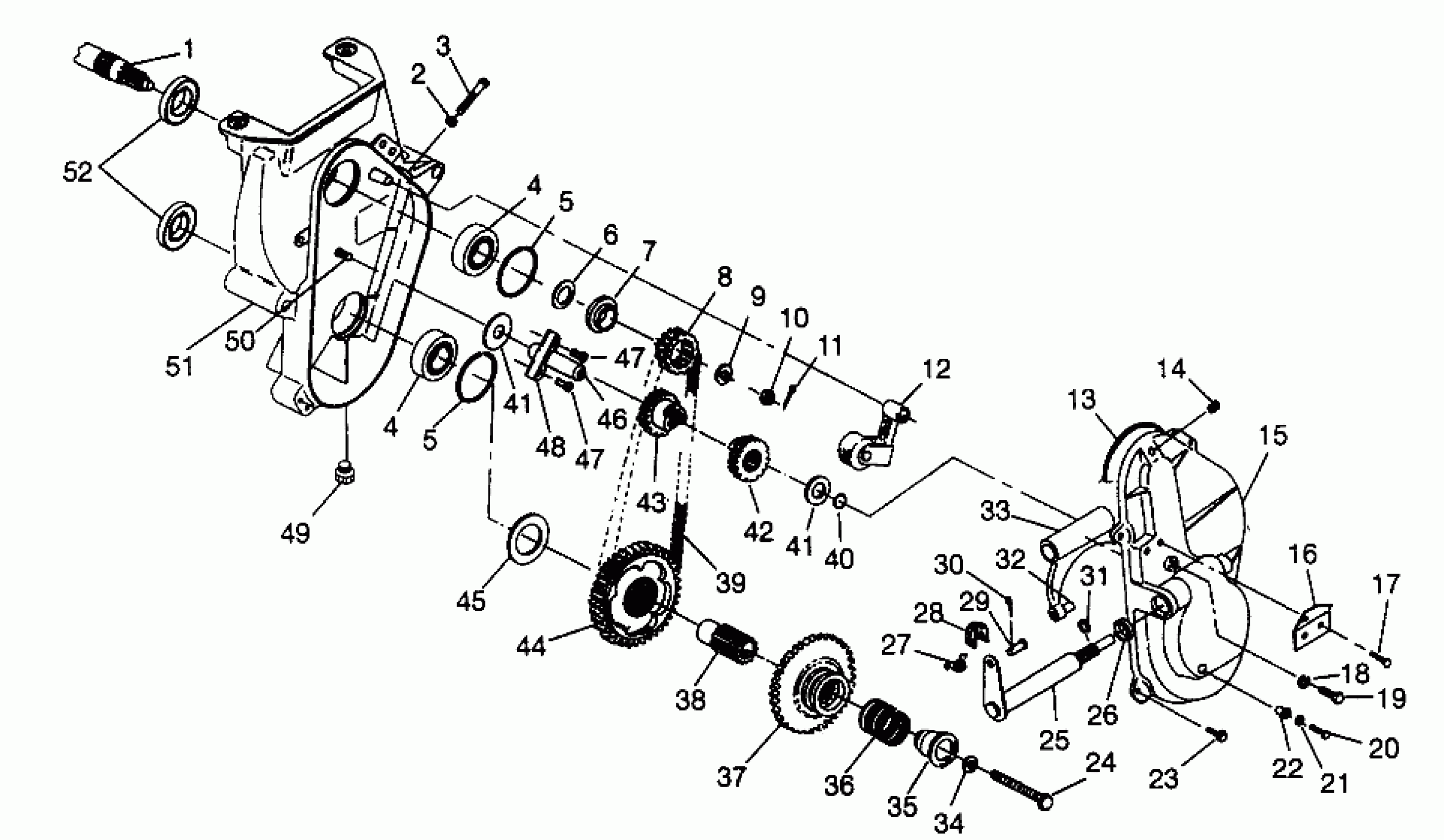

Polaris ULTRA TOURING - 0975378 CHAINCASE ULTRA TOURING 0975378 and EUROPEAN ULTRA TOURING E975378 (4938133813B012) Diagram
#
1
Asm., Jackshaft (See Page, Ref.)
-------
Unavailable
2
NUT(10)
7542404
$1.59
3
SCREW(10)
7515551
$6.39
4
BEARING
3514308
Unavailable
4
BEARING
3514308
Unavailable
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
WASHER(10)
7555917
$2.39
7
SPACER,SPROCKET
5010359
Unavailable
8
SPKT,20T,(13W),15T SPLINE
3221061
Unavailable
9
WASHER, SLOTTED(10)
7571620
$7.19
10
NUT
7542811
Unavailable
11
COTTER PIN(10)
7661401
$1.49
12
PIN,CHAIN TIGHTENER
7662210
Unavailable
12
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
12
BEARING
3553002
$11.99
12
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
12
WHEEL,C/C IDLER
5630123
Unavailable
12
WASHER THRUST(10)
7558702
$1.59
13
GASKET-CHAINCASE
5410277
$24.99
14
PLUG(10)
7051520
$8.79
15
COVER,CH.CS,REV.MACH. Substituted by 5131753
5131172
Unavailable
16
BRKT,CABLE MOUNT
5222502-067
Unavailable
17
SCREW(10)
7512252
Unavailable
18
WASHER WROUGHT(10)
7558403
$4.79
19
SCREW(10)
7512492
$1.49
20
SCREW(10)
7511909
$3.99
21
WASHER, FLAT(10)
7558201
$5.79
22
NUT-WELL(10)
7541918
Unavailable
23
SCREW(10)
7512242
$2.39
24
SCREW, NYLOK(10)
7515348
$4.79
25
SHAFT, SHIFT
1341093-067
$29.37
26
Seal, Oil
3610029
$8.89
27
SPRING,REV.CABLE TENSION
7042044
Unavailable
28
CLEVIS
5222606
Unavailable
29
PIN, CLEVIS(10)
7661830
$3.99
30
PIN-COTTER(10)
7661205
$1.49
31
RING, RETAINER(10)
7710415
$3.99
32
PIN, SHIFT FORK(10)
7661826
$5.65
33
KIT,SHIFT FORK/SHAFT (Incl. 25, 32)
2200363
Unavailable
33
Fork, Shift
5130805
Unavailable
34
LOCK WASHER(10)
7552901
$1.49
35
RETAINER,DRIVE COUPLER
5130727
Unavailable
36
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
37
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
38
Coupler, Drive
5130720
Unavailable
39
CHAIN,64P,(13W),SILENT (13W)
3224052
Unavailable
40
O RING
5410589
$4.99
41
WASHER,THRUST(10)
7555877
$3.99
41
WASHER,THRUST(10)
7555877
$3.99
42
GEAR,SPUR PINION
1341075
$149.99
43
GEAR ASM, PINION
1341076
Unavailable
44
KIT,REV.GEAR'E' (13W)
1341110
Unavailable
45
WASHER, REVERSE(10)
7555871
$5.59
46
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
47
SCREW(10)
7512019
$3.99
47
SCREW(10)
7512019
$3.99
48
BRKT,CHAIN RETENTION
5222298
Unavailable
49
PLUG(10)
7052115
$5.65
50
BOLT(10)
7515477
$34.99
51
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
52
SEAL-OIL
3610030
$20.22
