PISTON and CRANKSHAFT - H975678 (4939533953C014)

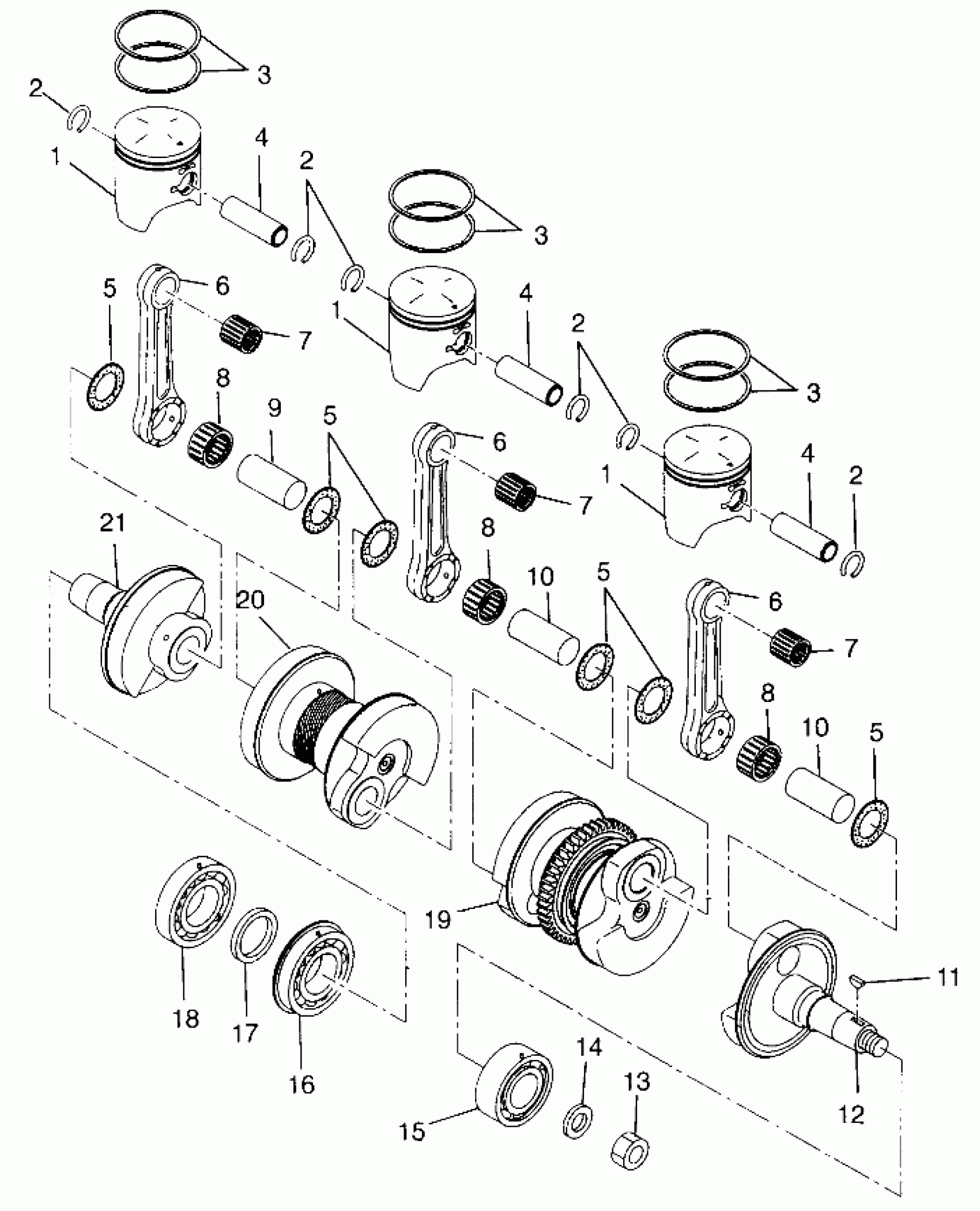

Polaris ULTRA SPX - 0975678 PISTON and CRANKSHAFT - H975678 (4939533953C014) Diagram
#
1
PISTON
3085262
$138.08
1
PISTON
3085262
$138.08
1
PISTON
3085262
$138.08
2
CLIP,(10)
3084167
$6.39
2
CLIP,(10)
3084167
$6.39
2
CLIP,(10)
3084167
$6.39
2
CLIP,(10)
3084167
$6.39
3
RING, PISTON
3085132
Unavailable
3
RING, PISTON
3085132
Unavailable
3
RING, PISTON
3085132
Unavailable
4
PIN, PISTON
3085483
Unavailable
4
PIN, PISTON
3085483
Unavailable
4
PIN, PISTON
3085483
Unavailable
5
Spacer
3083804
$19.99
5
Spacer
3083804
$19.99
5
Spacer
3083804
$19.99
5
Spacer
3083804
$19.99
6
ROD,CONNECTING
3085256
Unavailable
6
ROD,CONNECTING
3085256
Unavailable
6
ROD,CONNECTING
3085256
Unavailable
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
8
BEARING,LARGE END
3085257
$35.99
8
BEARING,LARGE END
3085257
$35.99
8
BEARING,LARGE END
3085257
$35.99
9
PIN,CRANK #2 (58.5mm)
3085259
Unavailable
10
PIN,CRANK #1 (51mm)
3085258
Unavailable
10
PIN,CRANK #1 (51mm)
3085258
Unavailable
11
KEY Substituted by 3081543
3080130
Unavailable
12
CRANKSHAFT #1
3085251
$329.99
12
CRANKSHAFT ASM,3-CYL. (Incl. 5,6,8-10,12,15-21)
3085481
$1,329.99
13
NUT
3083093
$19.99
14
Washer
3084457
Unavailable
15
BEARING, BALL
3085260
Unavailable
16
BALLBEARING Substituted by 3085753
3085125
Unavailable
17
Spacer
3085261
Unavailable
18
BEARING,BALL
3085545
$59.99
19
CRANKSHAFT,CTR. (Incl. 5,6,8-10,19,20)
3085472
$995.03
19
CRANKSHAFT,MAG SIDE (Incl. 10)
3085473
$559.99
20
CRANKSHAFT,PTO (Incl. 9)
3085254
Unavailable
21
CRANKSHAFT #3
3085482
Unavailable
