OIL TANK / AIR BOX - H975678 (4939533953C005)

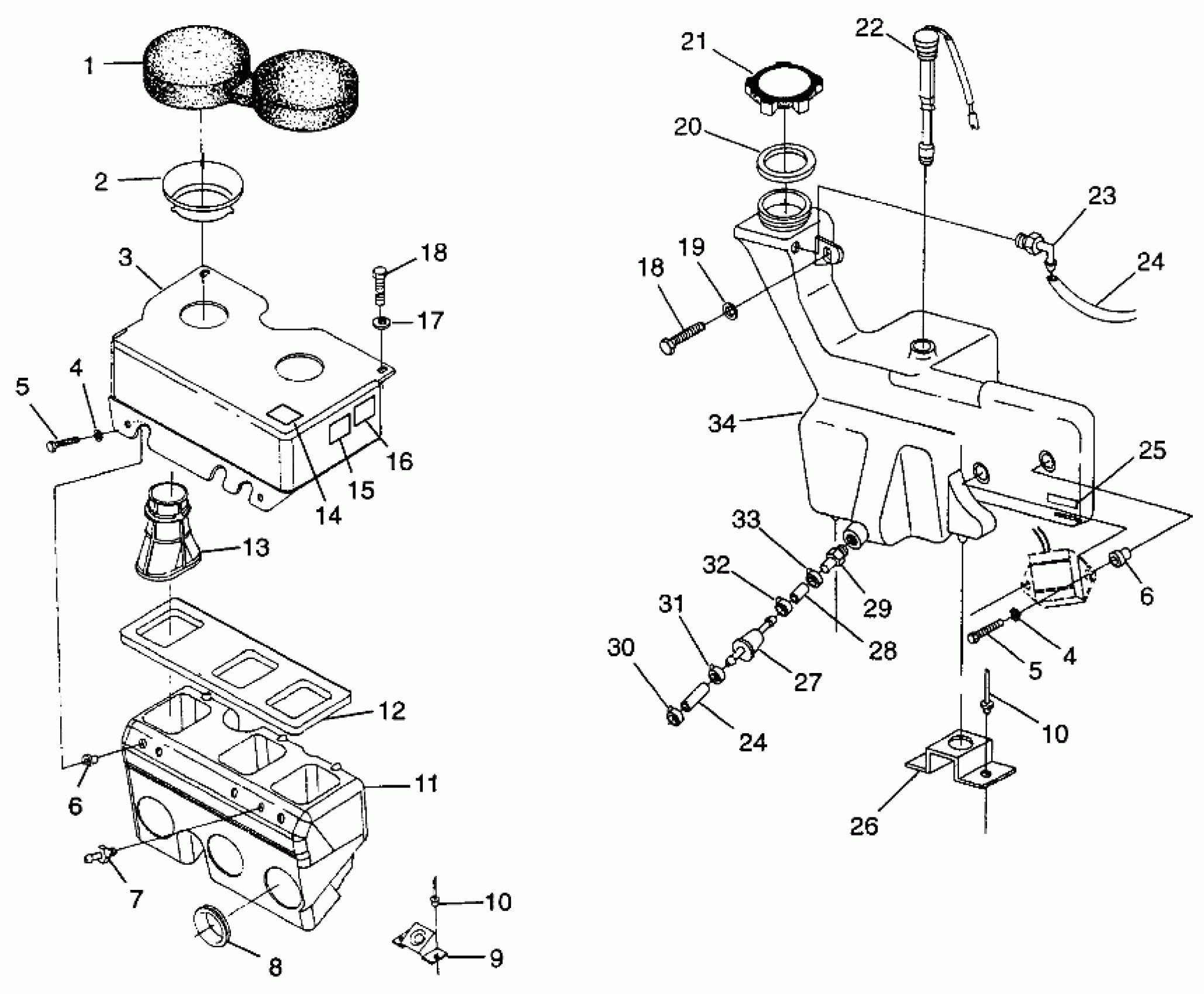

Polaris ULTRA SPX - 0975678 OIL TANK / AIR BOX - H975678 (4939533953C005) Diagram
#
Description
Price
1
FOAM ASM,INTAKE,AGR
1253176
Unavailable
2
INLET,PLENUM
5410834
Unavailable
3
PLENUM,SILENCER,(680 AGR)
5432540
Unavailable
4
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
4
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
5
SCREW(10)
7512279
$1.49
5
SCREW(10)
7512279
$1.49
6
NUT-WELL(10)
7541923
$5.59
6
NUT-WELL(10)
7541923
$5.59
7
FITTING,HOSE(10)
7052127
$3.19
8
Boot
5410271
Unavailable
9
BRKT.OIL TANK,
5241322
Unavailable
10
RIVET-3/16-.090-.290
7661637
$1.49
10
RIVET-3/16-.090-.290
7661637
$1.49
11
BOTTOM,AIRBOX,INT.VENT(680)
5432127
Unavailable
12
SEAL,PLENUM
5810946
Unavailable
13
BOOT,CONE SILENCER,OUTLET
5411047
Unavailable
14
DECAL,CAUTION,AIRBOX
7075351
Unavailable
15
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
16
DECAL, GREASING [No Longer Available]
7073426
$7.27
17
WASHER(10)
7555960
$3.99
18
BOLT(10)
7512276
$4.79
18
BOLT(10)
7512276
$4.79
19
WASHER(10)
7558301
$1.49
20
GASKET-OIL CAP
5810141
$2.39
21
CAP,OIL TANK
5430779
$14.56
22
SENSOR,OIL LEVEL
4110134
$72.84
23
FITTING,90 DEG,1/8,(10)
7052095
$4.79
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
DECAL,LOW OIL LEVEL
7074664
Unavailable
26
BRKT,OILTANK,COINED
5241330
$2.15
27
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
28
LINE,OIL,FORMED
5410902
Unavailable
29
FITTING,3/8 OUTLET
7052110
Unavailable
30
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
31
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
32
HOSE CLAMP, RED (Red)
7080003
$1.49
33
CLAMP,HOSE(10)
7080544
Unavailable
34
TANK,OIL,W/SEND.UNITHOLE Substituted by 2201101
5432472
Unavailable
