NOSEPAN ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX SE E (4939533953A008)

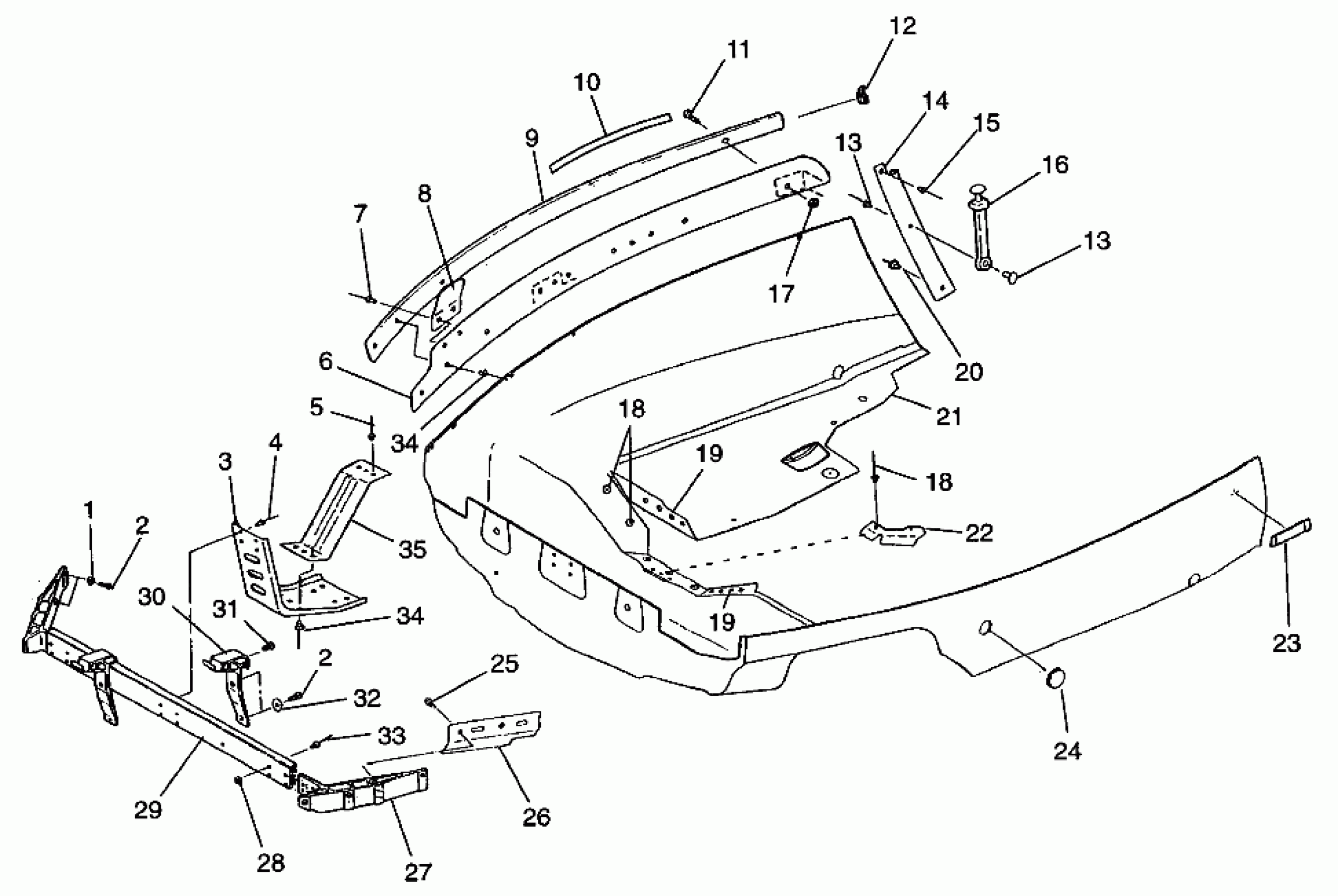

Polaris ULTRA SPX - 0975678 NOSEPAN ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX SE E (4939533953A008) Diagram
#
1
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
2
SCREW(10)
7515177
$3.19
2
SCREW(10)
7515177
$3.19
3
SUPPORT,UP.PAN BRACE
5240698
$49.59
4
RIVET,(50)
7621484
Unavailable
5
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
6
GUIDE,LH,HOOD
5240785
$74.39
6
GUIDE,RH,HOOD
5240786
Unavailable
7
RIVET(50)
7621318
$1.49
8
GUIDE, HOOD
5220984
Unavailable
9
BUMPER ASM, RH
2670163
$45.59
9
BUMPER ASM,LH,EXT.
2670162
Unavailable
10
BUMPER,SIDE STRIP,VINYL Substituted by 5811264-070
5811264
Unavailable
11
SCREW(10)
7515166
$3.19
12
CAP,LH,BUMPER END
5431913
$1.67
12
CAP,RH,BUMPER END
5431914
Unavailable
13
RIVET,(50)
7621601
Unavailable
13
RIVET,(50)
7621601
Unavailable
14
TRIM,LH,REARPAN
5224590-067
$19.03
14
TRIM,RH,REARPAN
5224591-067
$18.23
15
RIVET(50)
7621433
$1.49
16
STRAP, HOOD LATCH
5410370
$24.27
17
NUT(10)
7542153
$1.59
18
RIVET, BLIND(50)
7621467
$1.49
18
RIVET, BLIND(50)
7621467
$1.49
19
POP RIVET(50)
7621418
$1.49
20
RIVET(50)
7621472
$1.49
21
NOSEPAN,BLK.
5431779-067
Unavailable
22
SHIELD,HEAT
5242029
$6.21
23
REFLECTOR AMBER
2670071
Unavailable
24
PLUG
5410344
$5.65
25
SCREW(10)
7512017
$4.79
26
SHIELD,HEAT
5241326
$7.43
27
BRACE ASM,LH.CORNER
2670165
$69.51
27
BRACE ASM,RH.CORNER
2670166
$61.89
28
NUT-LOCK(10)
7542122
$1.49
29
BRACE,PAN,DRILLED
5131070
$45.39
30
HINGE ASM,LOWER
2670167
Unavailable
31
SCREW,(10)
7512024
$4.79
32
WASHER(10)
7558221
$2.39
33
RIVET,(50)
7621507
$2.23
34
RIVET-3/16-.090-.290
7661637
$1.49
34
RIVET-3/16-.090-.290
7661637
$1.49
35
BRACE,NOSEPAN,BLK Substituted by 5242763-067
5241820-067
Unavailable
